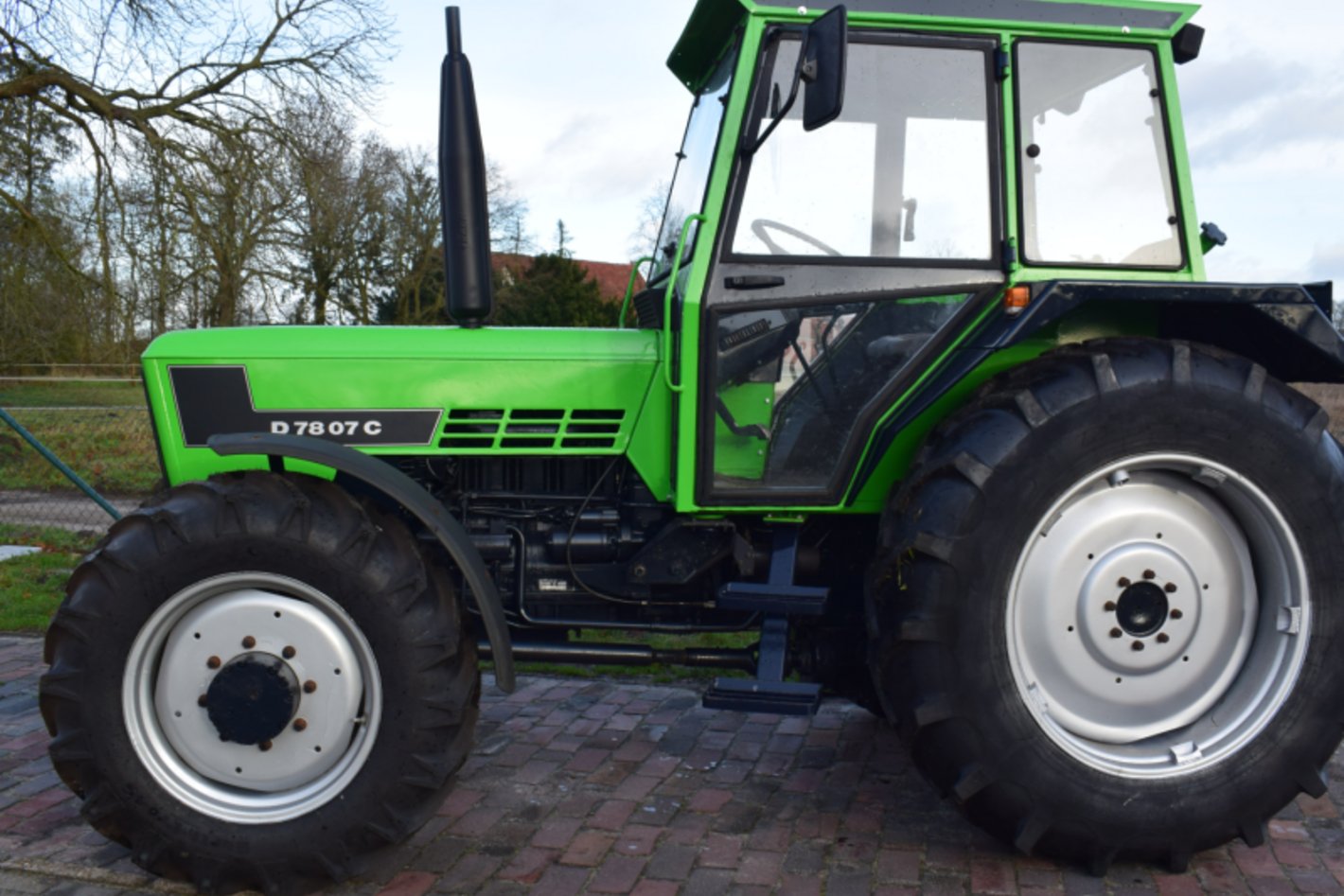

Deutz / Deutz Fahr D 7807 (C)
Built: 1980 (C: 1981)–1984 · Series: D-07
More machines from model year 1980
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr D 7807: air-cooled four-cylinder standard tractor of the 07 range with 4,086 cm³ displacement, 75 hp (55 kW) and 3,000 kg weight
Deutz-Fahr was formed from the merger of the Cologne engine maker Deutz with the Fahr tractor brand, building field tractors for the European market under this joint name. The D 7807 belongs to the 07 range, which covered the manufacturer's mid-range output segment.
Read on 3 more paragraphs
The four-cylinder diesel engine with 4,086 cm³ displacement is air-cooled and produces 75 hp, or 55 kW, at 2,300 rpm. At 3,000 kg weight, 4,020 mm length, 1,990 mm width and 2,540 mm height, the D 7807 ranks among the medium-weight standard tractors for field and yard work.
A top speed of 25 km/h places the D 7807 in driving licence category L (up to 40 km/h). The air-cooled four-cylinder engine needs no cooling water, radiator or water pump, making it mechanically robust against frost and against overheating from coolant loss. Its 75 hp output suffices for tillage, transport and the usual implements of medium-sized holdings.
When buying a D 7807, check the cooling-air ducting and the cylinder-head fins, since bent baffle plates worsen cooling of the four-cylinder engine. Also check the clutch, gearbox and the tightness of the hydraulic system, as well as the general rust condition of the wings and bonnet, which is common for tractors of this age. The air intake and exhaust manifold are worth a look too, since blocked airflow quickly overheats an air-cooled engine under load.
Sources: SpecCodex-Register: Kennwerte des Modells Deutz-Fahr D 7807, Deutz-Fahr (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 75 hp (55 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,086 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,020 mmcorrect |
|---|---|
| Width | 1,990 mmcorrect |
| Height | 2,540 mmcorrect |
| Wheelbase | 2,414 mmcorrect |
| Ground clearance | 580 mmcorrect |
| Unladen weight | 3,000 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12V / 4Rcorrect |
| Front tyres | 7.50-20 ASF (A: 12.4-24 AS)correct |
| Rear tyres | 16.9-34 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 18.3 kW/t (55 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 51% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz / Deutz Fahr D 7807 (C) have?
The Deutz / Deutz Fahr D 7807 (C) delivers 75 hp.
How much does the Deutz / Deutz Fahr D 7807 (C) weigh?
The unladen weight is 3,000 kg.
What engine does the Deutz / Deutz Fahr D 7807 (C) have?
4 cylinders, 4,086 cm³ displacement, Diesel.
How fast does the Deutz / Deutz Fahr D 7807 (C) go?
Top speed is 25 km/h.
What are the dimensions of the Deutz / Deutz Fahr D 7807 (C)?
4,020 mm × 1,990 mm × 2,540 mm.
When was the Deutz / Deutz Fahr D 7807 (C) built?
Production years: 1980 (C: 1981)–1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
