Deutz Allis DX 4.70
Built: 1984–1986 · Series: DX 4-Reihe
More machines from model year 1984
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

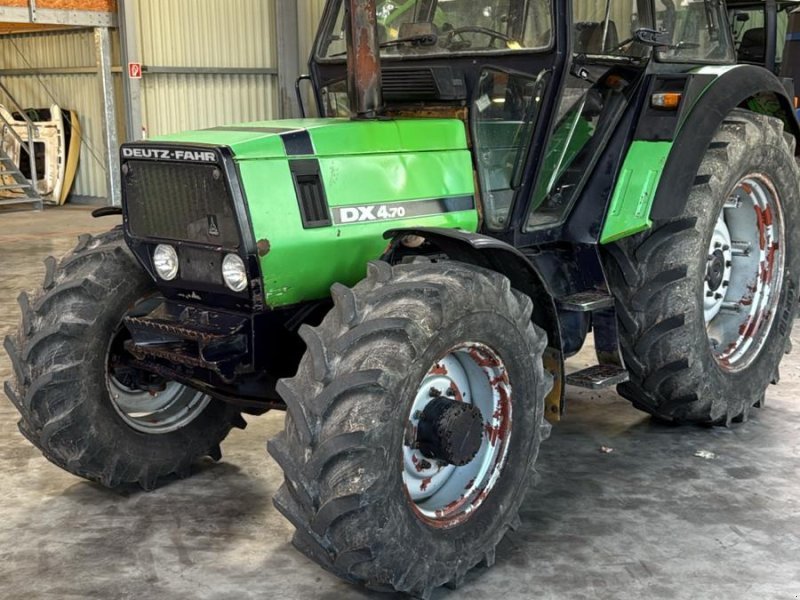

Deutz Allis DX 4.70: air-cooled four-cylinder standard tractor of the DX-4 range with 4,086 cm³ displacement, 90 hp (65.9 kW) and 3,850 kg weight
Deutz Allis was the joint brand under which the Cologne engine maker Deutz and the American manufacturer Allis-Chalmers offered tractors for the North American market in the 1980s. The DX 4.70 belongs to the DX-4 range, the mid output segment of this cooperation.
Read on 3 more paragraphs
The four-cylinder diesel engine with 4,086 cm³ displacement is air-cooled and produces 90 hp, or 65.9 kW, at 2,300 rpm, with torque of 320 Nm. At 3,850 kg weight, 4,170 mm length, 2,304 mm width and 2,640 mm height, the DX 4.70 ranks among the more powerful four-cylinder standard tractors of its class.
A top speed of 30 km/h places the DX 4.70 in driving licence category L (up to 40 km/h). The air-cooled four-cylinder engine with 320 Nm of torque is built for tillage with larger cultivators and ploughs and for transport work with trailers, as was typical in North American arable farming.
When buying a DX 4.70, check the condition of the cooling-air ducting on the four-cylinder engine, as Deutz Allis tractors of these years depend on a properly working cooling fan. Also check the clutch and gearbox under high drawbar load, the hydraulic pump, and the availability of spare parts, which is more limited since the end of the Deutz Allis brand than for current ranges. The condition of the exhaust manifold and air intake screen is also worth checking, since restricted airflow overheats an air-cooled four-cylinder quickly under load.
Sources: SpecCodex-Register: Kennwerte des Modells Deutz Allis DX 4.70
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 90 hp (65.9 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 320 Nmcorrect |
| Speed at max. torque | 1,703 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,086 cm³correct |
| Bore | 102 mmcorrect |
| Stroke | 125 mmcorrect |
| Compression ratio | 15.5correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,170 mmcorrect |
|---|---|
| Width | 2,304 mmcorrect |
| Height | 2,640 mmcorrect |
| Wheelbase | 2,330 mmcorrect |
| Ground clearance | 530 mmcorrect |
| Unladen weight | 3,850 kgcorrect |
Drivetrain and chassis
| Drive | rear- and four-wheel drivecorrect |
|---|---|
| Gearbox | 15 V/5 Rcorrect |
| Forward gears | 15correct |
| Reverse gears | 5correct |
| Front tyres | 11.00-16 ASF (4 WD: 14.9 R 24 AS)correct |
| Rear tyres | 16.9 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 125 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 17.1 kW/t (66 kW / 3.9 t)
Power class: Universal (40–100 hp)
Stronger than 60% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz Allis DX 4.70 have?
The Deutz Allis DX 4.70 delivers 90 hp.
How much does the Deutz Allis DX 4.70 weigh?
The unladen weight is 3,850 kg.
What engine does the Deutz Allis DX 4.70 have?
4 cylinders, 4,086 cm³ displacement, Diesel.
How fast does the Deutz Allis DX 4.70 go?
Top speed is 30 km/h.
What are the dimensions of the Deutz Allis DX 4.70?
4,170 mm × 2,304 mm × 2,640 mm.
When was the Deutz Allis DX 4.70 built?
Production years: 1984–1986.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
