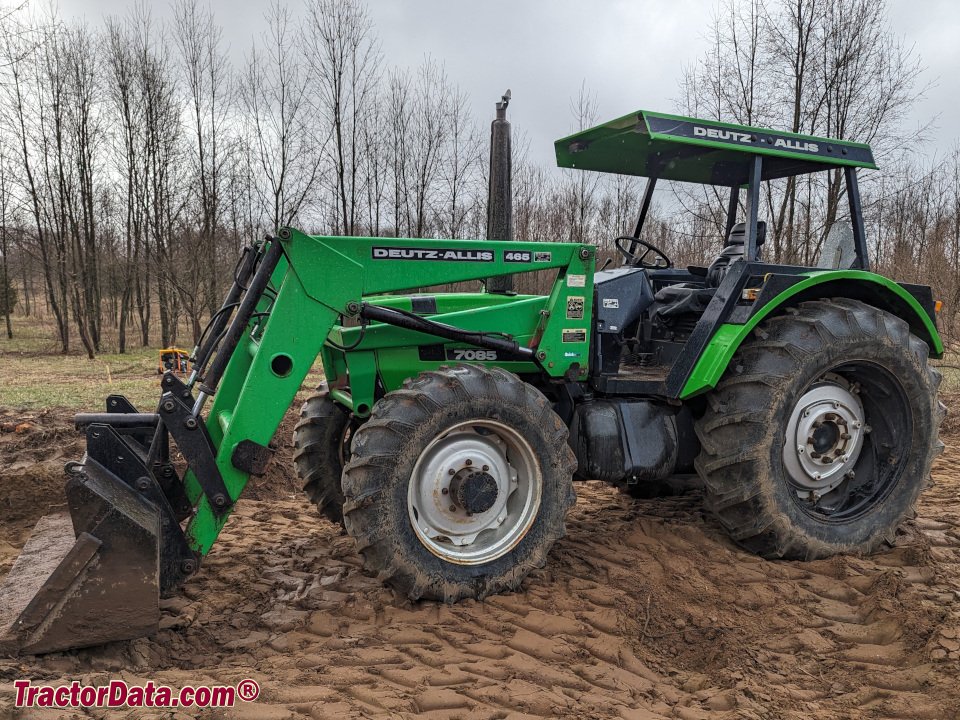

Deutz Allis 7085

Built: 1986–1990 · Series: 7.100 er- Serie

More machines from model year 1986

Source: http://tractordata.com/farm-tractors/003/1/6/3169-deutz-alli

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Deutz Allis 7085 is a model in the 7100er series. Production: 1986–1990. The engine delivers 89 hp (65.4 kW), has 4 cylinders, with a displacement of 4,086 cm³. The engine comes from Deutz. Torque is 320 Nm. Rated speed is 2,300 rpm. The machine is 4,178 mm long, 2,299 mm wide and 2,642 mm high. The unladen weight is 3,840 kg. The wheelbase measures 2,337 mm. Ground clearance is 455 mm. Top speed is 30 km/h. The tank holds 117 litres. Transmission: 15 V/5 R or 20 V/5 R. The engine is air-cooled. Tyres: front 10.00-16 ASF (4 WD: 13.6-24 AS), rear 18.4 R 34 AS. The model was built in Germany. The fuel is diesel. The bore measures 102 mm. The stroke is 125 mm. The compression ratio is 15.5:1. Maximum torque is reached at 1,703 rpm. Construction: unit construction (no separate frame). Injection pressure is 17 bar. The linkage is category II. Its predecessor was the Deutz-Fahr DX 4.70. The PTO runs at 540/1000 rpm. The 7.100 er- Serie series covers 4 models. Rated output within it ranges from 89 to 146 hp; the 7085 sits at the bottom of that range with 89 hp. Its immediate neighbours are the 7110 above it with 112 hp. Unladen weight within it ranges from 3,840 to 5,400 kg; here the 7085 sits at the bottom of that range with 3,840 kg. 36 Deutz Allis models across 10 series are on record.

Deutz-Allis 7100 series – mid power class of the US brand active 1985 to 1990: Deutz engines, 65 to 107 kW, 7085 to 7145 models, transition to AGCO Allis

The Deutz-Allis 7100 series formed the mid power class of the American brand that produced tractors with Deutz engines from 1985 to 1990, built partly at Deutz-Fahr's plant in Lauingen and partly at White. The register covers the 7085, 7110, 7120 and 7145 models with four- to six-cylinder diesel engines.

Read on 3 more paragraphs

The register holds 4 versions rated at 65.4 to 107.4 kW (85 to 144 hp), with engines of 4,086 to 6,128 cm³ and four to six cylinders. Weights range from 3,840 to 5,400 kg, lengths from 4,178 to 4,770 mm, widths from 2,299 to 2,370 mm and heights from 2,642 to 2,789 mm. Torque falls between 320 and 523 Nm at 2,300 to 2,400 rpm.

The 7100 series targeted medium-sized arable farms, covering with models from 85 to 144 hp the segment between the smaller 6000s and the larger 8000s. When the brand ended in 1990, the models carried on under the successor brand AGCO Allis.

When buying used, check the engine and injection system, clutch and gearbox, and rust on the panels and mudguards. Spare parts availability is more limited than for current ranges, given the brand's short existence; parts mostly come through dealers specialising in Deutz-Fahr and Allis-Chalmers. Given the brand's short production run, it is also worth matching the serial number and data plate against available parts catalogues.

Sources: SpecCodex register, model data: Deutz Allis 7.100 er-Serie

Technical data

Engine

Engine make	Deutzcorrect
Fuel	dieselcorrect
Power	89 hp (65.4 kW)correct
Rated speed	2,300 rpmcorrect
Torque	320 Nmcorrect
Speed at max. torque	1,703 rpmcorrect
Cylinders	4correct
Displacement	4,086 cm³correct
Bore	102 mmcorrect
Stroke	125 mmcorrect
Compression ratio	15.5correct
Injection pressure	17 barcorrect
Cooling	air-cooledcorrect

Dimensions and weights

Length	4,178 mmcorrect
Width	2,299 mmcorrect
Height	2,642 mmcorrect
Wheelbase	2,337 mmcorrect
Ground clearance	455 mmcorrect
Unladen weight	3,840 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	15 V/5 R or 20 V/5 Rcorrect
Front tyres	10.00-16 ASF (4 WD: 13.6-24 AS)correct
Rear tyres	18.4 R 34 AScorrect
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	117 lcorrect

Origin and approval

Plant	Germanycorrect
Construction	unit construction (no separate frame)correct

Other data

Linkage category	Cat IIcorrect
PTO speed	540/1000 rpmcorrect
Predecessor	Deutz-Fahr DX 4.70correct

Where this model stands

Power-to-weight ratio: 17 kW/t (65 kW / 3.8 t)

Power class: Universal (40–100 hp)

Stronger than 60% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Deutz Allis 7085 have?

The Deutz Allis 7085 delivers 89 hp.

How much does the Deutz Allis 7085 weigh?

The unladen weight is 3,840 kg.

What engine does the Deutz Allis 7085 have?

4 cylinders, 4,086 cm³ displacement, Diesel.

How fast does the Deutz Allis 7085 go?

Top speed is 30 km/h.

What are the dimensions of the Deutz Allis 7085?

4,178 mm × 2,299 mm × 2,642 mm.

When was the Deutz Allis 7085 built?

Production years: 1986–1990.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
