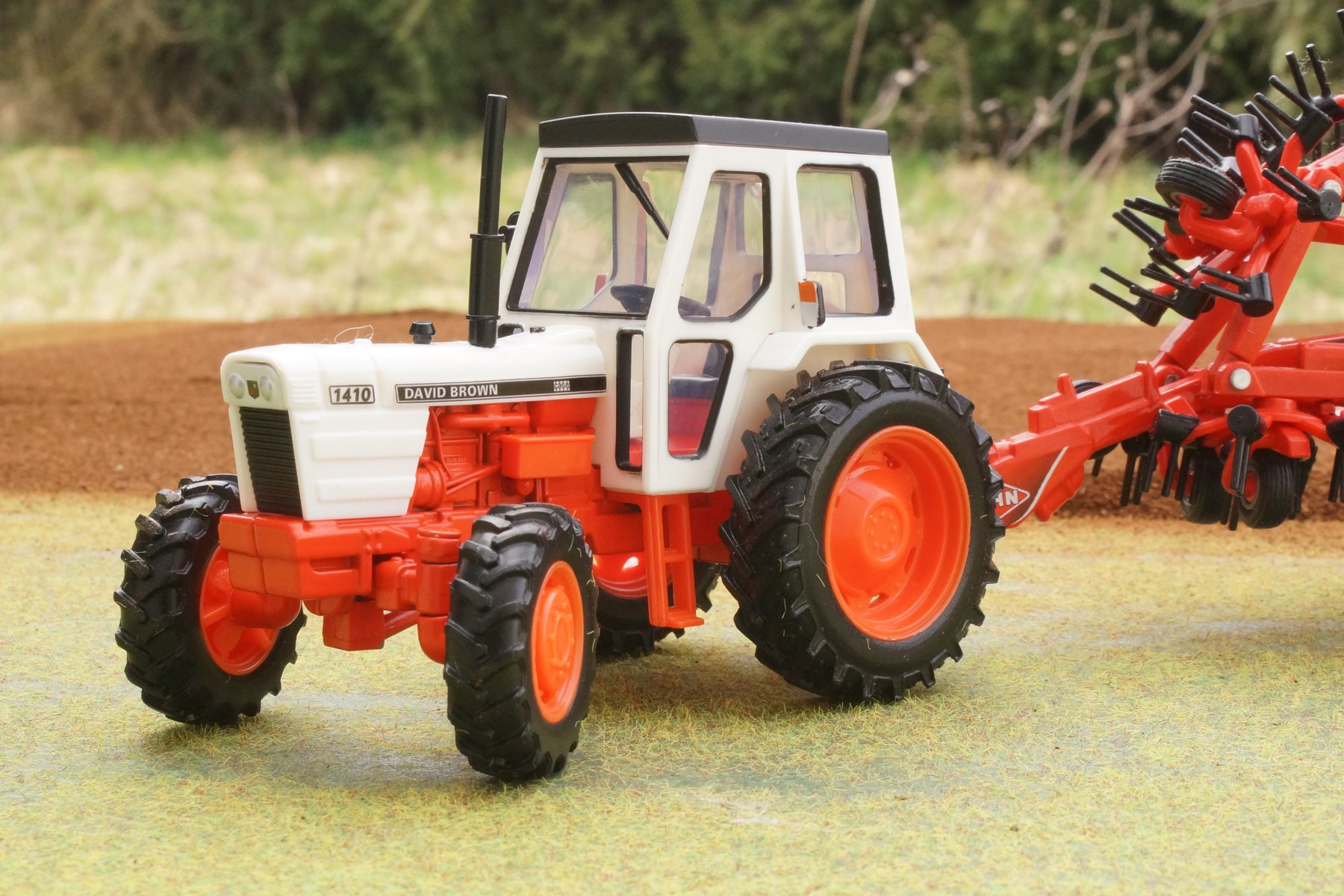

David Brown 1410 (A)

Built: 1974–1980 · Series: SYNCHROMESH-Baureihe

More machines from model year 1974

Source: https://www.profi.de/panorama/landtechnikmodelle/david-brown

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The David Brown 1410 (A) belongs to the SYNCHROMESH series. Production: 1974–1980. The engine delivers 91 hp (66.9 kW), has 4 cylinders, with a displacement of 3,594 cm³. Torque is 304 Nm. Rated speed is 2,300 rpm. The machine is 3,632 mm long, 1,956 mm wide and 2,616 mm high. The unladen weight is 3,265 kg. The wheelbase measures 2,286 mm. Ground clearance is 508 mm. Top speed is 25 km/h. Transmission: 12 V/4 R. The engine is water-cooled. Tyres: front 7.50-16 ASF (A: 11.2-24 AS), rear 18.4-34 AS. The fuel is diesel. The bore measures 100.1 mm. The stroke is 114.3 mm. The compression ratio is 16:1. Maximum torque is reached at 1,600 rpm. Construction: semi-frame construction. The SYNCHROMESH-Baureihe series covers 3 models. Rated output within it ranges from 58 to 91 hp; the 1410 (A) sits at the top of that range with 91 hp. Its immediate neighbours are the 1210 (A) below it with 72 hp. Unladen weight within it ranges from 2,585 to 3,265 kg; here the 1410 (A) sits at the top of that range with 3,265 kg. 147 David Brown models across 19 series are on record.

David Brown Synchromesh range – models 990, 1210 and 1410 from Meltham: four-cylinder diesel from 42.7 to 66.9 kW, 3,194 to 3,627 cm³ displacement and Synchromesh gearbox

David Brown Tractors built its farm tractors at the Meltham plant in West Yorkshire, England. The Synchromesh range takes its name from the gearbox of the same name with synchronised gears, which set the models 990, 1210 and 1410 apart from older David Brown ranges with unsynchronised gearboxes. The numbers in the type designation roughly follow the power class within the range.

Read on 3 more paragraphs

The register lists 3 versions with 42.7 to 66.9 kW rated output at 2,200 to 2,300 rpm. The four-cylinder diesel engines produce between 3,194 and 3,627 cm³ displacement, torque ranges from 206 to 304 Nm. Operating weights lie between 2,585 and 3,265 kg, lengths between 3,302 and 3,632 mm.

The Synchromesh range placed David Brown in the mid to upper power segment of its own model line-up, competing there with British and international rivals such as Ford, Massey Ferguson and International Harvester. The synchronised gearbox eased gear changes under load compared with older designs and was an important selling point at the time.

When buying used, the condition of the clutch and synchro rings in the gearbox rank among the most expensive checks, along with corrosion on wings, brakes and hydraulic lines. Spare parts supply for the Synchromesh range today runs mainly through specialist vintage farm machinery dealers, some of whom also offer remanufactured wear parts.

Sources: SpecCodex register, model data: David Brown Synchromesh-Baureihe

Technical data

Engine

Fuel	dieselcorrect
Power	91 hp (66.9 kW)correct
Rated speed	2,300 rpmcorrect
Torque	304 Nmcorrect
Speed at max. torque	1,600 rpmcorrect
Cylinders	4correct
Displacement	3,594 cm³correct
Bore	100.1 mmcorrect
Stroke	114.3 mmcorrect
Compression ratio	16correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,632 mmcorrect
Width	1,956 mmcorrect
Height	2,616 mmcorrect
Wheelbase	2,286 mmcorrect
Ground clearance	508 mmcorrect
Unladen weight	3,265 kgcorrect

Drivetrain and chassis

Drive	rear- and four-wheel drivecorrect
Gearbox	12 V/4 Rcorrect
Front tyres	7.50-16 ASF (A: 11.2-24 AS)correct
Rear tyres	18.4-34 AScorrect
Top speed	25 km/hcorrect

Origin and approval

Construction	semi-frame constructioncorrect

Where this model stands

Power-to-weight ratio: 20.5 kW/t (67 kW / 3.3 t)

Power class: Universal (40–100 hp)

Stronger than 61% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the David Brown 1410 (A) have?

The David Brown 1410 (A) delivers 91 hp.

How much does the David Brown 1410 (A) weigh?

The unladen weight is 3,265 kg.

What engine does the David Brown 1410 (A) have?

4 cylinders, 3,594 cm³ displacement, Diesel.

How fast does the David Brown 1410 (A) go?

Top speed is 25 km/h.

What are the dimensions of the David Brown 1410 (A)?

3,632 mm × 1,956 mm × 2,616 mm.

When was the David Brown 1410 (A) built?

Production years: 1974–1980.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
