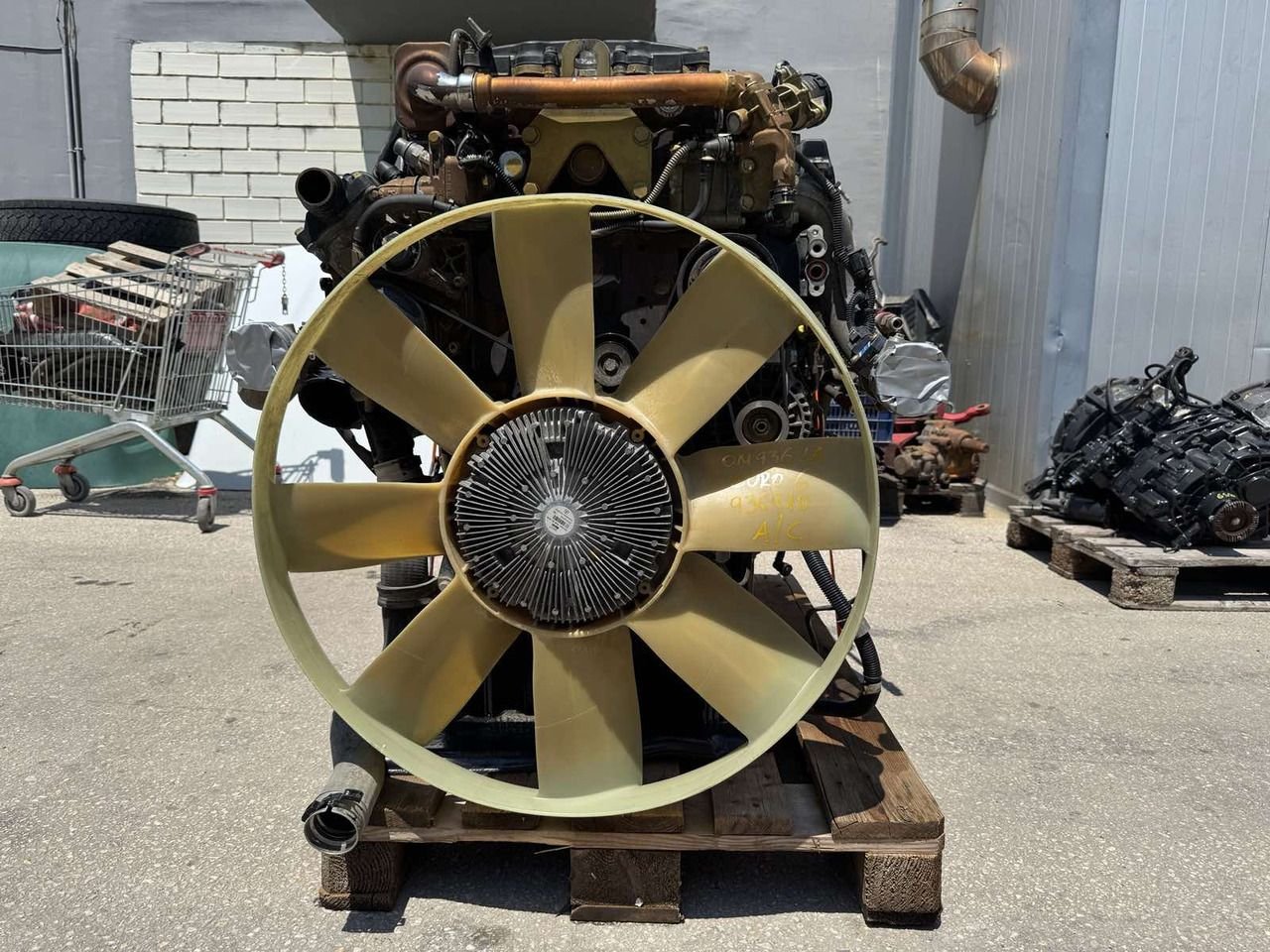

Daimler OM 934 LA
Built: 2022-2026 · Series: OM
More machines from model year 2022
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Mercedes-Benz/Daimler OM 470 to OM 936 LA – nonroad diesel engines from EPA certification: 97 to 380 kW, four- to six-cylinders, Tier 3 to Tier 4 Final, model years 2022 to 2026
The OM 470, 471 and 473 ranges as well as the 924, 926, 934 and 936 are the commercial-vehicle and industrial engines of Mercedes-Benz and Daimler Truck respectively; the bigger OM 470 to OM 473 come from the heavy truck engine range, the smaller OM 924 to OM 936 from the mid-range industrial engine family. This page gathers the versions from the US EPA certification data for nonroad applications that the register did not assign to its own range. The LA suffix marks the turbocharged, charge-air-cooled version, cylinder count follows the build size – four cylinders on the OM 924 and OM 934, six cylinders on the OM 470, 471, 473, 926 and 936.
Read on 3 more paragraphs
The register lists here 7 versions with 97 to 380 kW at rated speeds of 1,600 to 1,800 rpm, from four- to six-cylinders of 106 to 139 mm bore and 135 to 171 mm stroke, maximum torque from 467 to 2,600 Nm at 1,300 to 1,800 rpm, with direct injection and turbocharging mostly of the wastegate type, in model years 2022 to 2026. The emission stages range from Tier 3 to Tier 4 Final or Phase-in.
Mercedes-Benz industrial engines of the OM900 and OM470 families are fitted in construction machinery, agricultural equipment, generator sets and other nonroad applications of numerous equipment makers who draw on the group's shared engine base with its truck ranges; the EPA certification covers both the US market and other distribution areas.
On these industrial engines, operating hours, the condition of the turbocharger and charge-air cooler, the tightness of the injection system and cooling circuit and, depending on the emission stage, the condition of the exhaust aftertreatment count; spares run through the Daimler Truck and Mercedes-Benz industrial-engine network.
Sources: SpecCodex register, model data: Mercedes-Benz/Daimler OM (Nonroad-Dieselmotoren), Daimler Truck (manufacturer)
Technical data
Engine
| Engine code | 934LA.E5-1correct |
|---|---|
| Engine family | SDTAL07.7RJDcorrect |
| Engine families | SDTAL07.7RJD; TDTAL07.7RJD; NDTAL07.7RJD; RDTAL07.7RJD; PDTAL07.7RJDcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 170 kWcorrect |
| Power band | 130<=kW<=560correct |
| Rated speed | 1,800 rpmcorrect |
| Maximum torque | 950 N·mcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 110 mmcorrect |
| Stroke | 135 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | Waste Gate Turbocharger, Waste Gate Turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Version | 934LA.E5-1correct |
|---|---|
| Built from | 2022correct |
| Built to | 2026correct |
| Model year from | 2022correct |
| Model year to | 2026correct |
| Sales region | bothcorrect |
Frequently asked questions
How much power does the Daimler OM 934 LA have?
The Daimler OM 934 LA delivers 170 kW.
When was the Daimler OM 934 LA built?
Production years: 2022-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 27 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: US EPA — engine certification data (retrieved August 2026) · How we check the data
