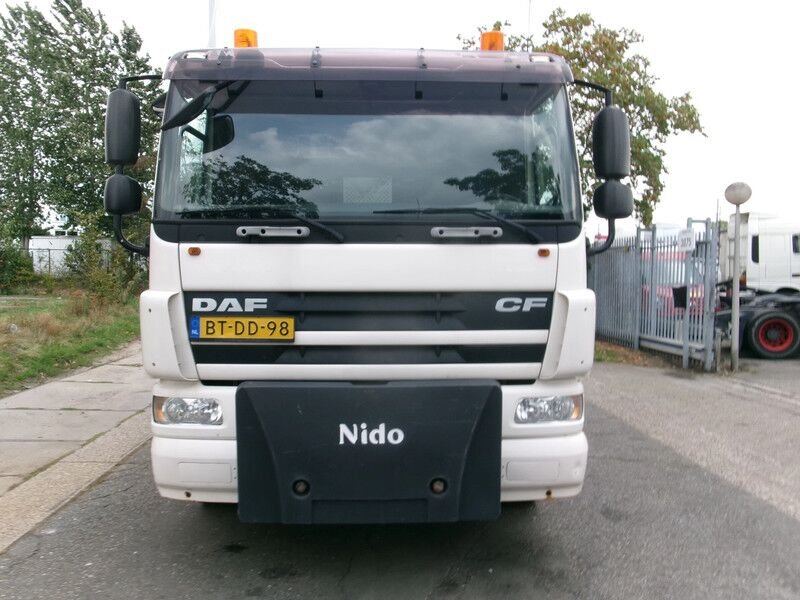

DAF OPRIJCF 22-75 D
Built: 2016 · Series: OPRIJCF
More machines from model year 2016
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
DAF OprijCF – ramp vehicles on the CF chassis for vehicle transport and recovery: OPRIJCF 20-70 to 42-90, six-cylinders, 6,700 to 12,902 cm³, up to 41,500 kg gross weight
Oprij is Dutch for loading ramp; the OPRIJCF chassis are based on DAF's mid-range CF series, which replaced the older 75 and 85 types in 1996, and carry bodies with fold-out ramps for vehicle transport or recovery, where the cargo drives on and off under its own power without a separate crane. The type designations range from OPRIJCF 20-70 S to OPRIJCF 42-90 SVW and show the spread of chassis sizes within the CF range.
Read on 3 more paragraphs
The register lists here 26 versions with six-cylinders throughout of 6,700 to 12,902 cm³ displacement, unladen weights from 8,400 to 12,540 kg, gross weights from 19,500 to 41,500 kg, lengths from 9,650 to 11,750 mm and widths from 2,300 to 2,550 mm.
CF-based ramp vehicles are common above all with car-transport companies, breakdown services and used-vehicle trading, where they move single or several vehicles without a loading crane; the high gross weights at the top of the range point to tractor units for trailer combinations in vehicle transport.
On a used example, the condition and operation of the ramp mechanism (hydraulic cylinders, winches, locks), corrosion on the load bed and frame from frequent driving on and off, the condition of the CF engine and clutch, and the brakes and tyres given the changing axle loads count; parts for chassis and engine run through the DAF network, for the ramp bodies through specialist bodybuilders.
Sources: SpecCodex register, model data: DAF OprijCF, DAF Trucks (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 6,700 cm³correct |
Dimensions and weights
| Length | 9,920 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 5,400 mmcorrect |
| Unladen weight | 8,880 kgcorrect |
| Gross vehicle weight | 21,500 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|
Frequently asked questions
How much does the DAF OPRIJCF 22-75 D weigh?
The unladen weight is 8,880 kg.
What is the gross vehicle weight of the DAF OPRIJCF 22-75 D?
21,500 kg.
What engine does the DAF OPRIJCF 22-75 D have?
6 cylinders, 6,700 cm³ displacement.
What are the dimensions of the DAF OPRIJCF 22-75 D?
9,920 mm × 2,550 mm.
When was the DAF OPRIJCF 22-75 D built?
Production years: 2016.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
