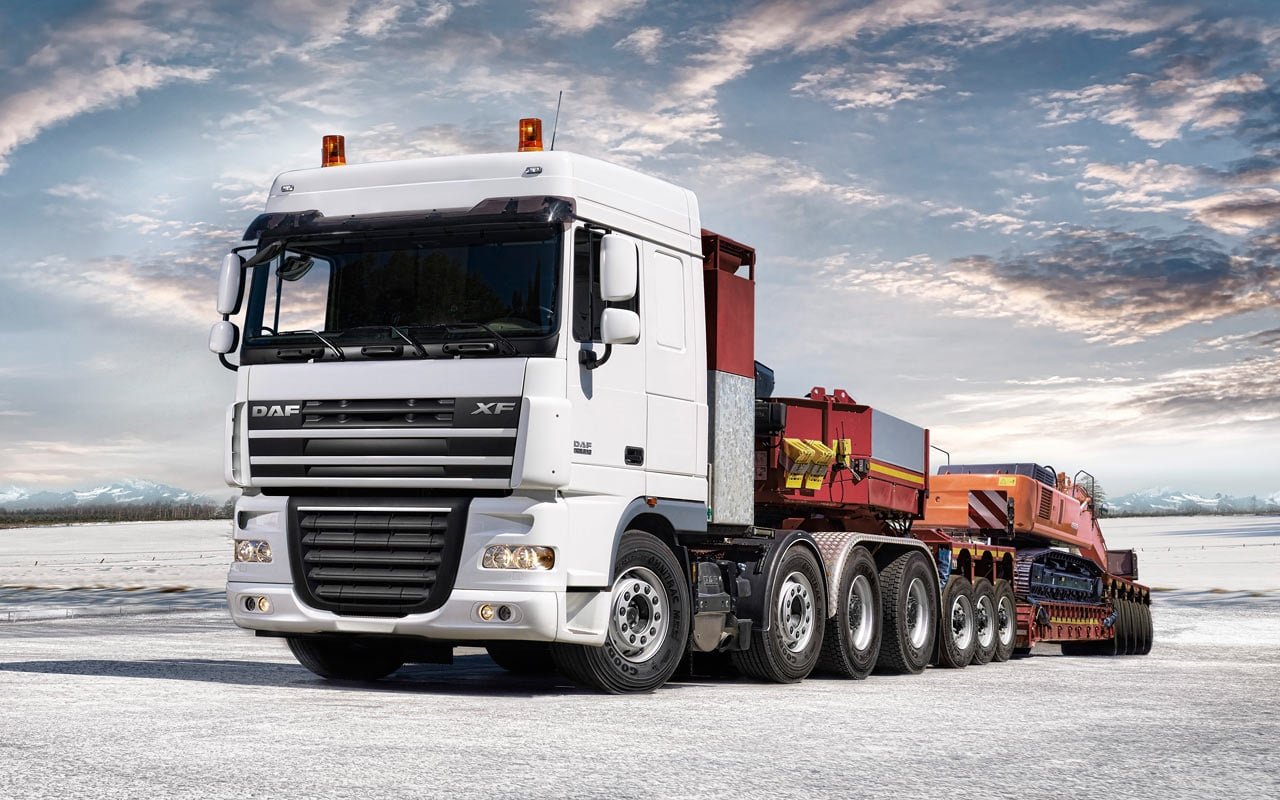

DAF FAR XF105
Built: 2006-2012 · Series: FAR
More machines from model year 2006
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
DAF FAR – the collective page for DAF trucks with the FAR chassis code from the 95 to the XF105 range: six-cylinder engines of 9.2 to 12.9 litres, 265 to 340 kW, low-deck chassis
This page gathers DAF trucks with the factory FAR chassis code. FA denotes a two-axle 4x2 chassis in DAF's own type code, with the attached letters R and T marking an additional axle configuration. The model list ranges from the classic 2100 type through the 95 and 95XF ranges to the more recent CF and XF105 generation; the LD and Low Deck suffixes mark lowered chassis for bodies needing a low load floor, such as those used for coaches or special box bodies.
Read on 3 more paragraphs
The register lists 21 versions here, all with six-cylinder engines of 9,186 to 12,905 cc displacement, unladen weights from 9,750 to 18,480 kg, gross weights from 20,000 to 28,000 kg, lengths from 9,220 to 12,000 mm and widths from 2,500 to 2,600 mm; for part of the models, outputs of 265 to 340 kW.
Alongside Mercedes-Benz, Scania, Volvo, MAN and Iveco, DAF ranks among the major European heavy-truck makers; the FAR chassis in its lowered variant serves chiefly as a base for bodies needing a low entry or load floor, while the standard versions work in classic long-haul transport.
On a used example, the condition of the six-cylinder diesel engines, especially the turbocharger and injection system, the gearbox and clutch, rust on the frame and cab mounts, and the braking system and air suspension all count; on the low-deck chassis, the condition of the lowered frame section too. Spare parts run through the DAF dealer network.
Sources: Kennwerte der Modelle DAF FAR, DAF Trucks (PACCAR, Hersteller)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 12,902 cm³correct |
Dimensions and weights
| Length | 10,750 mmcorrect |
|---|---|
| Width | 2,600 mmcorrect |
| Wheelbase | 6,700 mmcorrect |
| Unladen weight | 18,480 kgcorrect |
| Gross vehicle weight | 28,000 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|---|
| Top speed | 90 km/hcorrect |
Frequently asked questions
How much does the DAF FAR XF105 weigh?
The unladen weight is 18,480 kg.
What is the gross vehicle weight of the DAF FAR XF105?
28,000 kg.
What engine does the DAF FAR XF105 have?
6 cylinders, 12,902 cm³ displacement.
How fast does the DAF FAR XF105 go?
Top speed is 90 km/h.
What are the dimensions of the DAF FAR XF105?
10,750 mm × 2,600 mm.
When was the DAF FAR XF105 built?
Production years: 2006-2012.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
