Cummins ISX12N 320
Built: 2018-2026 · Series: ISX12N
More machines from model year 2018
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

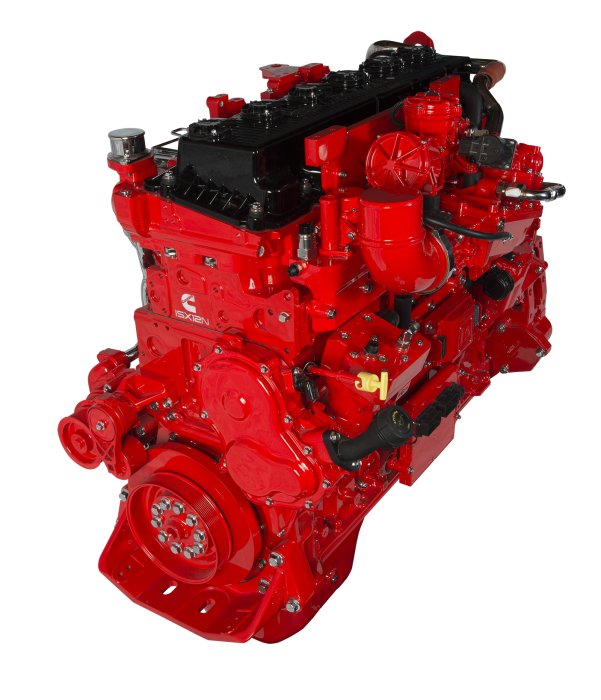

Cummins ISX12N — the Near-Zero-Emission Natural Gas Engine
The Cummins Westport ISX12N is an inline six-cylinder natural-gas engine of 11.9 litres (130 x 150 mm bore and stroke), turbocharged and charge-air cooled. It is certified to the California Air Resources Board and EPA "Optional Low NOx" standard of 0.02 g/bhp-hr — about 90 percent below the current North American NOx limit — and, depending on rating, produces up to 400 hp and around 1,450 lb-ft (roughly 1,966 N·m) of torque.
Read on 3 more paragraphs
Introduced in 2018, the ISX12N replaced the ISX12 G as Cummins' flagship heavy-duty natural-gas engine. It runs on compressed natural gas (CNG), liquefied natural gas (LNG) or renewable natural gas (RNG); Cummins states that RNG operation can deliver a neutral-to-negative carbon footprint.
It powers heavy tractors and distribution trucks — including the Kenworth T680 Next Generation — as well as refuse trucks and buses; ratings on record include ISX12N 400, 385, 350, 330 and 320.
The engine uses a closed crankcase ventilation system and a maintenance-free three-way catalyst rather than a diesel particulate filter. For used units, spark plugs and the stoichiometric control system deserve attention alongside routine oil and filter service; no further type-specific weak points are documented in the sources reviewed.
Sources: SpecCodex register, model data: ISX12N, – Cummins ISX12N (2018) Produktseite, – Kenworth: T680 Next Generation mit ISX12N, – Cummins Westport ISX12N Modellseite
Technical data
Engine
| Engine code | XH8correct |
|---|---|
| Engine family | TCEXH0729XDAcorrect |
| Engine families | LCEXH0729XBC; KCEXH0729XBC; JCEXH0729XBCcorrect |
| Fuel | Compressed Natural Gas, Liquefied Natural Gascorrect |
| Rated output | 238.6 kW (= 320 hp)correct |
| Rated speed | 1,700 rpmcorrect |
| Maximum torque | 1,150 ft·lbfcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Displacement | 11,900 cm³correct |
| Displacement | 11.9 lcorrect |
| Operating cycle | dieselcorrect |
| Injection | throttle-body injectioncorrect |
| Aspiration | turbochargedcorrect |
Origin and approval
| Version | XH8correct |
|---|---|
| Built from | 2018correct |
| Built to | 2020correct |
| Model year from | 2018correct |
| Model year to | 2026correct |
| Sales region | USA certificationcorrect |
Other data
| Application | Both Tractor and Vocationalcorrect |
|---|
Frequently asked questions
How much power does the Cummins ISX12N 320 have?
The Cummins ISX12N 320 delivers 239 kW.
What engine does the Cummins ISX12N 320 have?
11,900 cm³ displacement, Compressed Natural Gas, Liquefied Natural Gas.
When was the Cummins ISX12N 320 built?
Production years: 2018-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: US EPA — engine certification data (retrieved August 2026) · How we check the data
Diesel engine in 3D section
Turn the model, look inside and click an assembly — each one is explained.
Parts for this engine (29)
Manufacturer part numbers from the official EPA documentation. No prices or availability — those come from the supplier.
| Part number | Description | Manufacturer |
|---|---|---|
| 4902912 | Catalyst Temperature Sensor;Catalyst temp. sensor | Cummins |
| 4954574 | Catalyst Temperature Sensor;Catalyst temp. sensor | Cummins |
| 2897334 | Compressor Outlet Pressure Sensor;Comp out pressure sensor | Cummins |
| 5698456 | Compressor Outlet Pressure Sensor;BarometricPressureSensor;Comp out pressure sensor | Cummins |
| 4954905 | Coolant Temperature Sensor;Coolant Temp Sensor;Coolant Temperature Sensor;Engine Out NOx Sensor 2;Coolant Temperature Sensor;Oil Temperature Sensor;Oil Temperature Sensor;Coolant Temperature Sensor;Coolant temp sensor | Cummins |
| 4313837 | EGR Cooler | Cummins |
| 5306676 | EGR Valve | Cummins |
| 5483010 | EGR Valve | Cummins |
| 5483013 | EGR Valve | Cummins |
| 5594276 | Engine Crankshaft;Crankshaft Position Sensor;Crankshaft Position Sensor;Camshaft Position Sensor;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft;Engine Camshaft;Engine Crankshaft;Engine Camshaft;Engine Crankshaft;Engine Camshaft Position Sensor;Engine Camshaft | Cummins |
| 4354538 | Engine Control Module | Cummins |
| 5491911 | Engine Control Module | Cummins |
| 2872279 | Crankshaft Position Sensor;Camshaft Position Sensor;Crankshaft Position Sensor;Crankshaft Position Sensor;Camshaft Position Sensor;Camshaft Position Sensor;Engine Camshaft;Engine Crankshaft;Engine Crankshaft;Engine Crankshaft Position Sensor;Engine Crankshaft Position Sensor;Engine Crankshaft | Cummins |
| 2872858 | EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR Out Temperature Sensor;EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR temp sensor | Cummins |
| 4384138 | Exhaust Gas Recirculation Pressure | Cummins |
| 6419882 | Exhaust Gas Recirculation Pressure | Cummins |
| 9999999 | Fuel Injector Pump;Fuel Injection Pump | Cummins |
| 1234567 | Fuel Injector | Cummins |
| 4921495 | Fuel Pressure | Cummins |
| 4384340 | Humidity Sensor;Humidity sensor | Cummins |
| 4384132 | Intake manifold press/temp sensor | Cummins |
| 4384382 | Oxygen Sensor;Sec. oxygen sensor | Cummins |
| 4394751 | Catalyst Element | Cummins |
| 4394752 | Catalyst Element | Cummins |
| 4384259 | Turbine Inlet Temperature Sensor | Cummins |
| 5350768 | Turbocharger | Cummins |
| 5350774 | Turbocharger | Cummins |
| 5500855 | Turbocharger | Cummins |
| 5500858 | Turbocharger | Cummins |
Source: EPA HD Engines 2015–Present
