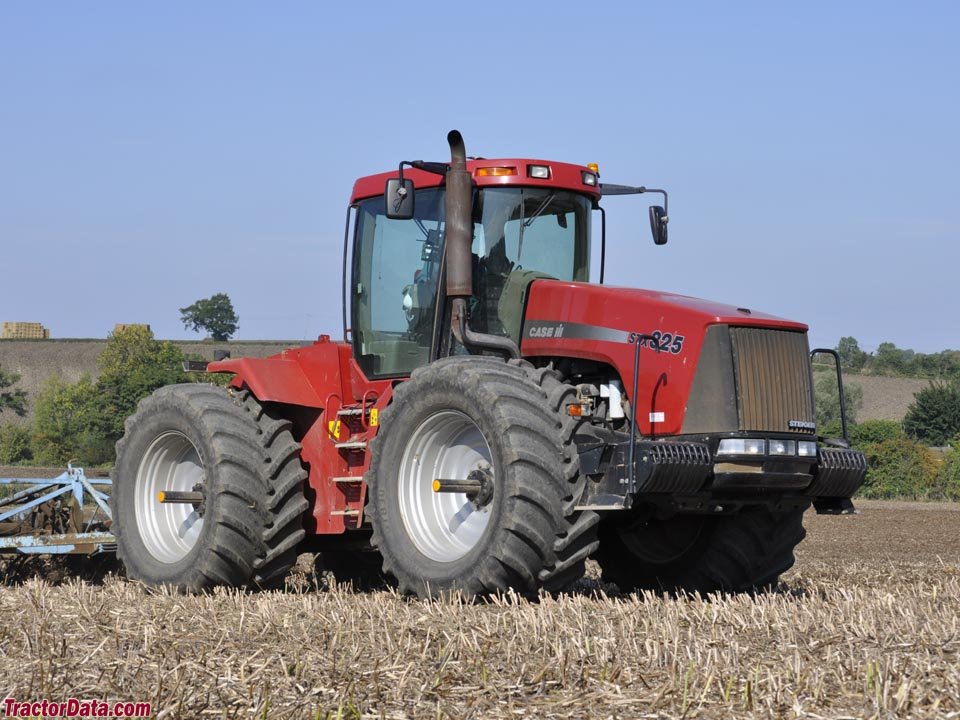

Cnh STX325 – specifications

Built: 2002–2005 · Series: STX

Data for the version built 2002–2005 · Data origin: Reference work (Wikipedia/Wikibooks) · sources

More machines from model year 2002

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The STX325 is a heavy tractor from the STX series manufactured by CNH. This model was produced from 2002 to 2005 and belongs to the category of agricultural tractors. As a diesel tractor with six cylinders and water cooling, it is designed for demanding field operations. The production period marks a specific phase in the development of this series, combining high performance data with a heavy-duty construction.

The engine output of 325 hp at a rated speed of 2,000 rpm enables the towing of large mounted implements and heavy trailers. The displacement of 8,900 cm³ ensures high torque, which is available even at low speeds. The empty weight of 14,481 kg is distributed over a wheelbase of 3,680 mm, providing stability during transport and soil cultivation. A lifting capacity of 6,577 kg allows for the raising of heavy front or rear mounted implements without the need for additional counterweights.

Within the STX series, the STX325 is positioned as a high-performance model at the upper end of the spectrum. It represents the technical peak of this series in terms of power and weight class. The combination of high empty weight and large lifting capacity makes it suitable for tasks requiring high traction and stability. These characteristics are typical for tractors of this size and performance class within the specified series.

Technical data

Engine

Fueldieselcorrect
Power325 hp (242 kW)correct
Rated speed2,000 rpmcorrect
Cylinders6correct
Displacement8,900 cm³correct
Coolingwater-cooledcorrect

Dimensions and weights

Wheelbase3,680 mmcorrect
Unladen weight14,481 kgcorrect

Working data

Lifting capacity6,577 kgcorrect

Where this model stands

Power-to-weight ratio: 16.7 kW/t (242 kW / 14.5 t)

Power class: Heavy (> 180 hp)

Stronger than 97% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Cnh STX325 have?

The Cnh STX325 delivers 325 hp.

How much does the Cnh STX325 weigh?

The unladen weight is 14,481 kg.

What engine does the Cnh STX325 have?

6 cylinders, 8,900 cm³ displacement, Diesel.

How much does the rear linkage of the Cnh STX325 lift?

The rear linkage lifts 6,577 kg.

When was the Cnh STX325 built?

Production years: 2002–2005.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
