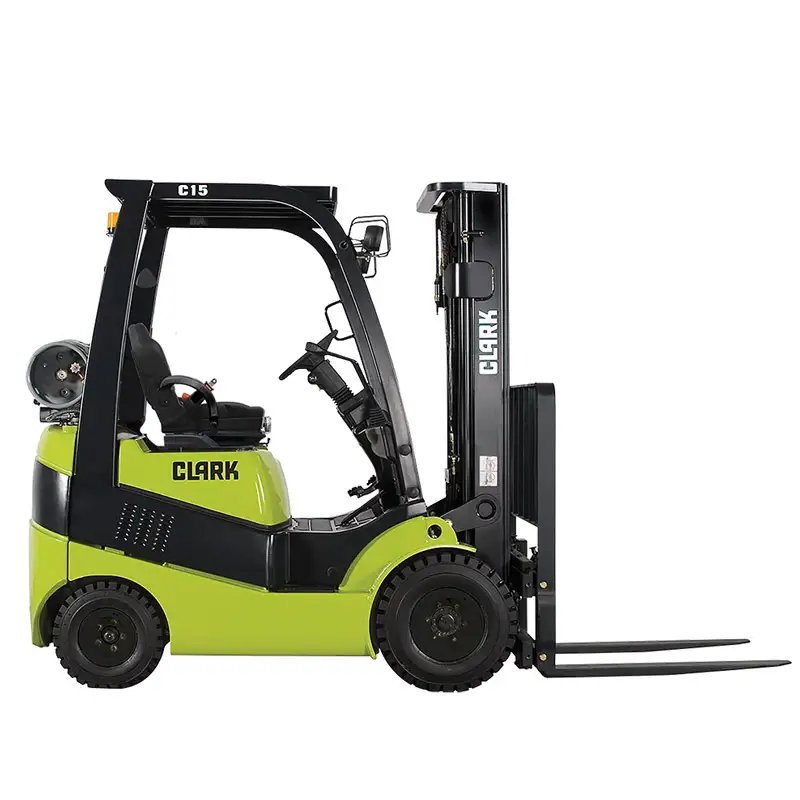

Clark Michigan ESM II15
Series: Clark Michigan Forklift
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Clark Forklift – the pioneer behind the C-code for diesel and LPG
Clark is regarded as one of the inventors of the modern forklift: in 1917 the company built the "Tructractor", one of the first motorised load-carrying vehicles, followed in 1924 by the first truck with a hydraulic lifting mechanism. By 1997 Clark had built over a million units; since 2003 the company, now based in Dallas, has belonged to South Korea's Young An Hat Company.
Read on 3 more paragraphs
The type code of classic Clark trucks starts with "C", followed by a model/size number and a letter for the power source — "D" for diesel, "L" for LPG. Unlike some competitors, that number is not a direct capacity figure in kilograms but a series/size designation: C15D and C17L, for instance, share the same rated capacity but differ in power source.
Models recorded in the database span capacities of 1,361 to 7,484 kg, lift heights of 3,290 to 4,800 mm, and displacement of 1,999 to 4,391 cm³ across 4 to 6 cylinders — a classic mid-size counterbalance programme, represented by models such as C15D, C16L, C17D or C18L.
For a used older Clark, beyond the usual mast and axle check, spare parts are the key question: after several changes of brand ownership, it's worth verifying whether original parts are still available for the specific size class, or only aftermarket substitutes.
Sources: Kennwerte der Modelle Clark Michigan Forklift, Wikipedia: Clark Material Handling Company (Geschichte, Eigentümer seit 2003) (Wikipedia), - Clark (offiziell): aktuelle C15-Baureihe
Technical data
Engine
| Fuel | Elektrisch (36V)correct |
|---|
Dimensions and weights
| Width | 1,020 mmcorrect |
|---|---|
| Ground clearance | 61.2 mmcorrect |
| Unladen weight | 4,107 kgcorrect |
Drivetrain and chassis
| Tyre type | cushion tyrescorrect |
|---|---|
| Top speed | 11.7 km/hcorrect |
| Turning radius | 1,360 mmcorrect |
| Fork spread | 914.4 mmcorrect |
| Mast stages | 3correct |
Working data
| Lifting capacity | 1,500 kgcorrect |
|---|---|
| Lift height | 4,780 mmcorrect |
| Lowering speed | 24.4 m/mincorrect |
Other data
| Front wheels | 2correct |
|---|---|
| Lift speed | 19.2 m/mincorrect |
| Load centre | 500.1 mmcorrect |
| Mast tilt back | 5°correct |
| Mast tilt forward | 3°correct |
| Rear wheels | 1correct |
Frequently asked questions
How much does the Clark Michigan ESM II15 weigh?
The unladen weight is 4,107 kg.
How fast does the Clark Michigan ESM II15 go?
Top speed is 11.7 km/h.
What is the load capacity of the Clark Michigan ESM II15?
Load capacity is 1,500 kg at a 500 mm load centre, lift height 4,780 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
