CLAAS NEXOS 230 F
Built: 2021 · Series: Nexos
More machines from model year 2021
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Claas Nexos (from 2009) – the narrow-track tractor for orchards and vineyards: Nexos 210 to 240, the number as power step, F for orchard, VE and VL for narrow and wide vineyard version, FPT four-cylinder of 3.4 litres
The Nexos is Claas's specialist tractor for fruit, wine and hop growing – presented in 2009 as successor to the Fructus that Claas had taken over from Renault, built in cooperation with Carraro in Italy, the specialist for narrow-track tractors, and with FPT engines. The type logic: Nexos marks the range, the number the power step – 210 about 72 hp, 220 about 80, 230 about 90, 240 about 100 hp – the letter the configuration: F for the orchard tractor of about 1.5 to 1.9 metres wide, VE for the narrowest vineyard version from 1.38 metres, VL for the wider vineyard version; the later generation from 2018 uses the same logic with a new cab. The engine is the FPT F5C four-cylinder of 3.4 litres, with common-rail injection and turbocharging, the transmission a synchromesh gearbox with shuttle and optional powershift step, the rear axle with planetary final drives for the narrow track.
Read on 3 more paragraphs
The register lists 8 versions with 54 to 77 kW (72 to 101 hp) from the four-cylinder of 3,387 cm³, unladen weights from 2,975 to 3,110 kg, a gross weight of 4,400 kg, lengths from 3,870 to 4,813 mm and widths from 1,380 to 1,951 mm.
The Nexos is the tractor of the wine estates on the Moselle, the Rhine and in Burgundy, the orchards on Lake Constance and in South Tyrol and the hop gardens of the Hallertau, where a width under 1.4 metres between the vine rows decides; competitors are the Fendt 200 V/F, New Holland T4 F/V and Same Frutteto.
On used tractors, operating hours, engine and injection, clutch and shuttle, four-wheel-drive clutch, hydraulics and front linkage, cab filters for crop protection, sheet metal and corrosion from spraying work count; parts run through Claas dealers and Carraro.
Sources: SpecCodex register, model data: CLAAS Nexos, CLAAS (manufacturer)
Technical data
Engine
| Power | 68 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 3,387 cm³correct |
Dimensions and weights
| Length | 4,813 mmcorrect |
|---|---|
| Width | 1,951 mmcorrect |
| Unladen weight | 3,110 kgcorrect |
| Gross vehicle weight | 4,400 kgcorrect |
Where this model stands
Power-to-weight ratio: 21.9 kW/t (68 kW / 3.1 t)
Power class: Universal (40–100 hp)
Stronger than 62% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the CLAAS NEXOS 230 F have?
The CLAAS NEXOS 230 F delivers 68 kW.
How much does the CLAAS NEXOS 230 F weigh?
The unladen weight is 3,110 kg.
What is the gross vehicle weight of the CLAAS NEXOS 230 F?
4,400 kg.
What engine does the CLAAS NEXOS 230 F have?
4 cylinders, 3,387 cm³ displacement.
What are the dimensions of the CLAAS NEXOS 230 F?
4,813 mm × 1,951 mm.
When was the CLAAS NEXOS 230 F built?
Production years: 2021.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: Traficom — Finnish vehicle register (retrieved August 2026) · How we check the data

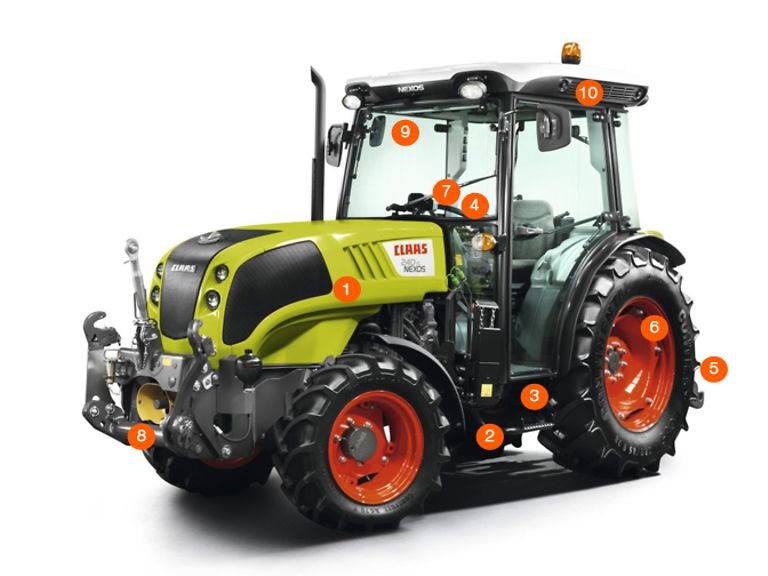

Tractor in 3D section
