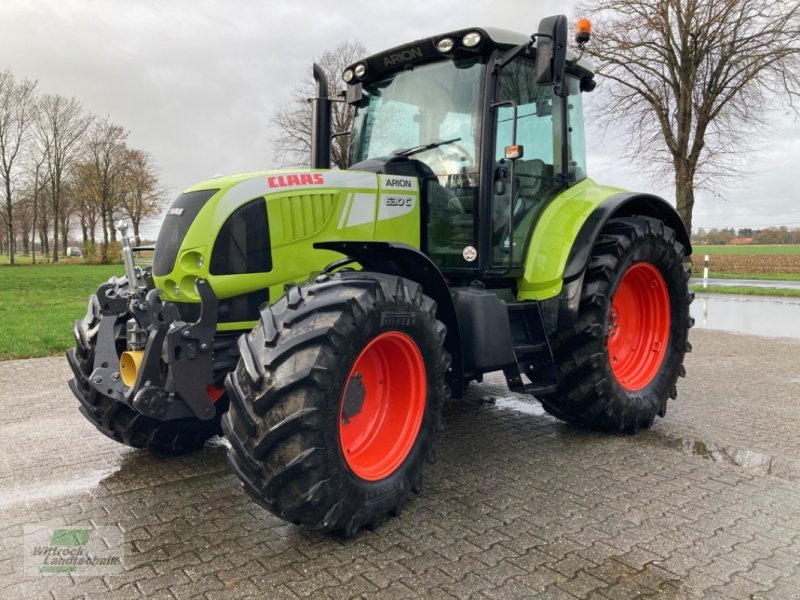

CLAAS Arion 630 C (107 kW)
Built: 2008–2013 · Series: Arion 600 C
More machines from model year 2008
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
CLAAS Arion 600 C – Arion 610 C, 620 C and 630 C: six-cylinder diesel from 88 to 107 kW, 6,788 cm³ displacement and 5,500 to 5,870 kg operating weight from the Le Mans plant
The Arion 600 C range extends CLAAS's Arion 600 line built at the Le Mans plant with the models Arion 610 C, 620 C and 630 C. The type designation follows the same rising numbering pattern as the rest of the Arion family, with the final digits rising alongside engine output. The Arion range replaced the Ares range in CLAAS's mid-size line-up from 2007, bringing a more modern, angular cab shape in place of the round Ares cab.
Read on 3 more paragraphs
The register lists 3 versions with 88 to 107 kW rated output at a constant 2,200 rpm. The six-cylinder engines produce 6,788 cm³ displacement, operating weights range from 5,500 to 5,870 kg at a length of 5,155 mm and heights from 2,915 to 2,937 mm.
With outputs up to 107 kW, the Arion 600 C targets larger arable farms needing pulling power for heavy tillage and transport work, competing there with Fendt, John Deere and Massey Ferguson. The same displacement across all three models simplifies servicing and spares stocking, while the Arion range's CEBIS on-board electronics allow finer tuning of engine and gearbox.
When buying used, gearbox and clutch condition, the tightness of the hydraulic system, and corrosion on load-bearing panels rank among the key checks. The service history of the injection system and cooling system indicates the upkeep, as does the function of the on-board electronics and terminal; spare parts are carried by the CLAAS dealer network.
Sources: SpecCodex register, model data: CLAAS Arion 600 C, CLAAS (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 145 hp (107 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,788 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,155 mmcorrect |
|---|---|
| Height | 2,937 mmcorrect |
| Wheelbase | 2,820 mmcorrect |
| Ground clearance | 501 mmcorrect |
| Unladen weight | 5,870 kgcorrect |
Drivetrain and chassis
| Gearbox | 16/16correct |
|---|---|
| Front tyres | 14.9 R 28correct |
| Rear tyres | 18.4 R 38correct |
| Top speed | 40 km/hcorrect |
Where this model stands
Power-to-weight ratio: 18.2 kW/t (107 kW / 5.9 t)
Power class: Large (100–180 hp)
Stronger than 82% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the CLAAS Arion 630 C have?
The CLAAS Arion 630 C delivers 145 hp.
How much does the CLAAS Arion 630 C weigh?
The unladen weight is 5,870 kg.
What engine does the CLAAS Arion 630 C have?
6 cylinders, 6,788 cm³ displacement, Diesel.
How fast does the CLAAS Arion 630 C go?
Top speed is 40 km/h.
What are the dimensions of the CLAAS Arion 630 C?
5,155 mm × 2,937 mm.
When was the CLAAS Arion 630 C built?
Production years: 2008–2013.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
