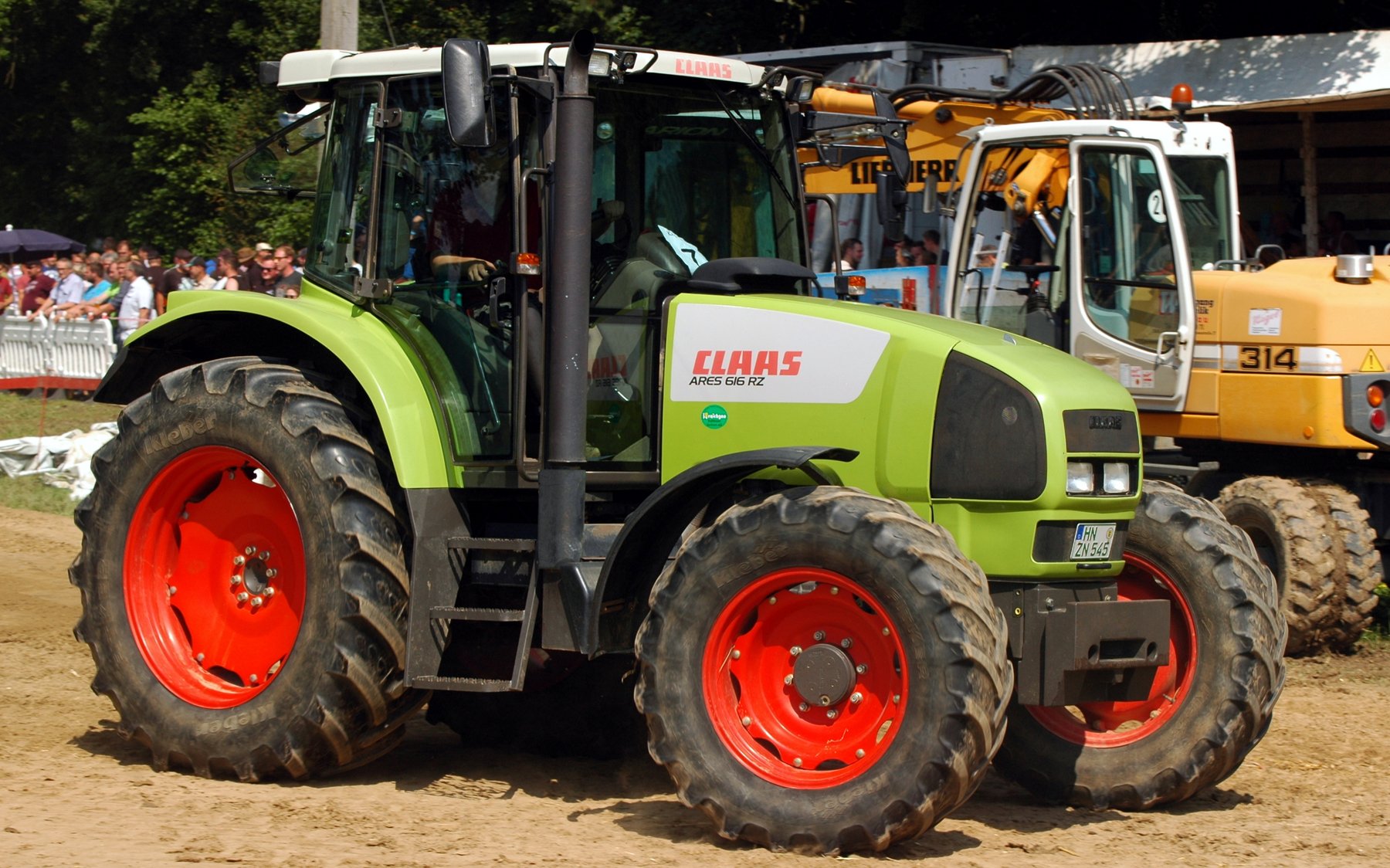

CLAAS Ares 616
Built: 2003–2005 · Series: Ares 600
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
CLAAS Ares 600 – Ares 616, 656 and 696 from Le Mans: six-cylinder diesel from 81 to 104 kW, 6,788 cm³ displacement and 4,860 to 5,510 kg operating weight, built 2002 to 2008
Above the Ares 500, CLAAS positioned the Ares 600 range at the same Le Mans plant with the models Ares 616, 656 and 696. As with the smaller sister range, production fell in the years 2002 to 2008; the type designation likewise rises with engine output. The Ares 600 also initially carried over the round, widely glazed cab from the Renault design before later CLAAS ranges switched to more angular cab shapes.
Read on 3 more paragraphs
The register lists 3 versions with 81 to 104 kW rated output at a constant 2,200 rpm. The six-cylinder engines produce 6,788 cm³ displacement, operating weights range from 4,860 to 5,510 kg. Lengths run from 4,255 to 4,726 mm, heights from 2,910 to 2,945 mm at a constant width of 2,569 mm.
With the larger six-cylinder unit, the Ares 600 sat in the upper mid-class segment for larger arable farms and contractors needing more pulling power for tillage and trailer work. Competitors in this segment included Fendt, John Deere and Massey Ferguson; the large cab glazing helped visibility for front loader and manoeuvring work.
When buying used, it is worth checking gearbox and clutch, the hydraulic pump, and the condition of the cab mounts, since the range often ran multi-shift duty. Radiator and charge-air cooler should be checked for tightness, as should the cab glazing seals; spare parts are available through the CLAAS network.
Sources: SpecCodex register, model data: CLAAS Ares 600, CLAAS (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 110 hp (81 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,788 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,255 mmcorrect |
|---|---|
| Width | 2,569 mmcorrect |
| Height | 2,910 mmcorrect |
| Wheelbase | 2,820 mmcorrect |
| Ground clearance | 507 mmcorrect |
| Unladen weight | 4,860 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 32/32correct |
| Front tyres | 14.9 R 28correct |
| Rear tyres | 18.4 R 38correct |
| Top speed | 40 km/hcorrect |
Where this model stands
Power-to-weight ratio: 16.7 kW/t (81 kW / 4.9 t)
Power class: Large (100–180 hp)
Stronger than 71% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the CLAAS Ares 616 have?
The CLAAS Ares 616 delivers 110 hp.
How much does the CLAAS Ares 616 weigh?
The unladen weight is 4,860 kg.
What engine does the CLAAS Ares 616 have?
6 cylinders, 6,788 cm³ displacement, Diesel.
How fast does the CLAAS Ares 616 go?
Top speed is 40 km/h.
What are the dimensions of the CLAAS Ares 616?
4,255 mm × 2,569 mm × 2,910 mm.
When was the CLAAS Ares 616 built?
Production years: 2003–2005.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
