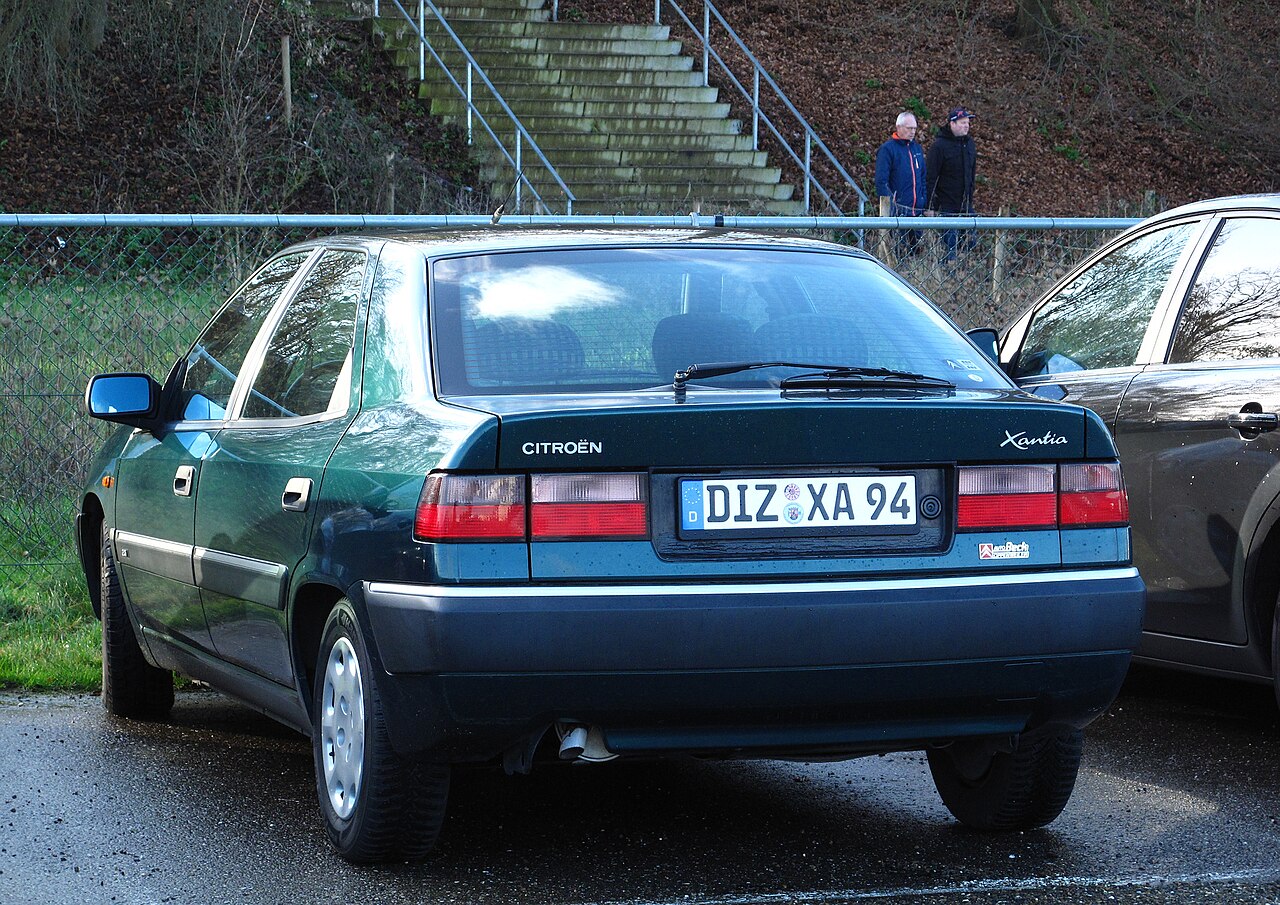

Citroën XANTIA
Built: 1996-2000 · Series: XANTIA
More machines from model year 1996
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Citroën Xantia – the Break estate versions of the mid-size range (1993-2001) registered as light commercials: 1.9 and 2.1-litre turbodiesels, 66 to 80 kW, Hydractive suspension
The Citroën Xantia was the French manufacturer's mid-size saloon and estate, succeeding the BX and preceding the later C5, built from 1993 to 2001 at the Rennes plant. The versions listed in the register under vehicle class N1 are exclusively Break estates, registered as commercial vehicles in some markets because of their load area. A defining feature of the Xantia was its Hydractive hydropneumatic suspension, combining the classic Citroën self-levelling system with electronically controlled damping, standard or optional.
Read on 3 more paragraphs
The register lists 6 versions with 66 to 80 kW from 1,905 to 2,080 cm³ displacement and four cylinders, kerb weights of 1,340 to 1,504 kg, gross vehicle weights of 1,960 to 2,010 kg, a length of 4,710 mm and a width of 1,760 mm.
The turbodiesel variants listed here, with 1.9 and 2.1-litre engines, targeted high-mileage drivers and business customers wanting the estate's large load area combined with low fuel consumption; registered as an N1 estate, the Xantia Break competed with the Peugeot 406 Break and Renault Laguna Grandtour in the estate light-commercial segment.
When buying a used Xantia, the Hydractive suspension is the main focus: the spheres, high-pressure pump and LDS height corrector should be checked for leaks and correct operation. Also check the turbodiesels' injection pump and turbocharger, along with rust on sills and wheel arches; suspension and electrical parts are generally well supplied through independent Citroën specialists.
Sources: SpecCodex register, model data: Citroën Xantia, Citroën (manufacturer)
Technical data
Engine
| Power | 66 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 1,945 cm³correct |
Dimensions and weights
| Length | 4,710 mmcorrect |
|---|---|
| Width | 1,760 mmcorrect |
| Unladen weight | 1,449.5 kgcorrect |
| Gross vehicle weight | 1,975 kgcorrect |
Where this model stands
Power-to-weight ratio: 45.5 kW/t (66 kW / 1.4 t)
Stronger than 22% of the vans in the register — out of 7,144 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Citroën XANTIA have?
The Citroën XANTIA delivers 66 kW.
How much does the Citroën XANTIA weigh?
The unladen weight is 1,450 kg.
What is the gross vehicle weight of the Citroën XANTIA?
1,975 kg.
What engine does the Citroën XANTIA have?
4 cylinders, 1,945 cm³ displacement.
What are the dimensions of the Citroën XANTIA?
4,710 mm × 1,760 mm.
When was the Citroën XANTIA built?
Production years: 1996-2000.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
5D XANTIA BREAK 2.0 TURBO HDI-X2RHZB/274
5D XANTIA BREAK 2.0 TURBO HDI-X2RHZF/274
5D XANTIA BREAK 2.1 TURBO D-X2P8CF/274
XANTIA 1.9TD BRK. SERVICE
XANTIA 2.0I16V BREAK SERV
