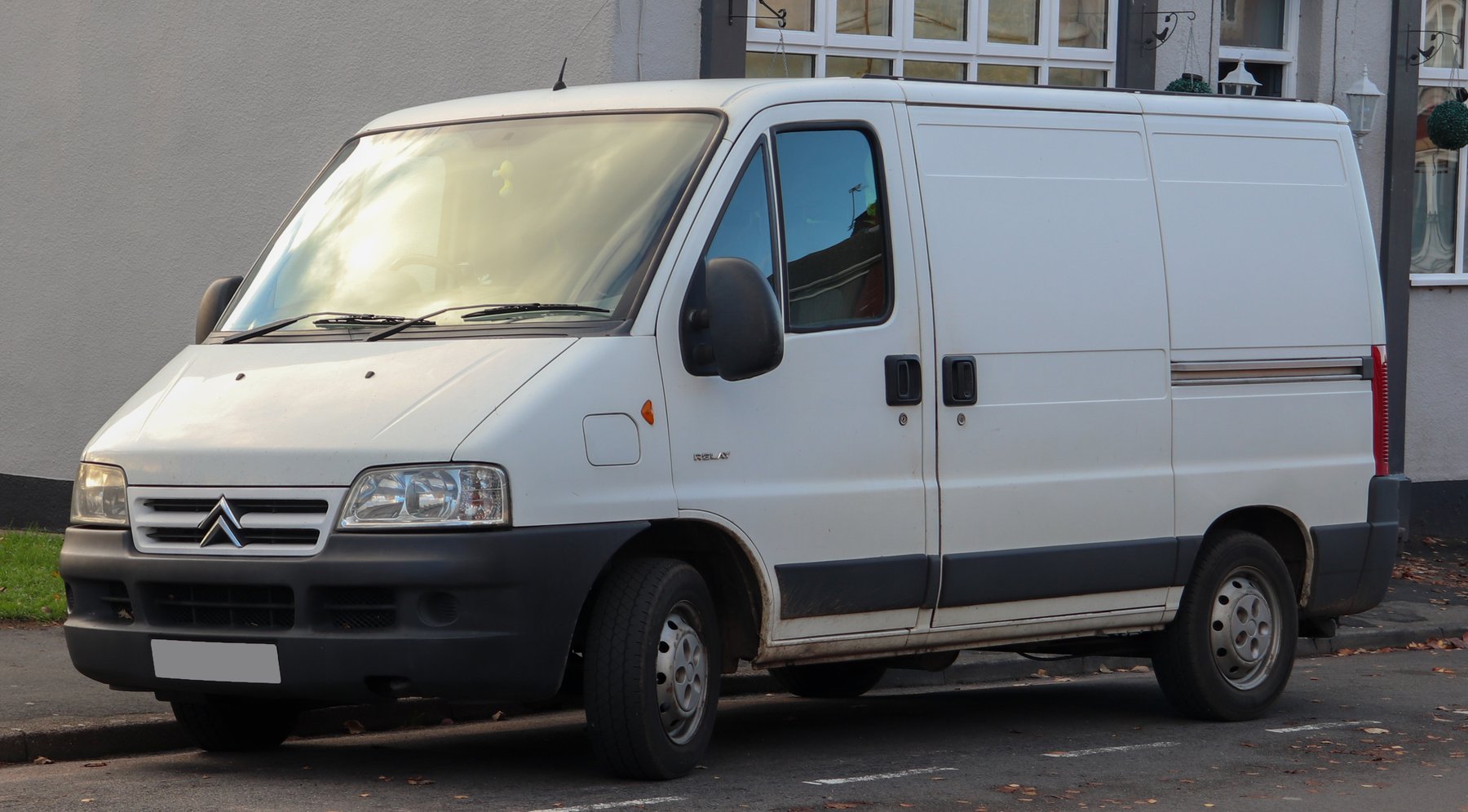

Citroën JUMPER ODER RELAY
Built: 2010-2018 · Series: Jumper
More machines from model year 2010
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Citroën Jumper – large panel van from the Sevel plant at Val di Sangro since 1994, sister model to the Fiat Ducato and Peugeot Boxer: L1–L3/H1–H3 body kit, 1.9 to 3.0-litre HDi diesels
The Jumper emerged in 1994 from the Sevel cooperation between PSA (Citroën/Peugeot) and Fiat at the Val di Sangro plant (Atessa, Italy) and is technically almost identical to the Fiat Ducato and Peugeot Boxer; the third generation has run since 2006 (facelifts in 2014 and 2019). Type designations in the register combine a weight-class number (27, 29, 30, 33, 35 for gross weight in hundreds above 3 tonnes), a length code (L1 to L3) and height code (H1 to H3), and the engine designation – HDi denotes the common-rail diesel used since 1999, older models still ran naturally aspirated (D) or turbo diesels (TD).
Read on 3 more paragraphs
The register lists 294 versions with 62 to 120 kW output, displacements of 1,900 to 2,999 cm³ (all four-cylinder), unladen weights of 1,590 to 3,360 kg, gross weights of 2,223 to 3,510 kg and widths of 1,900 to 2,550 mm; only 30 length values are on record, ranging from 4,963 to 7,400 mm.
As a 3-tonne-class van the Jumper competes with the Mercedes-Benz Sprinter, Ford Transit, Renault Master and Volkswagen Crafter; the Sevel platform makes it technically near-identical to the Ducato and Boxer, which helps when sourcing parts or choosing a workshop.
On used examples, check rust at the sliding-door rails, wheel arches and floor, condition of the dual-clutch or manual gearbox, injectors and EGR valve on the HDi engines, timing-belt change intervals, and mileage relative to use (courier work, motorhome base, trade van).
Sources: Kennwerte der Modelle Citroën Jumper, Citroën (Hersteller)
Technical data
Engine
| Power | 96 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 2,999 cm³correct |
Dimensions and weights
| Length | 7,400 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 4,590 mmcorrect |
| Unladen weight | 3,150 kgcorrect |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Gears | 6correct |
|---|---|
| Wheels | 4correct |
| Top speed | 166 km/hcorrect |
Where this model stands
Power-to-weight ratio: 30.5 kW/t (96 kW / 3.1 t)
Stronger than 63% of the vans in the register — out of 7,145 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Citroën JUMPER ODER RELAY have?
The Citroën JUMPER ODER RELAY delivers 96 kW.
How much does the Citroën JUMPER ODER RELAY weigh?
The unladen weight is 3,150 kg.
What is the gross vehicle weight of the Citroën JUMPER ODER RELAY?
3,500 kg.
What engine does the Citroën JUMPER ODER RELAY have?
4 cylinders, 2,999 cm³ displacement.
What are the dimensions of the Citroën JUMPER ODER RELAY?
7,400 mm × 2,550 mm.
When was the Citroën JUMPER ODER RELAY built?
Production years: 2010-2018.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
