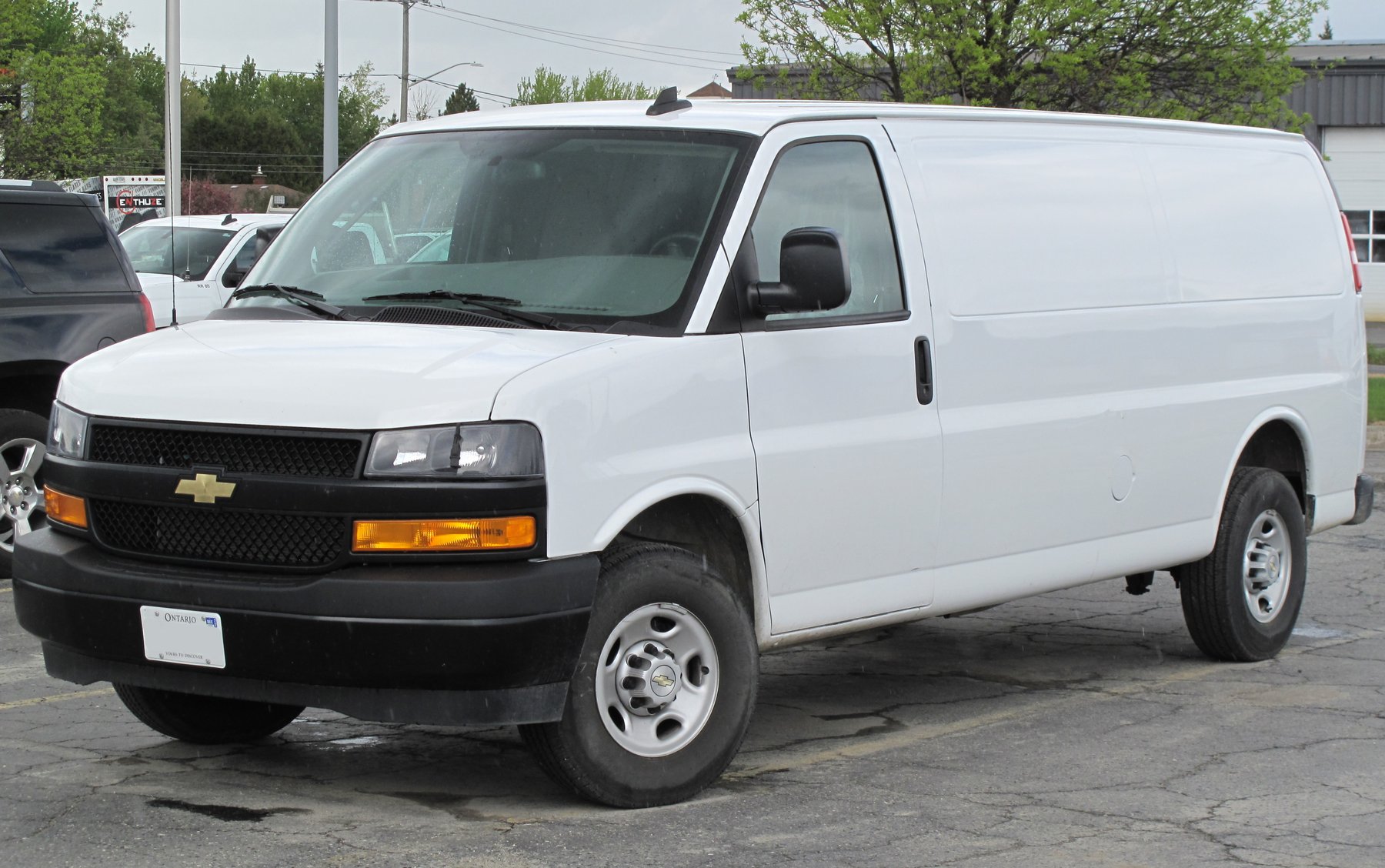

Chevrolet EXPRESS CARGO 2500 – specifications
Built: 2024 · Series: Express
The Chevrolet EXPRESS CARGO 2500 is a model in the Express series. Production: 2024. The engine has 8 cylinders, with a displacement of 6,564 cm³. The vehicle is 6,200 mm long and 2,020 mm wide. The unladen weight is 2,683 kg. The wheelbase measures 4,380 mm. Top speed is 156 km/h. The gross vehicle weight is 3,500 kg. The vehicle runs on 4 wheels. The Express series covers 17 models. Unladen weight within it ranges from 2,491 to 3,025 kg; the EXPRESS CARGO 2500 sits in the lower part of that range with 2,683 kg. Its immediate neighbours are the EXPRESS VAN 1500 below it with 2,677 kg and the EXPRESS 3500 EXT. above it with 2,742 kg. Gross vehicle weight within it ranges from 3,221 to 3,500 kg; here the EXPRESS CARGO 2500 sits at the top of that range with 3,500 kg. 2857 Chevrolet models across 75 series are on record.
Data for the version built 2024 · Data origin: Official register · sources
More machines from model year 2024
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Chevrolet Express – other models: the collective page of the American full-size van outside the named ranges, from 1500 to 3500, cargo van and Startrans bus conversion, 210 to 224 kW, V8 engines of 5.3 to 6.6 litres
The Chevrolet Express is General Motors' full-size van, which has replaced the G/Vandura range since 1996 and is offered in various payload classes; the number in the name – 1500, 2500, 3500 – traditionally denotes the payload class from about half a tonne to a full tonne. This page gathers cargo, passenger and special versions such as the Cargo Van, the AWD Van with four-wheel drive and the Startrans Bus, a minibus conversion on the Express base.
Read on 3 more paragraphs
The register lists here 17 versions with 210 to 224 kW from eight-cylinders of 5,327 to 6,564 cm³, unladen weights from 2,491 to 3,025 kg, gross weights from 3,221 to 3,500 kg, lengths from 5,520 to 6,200 mm and widths from 1,890 to 2,180 mm.
Alongside the identical GMC Savana, the Express is the last classic American-style full-size van on the North American and European markets, serving fleets, trades and passenger transport where European front-wheel-drive vans with smaller engines run into payload or towing limits.
On a used example, the condition of the V8 engine and automatic transmission, rust on the frame and rear wheel arches, and on diesel variants the injectors and exhaust aftertreatment system matter, while on bus and special conversions the condition of seats, ramps and the wiring of the added equipment counts; parts run through the GM network.
Sources: SpecCodex register, model data: Chevrolet Express (weitere Modelle), Chevrolet (General Motors, Hersteller)
Technical data
Engine
| Cylinders | 8correct |
|---|---|
| Displacement | 6,564 cm³correct |
Dimensions and weights
| Length | 6,200 mmcorrect |
|---|---|
| Width | 2,020 mmcorrect |
| Wheelbase | 4,380 mmcorrect |
| Unladen weight | 2,683 kg (example vehicle as registered, incl. body – not a model value)correct |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 156 km/hcorrect |
Frequently asked questions
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
