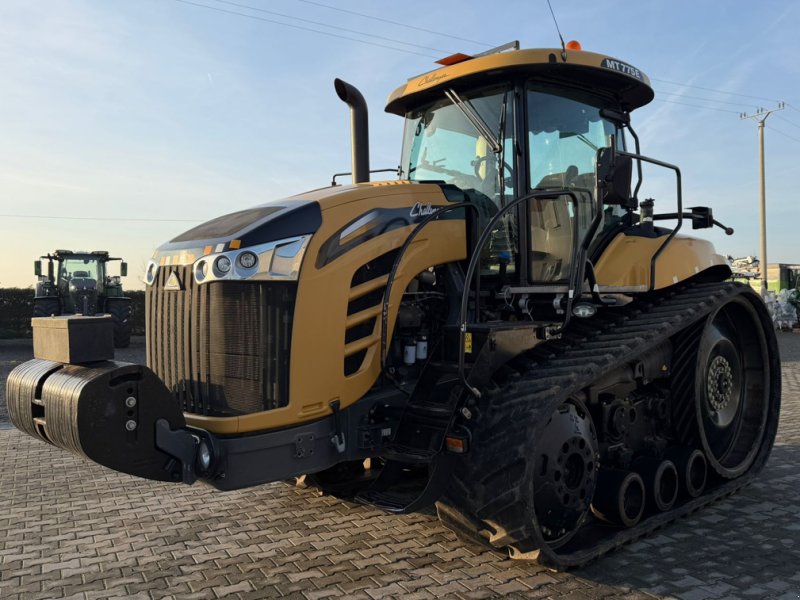

Challenger MT 775 E
Built: 2015-2015 · Series: MT
More machines from model year 2015
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Challenger MT 775 E rolled off the line in 2015 as a tractor. From 9.8 litres the engine produces 298 kW.
Dimensions are 5.99 m by 2.93 m. Unladen, it tips the scales at 17,900 kg.
Within the range, rated power spans from 18 to 436 kW; with 298 kW, the MT 775 E sits in the upper third. Directly alongside are the MT685C with 280 kW below and the MT835C with 310 kW above.
Challenger MT – the tracked tractors from Jackson, Minnesota: MT 755C to MT 855C with six-cylinder diesel, 232 to 298 kW, rubber-track undercarriage and up to 20.4 tonnes gross weight
Challenger is the tracked-tractor brand AGCO took over from Caterpillar in 2002, together with the plant in Jackson, Minnesota, where the MT range has been built ever since. The MT type designation stands for Mobile Track, the following number for the power class, C for a revised equipment generation, E for an earlier version; the rubber-track undercarriage, originally developed by Caterpillar for the Challenger, spreads the big tractors' high weight over a wide footprint, sparing the soil compared with wheeled tractors of equal power. The range's engines originally came from Caterpillar, increasingly from AGCO Power with the move to AGCO.
Read on 3 more paragraphs
The register lists here 5 versions with 232 to 298 kW from six-cylinders of 8,804 to 9,800 cm³, unladen weights from 12,873 to 17,900 kg, gross weights from 12,873 to 20,400 kg, lengths from 5,888 to 5,993 mm and widths from 2,700 to 2,980 mm.
The MT tracked tractors, together with the wheeled Case IH Steiger and John Deere 9RX, form the top class of North American big arable tractors for operations with very large fields and high drawbar demand, for instance in deep tillage and heavy cultivating.
On used Challenger tracked tractors, condition of the rubber tracks and rollers counts – the most expensive wear item – drive wheels and the tensioning system, engine and transmission condition, and the history of the hydraulic pumps; spare parts and service run through the AGCO network.
Sources: Kennwerte der Modelle Challenger MT, Challenger (AGCO, Hersteller)
Technical data
Engine
| Power | 298 kWcorrect |
|---|---|
| Displacement | 9,800 cm³correct |
Dimensions and weights
| Length | 5,993 mmcorrect |
|---|---|
| Width | 2,933 mmcorrect |
| Unladen weight | 17,900 kgcorrect |
| Gross vehicle weight | 20,400 kgcorrect |
Where this model stands
Power-to-weight ratio: 16.6 kW/t (298 kW / 17.9 t)
Power class: Heavy (> 180 hp)
Stronger than 99% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Challenger MT 775 E have?
The Challenger MT 775 E delivers 298 kW.
How much does the Challenger MT 775 E weigh?
The unladen weight is 17,900 kg.
What is the gross vehicle weight of the Challenger MT 775 E?
20,400 kg.
What engine does the Challenger MT 775 E have?
9,800 cm³ displacement.
What are the dimensions of the Challenger MT 775 E?
5,993 mm × 2,933 mm.
When was the Challenger MT 775 E built?
Production years: 2015.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
