Ceg Sss RSS 80-19-4

Series: Other models

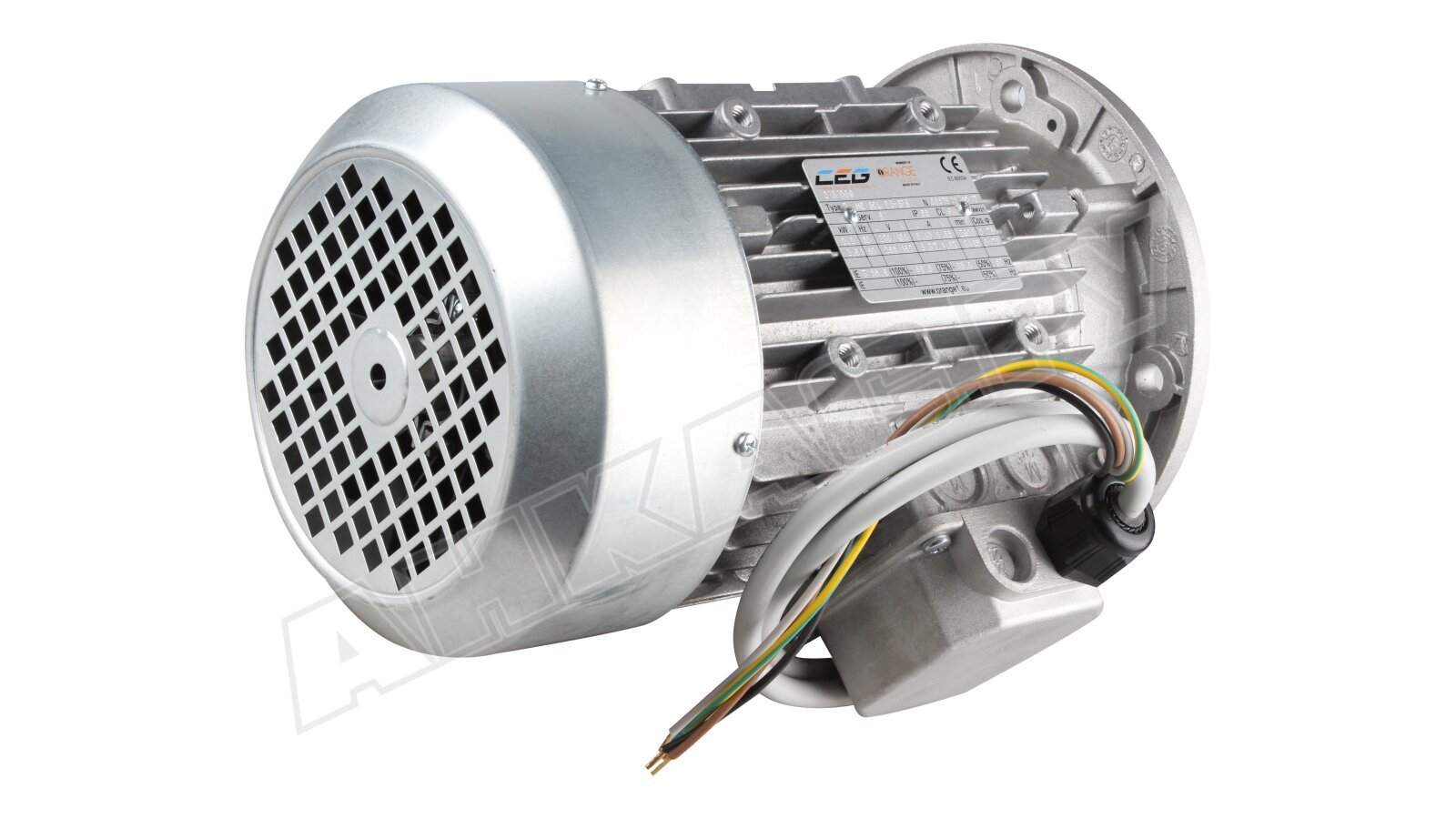

The photo shows the RSS 90-24-4 from the same series. Source: gorelco.ru

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The RSS 80-19-4 from Ceg Sss is a three-phase induction motor. The rated output is 0.75 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 80 M in foot-mounted form. The protection class is IP58. The efficiency is 85.1 per cent at full load, 84.2 per cent at 75 per cent load and 80.8 per cent at half load. The motor is built in China. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to AS/NZS 1359.102.3:2000. Rated output within this group ranges from 0.18 to 1,119 kW; the RSS 80-19-4 sits at the bottom of that range with 0.75 kW. Its immediate neighbours are the TTW01 below it with 0.73 kW and the 3514167 above it with 0.9 kW.

CEG SSS – other models: the collective page of MEPS-registered three-phase motors outside the named ranges, frame sizes 80 to 90, 0.75 to 1.5 kW, four-pole, manufactured in China

This page gathers the CEG SSS three-phase motors the Australian energy-efficiency register (GEMS/MEPS) could not assign to a named range. The designations recorded in the register, RSS 80-19-4 and RSS 90-24-4, recognisably follow a scheme of the IEC frame size (80, 90), a further two-digit code and the pole count at the end (here 4 in both cases, for four-pole versions).

Read on 3 more paragraphs

The register lists here 2 versions with 0.75 to 1.5 kW rated output, both four-pole, for a 400 V or 400/230 V supply, with a full-load efficiency of 85.1% and at 75% load from 84.2 to 84.8%. Protection ranges from IP56 to IP58, frame sizes from 80 to 90; the mounting code covers a broad spectrum of installation positions with B3, B34, B35, B5, B6, B7, B8 and the vertical forms V1, V3, V4, V15, V18, V19 and V36. Manufacturing takes place in China, testing followed AS/NZS 1359.5:2004 with test method B.

Four-pole three-phase motors of this small power class run at a synchronous speed of 1,500 rpm at 50 Hz and are a classic drive for small pumps, fans and conveying equipment; the broad range of mounting codes allows installation in both foot and flange form as well as in several vertical positions.

When buying used, bearing condition and a checked insulation resistance of the winding, the tightness of the terminal box and shaft lead-through given the high protection classes, the condition of shaft and key, and a legible nameplate with frame size, pole count and protection rating matter. Spares run through CEG SSS's Chinese distribution.

Sources: SpecCodex register, model data: CEG SSS (weitere Modelle, MEPS-Registrierungen)

Technical data

Engine

Rated output	0.75 kWcorrect

Electrical data

Rated voltage	400/230 Vcorrect
Number of poles	4correct
Protection class	IP58correct
Frame size	80 M (foot)correct
Mounting (IEC 60034-7)	B3, B34, B35, B5, B6, B7, B8, V1, V3, V15, V18, V19, V36, V4correct
Efficiency at full load	85.1 %correct
Efficiency at 75 % load	84.2 %correct
Efficiency at half load	80.8 %correct

Origin and approval

Country of manufacture	Chinacorrect

Other data

Standard applied	AS/NZS 1359.5:2004correct
Test method	AS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Ceg Sss RSS 80-19-4 have?

The Ceg Sss RSS 80-19-4 delivers 0.8 kW.

What to check before buying

Match the data plate against the order: frame size, mounting and rating have to agree.
Check the ingress rating against the installation site — outdoors or in dust the demands differ.
Hold the mounting form and dimensions against the existing seat before ordering.
The pole count sets the speed — when replacing an older unit, compare this first.
For used units, ask about winding condition and bearing play.
Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
