Caterpillar Challenger – specifications
Built: 2002 · Series: Challenger
Data for the version built 2002 · Data origin: Official register · sources
More machines from model year 2002
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

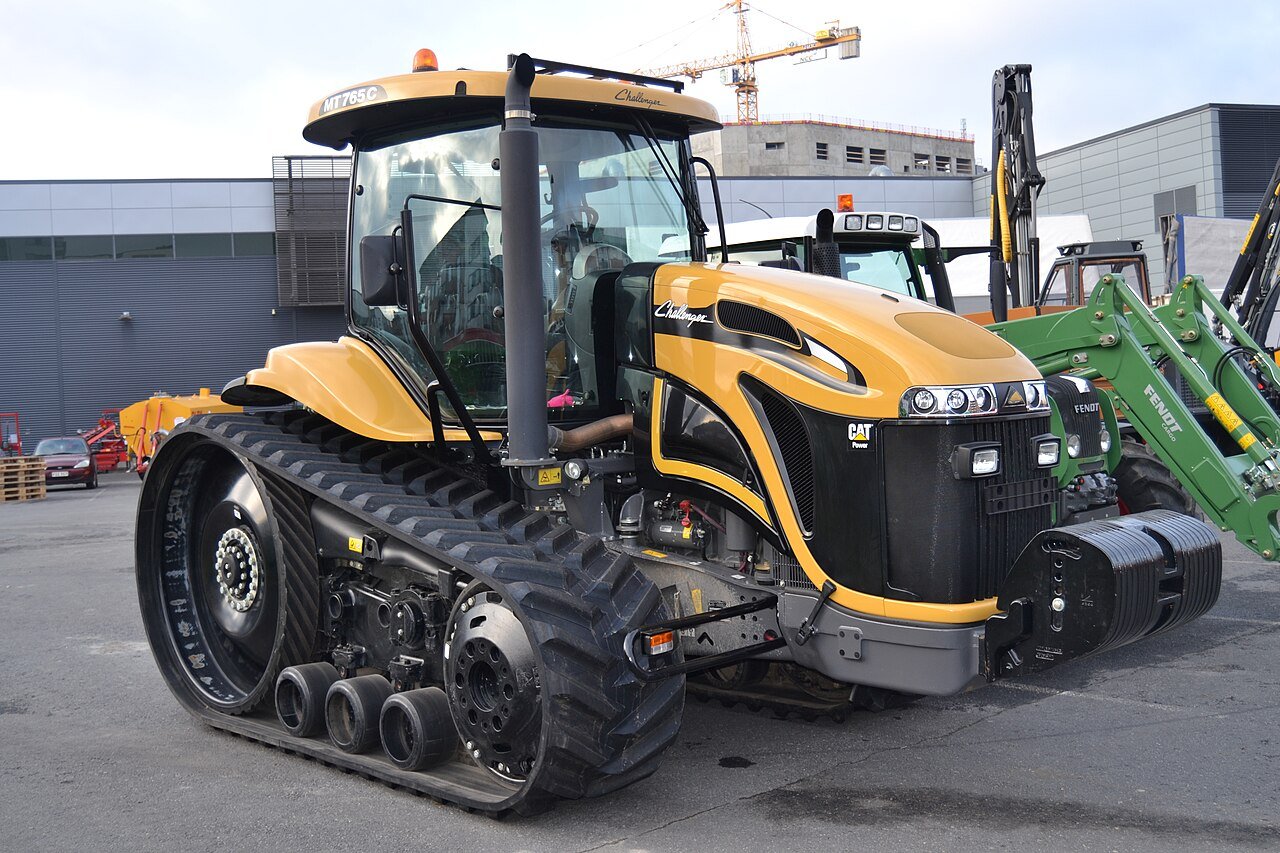

Caterpillar Challenger – tracked tractors from Peoria: the range from 1987 to the 2002 handover to AGCO, outputs from 138 to 236 kW and engines from the 3126 and C-9 families
Caterpillar developed the Challenger range at its Peoria, Illinois plant as the first series-produced farm tractor with rubber-track running gear. Production began in 1987 and was handed over to AGCO in 2002, which has continued the Challenger brand for large tractors ever since. The register groups both the classic tracked models and later versions of the range under this slug.
Read on 3 more paragraphs
The register lists 7 versions with 138 to 236 kW rated output at 1,000 to 2,100 rpm. The six-cylinder engines come from the Caterpillar range with the type designations 3126 and C-9 and produce between 7,200 and 10,466 cm³ displacement. Operating weights range from 9,977 to 15,000 kg, lengths from 5,360 to 6,000 mm.
With its track running gear, the Challenger occupied its own market niche between classic wheeled tractors and bulldozers: the large footprint lowers ground pressure and allows fieldwork even on wet soils where wheeled tractors would sink in. Competition came chiefly from John Deere with its own tracked-tractor range.
When buying used, the wear condition of the track belt, rollers and drive wheels ranks among the most expensive checks, along with the tightness of the tensioning gear. On engines from the 3126 and C-9 families, it is worth checking the injection pump, turbocharger and cooling system; spare parts run through either the Caterpillar or the AGCO network depending on the build year.
Sources: SpecCodex register, model data: Caterpillar Challenger
Technical data
Engine
| Power | 236 kWcorrect |
|---|---|
| Displacement | 8,900 cm³correct |
Dimensions and weights
| Length | 6,000 mmcorrect |
|---|---|
| Width | 2,800 mmcorrect |
| Unladen weight | 9,977 kgcorrect |
Where this model stands
Power-to-weight ratio: 23.7 kW/t (236 kW / 10 t)
Power class: Heavy (> 180 hp)
Stronger than 97% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Caterpillar Challenger have?
The Caterpillar Challenger delivers 236 kW.
How much does the Caterpillar Challenger weigh?
The unladen weight is 9,977 kg.
What engine does the Caterpillar Challenger have?
8,900 cm³ displacement.
What are the dimensions of the Caterpillar Challenger?
6,000 mm × 2,800 mm.
When was the Caterpillar Challenger built?
Production years: 2002.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 6 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
