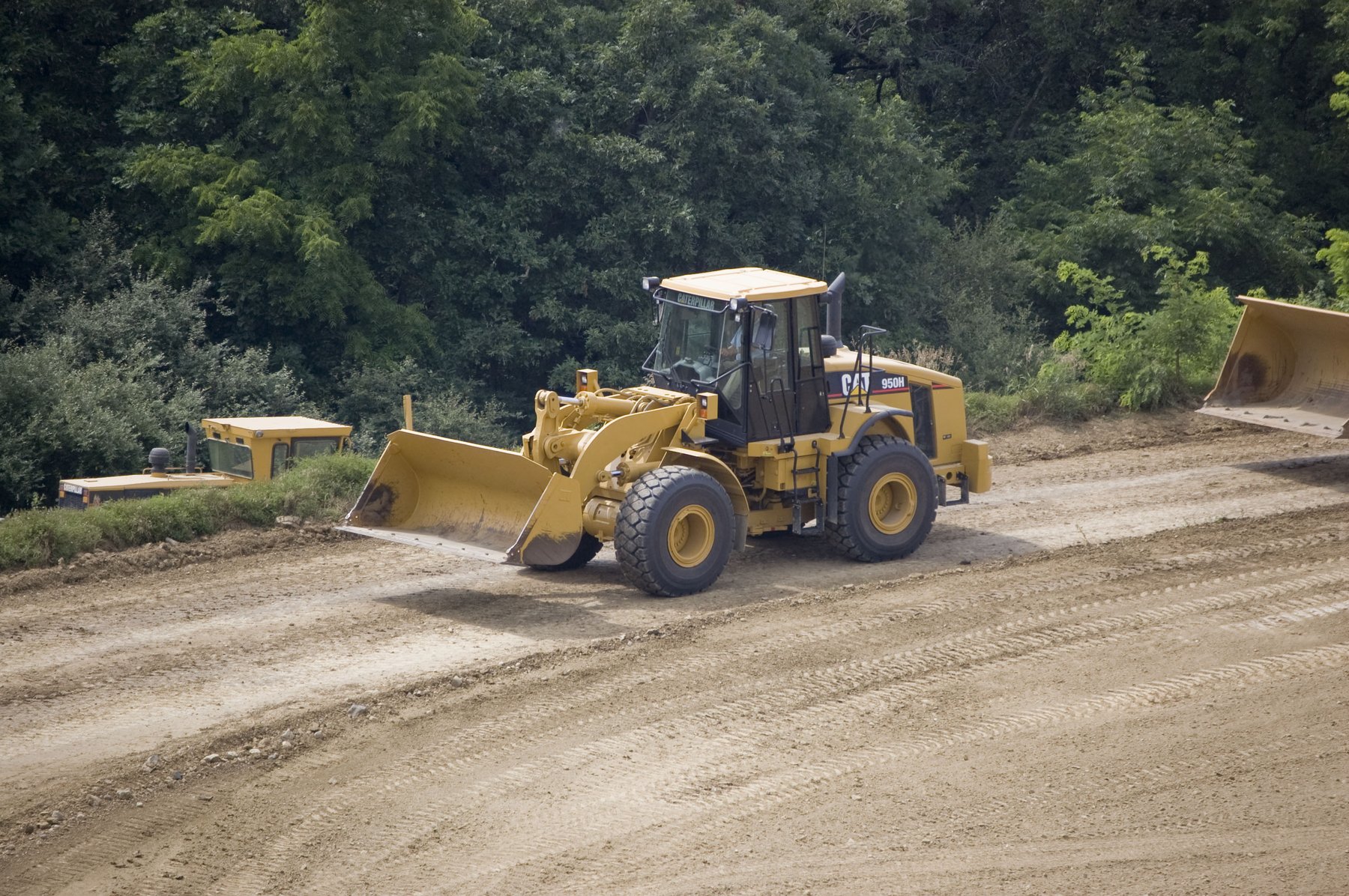

Caterpillar 950H

Series: Caterpillar Wheel Loader

Source: https://commons.wikimedia.org/w/index.php?curid=5154739 upl

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar Wheel Loader series from Caterpillar includes the 950H. The engine delivers 220 hp (146.9 kW), has 6 cylinders, with a displacement of 7,193.9 cm³. Torque is 907 Nm. Rated speed is 1,800 rpm. The unladen weight is 18,341 kg. The wheelbase measures 3,352.8 mm. Ground clearance is 411.5 mm. The tank holds 314.2 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. The pump delivers 268.8 l/min. The hydraulic tank holds 109.8 litres. The cooling system holds 41.6 litres. The electrical system runs on 24 V. The engine fitted is the Cat C7 ACERT. Tyre size: 23,5R25. The Caterpillar Wheel Loader series covers 78 models. Rated output within it ranges from 42.6 to 1,598.9 hp; the 950H sits at the bottom of that range with 220 hp. Its immediate neighbours are the 966E below it with 219 hp and the 962H above it with 233.2 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Wheel loaders. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCat C7 ACERTcorrect
Power220 hp (146.9 kW)correct
Rated speed1,800 rpmcorrect
Torque907correct
Cylinders6correct
Displacement7,193.9 cm³correct
Coolant capacity41.6 lcorrect

Dimensions and weights

Wheelbase3,352.8correct
Ground clearance411.5correct
Unladen weight18,341 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears4correct
Reverse gears4correct
Tyre size23.5R25correct
System voltage24 Vcorrect

Working data

Pump flow268.8 l/mincorrect
Hydraulic oil capacity109.8 lcorrect
Fuel tank capacity314.2 lcorrect

Other data

Height3,453.4correct

Where this model stands

Power-to-weight ratio: 8 kW/t (147 kW / 18.3 t)

Stronger than 72% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar 950H have?

The Caterpillar 950H delivers 220 hp.

How much does the Caterpillar 950H weigh?

The unladen weight is 18,341 kg.

What engine does the Caterpillar 950H have?

6 cylinders, 7,194 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
