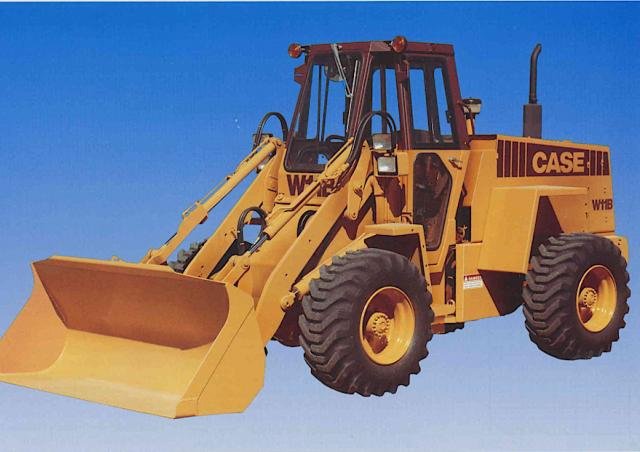

Case W11
Series: Case Wheel Loader
The Case W11 is a model in the Case Wheel Loader series. The engine delivers 60.8 hp (41 kW), has 4 cylinders, with a displacement of 3,400.3 cm³. The engine comes from Case. Rated speed is 2,100 rpm. The wheelbase measures 2,340.9 mm. Ground clearance is 256 mm. The tank holds 106.4 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,300 rpm. The hydraulic tank holds 53.4 litres. The cooling system holds 15.1 litres. The electrical system runs on 12 V. The engine fitted is the G207D. The Case Wheel Loader series covers 71 models. Rated output within it ranges from 55 to 359.9 hp; the W11 sits at the bottom of that range with 60.8 hp. Its immediate neighbours are the 121E below it with 59.8 hp and the 221D above it with 61.3 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.
Technical data
Engine
| Engine make | Casecorrect |
|---|---|
| Engine model | G207Dcorrect |
| Power | 60.8 hp (41 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,400.3 cm³correct |
| Coolant capacity | 15.1 lcorrect |
Dimensions and weights
| Length | 5,111.5correct |
|---|---|
| Wheelbase | 2,340.9correct |
| Ground clearance | 256correct |
Drivetrain and chassis
| Gearbox type | powershift transmissioncorrect |
|---|---|
| Forward gears | 3correct |
| Reverse gears | 3correct |
| System voltage | 12 Vcorrect |
Working data
| Hydraulic oil capacity | 53.4 lcorrect |
|---|---|
| Fuel tank capacity | 106.4 lcorrect |
Other data
| Height | 2,392.7correct |
|---|
Frequently asked questions
How much power does the Case W11 have?
The Case W11 delivers 60.8 hp.
What engine does the Case W11 have?
4 cylinders, 3,400 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
