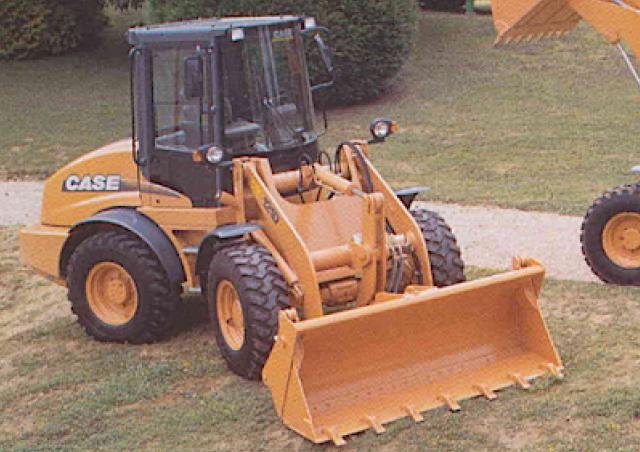

Case 221D

Series: Case Wheel Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case Wheel Loader series from Case includes the 221D. The engine delivers 61.3 hp (42.9 kW), has 4 cylinders, with a displacement of 3,113.5 cm³. Torque is 184.4 Nm. Rated speed is 2,500 rpm. The unladen weight is 5,349.2 kg. The wheelbase measures 2,252.5 mm. Ground clearance is 362.7 mm. The tank holds 99.9 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,700 rpm. The pump delivers 65.9 l/min. The hydraulic tank holds 15.5 litres. The cooling system holds 12.1 litres. The electrical system runs on 12 V. The engine fitted is the F4M2011. Tyre size: 365/80 R20. The Case Wheel Loader series covers 71 models. Rated output within it ranges from 55 to 359.9 hp; the 221D sits at the bottom of that range with 61.3 hp. Its immediate neighbours are the W11 below it with 60.8 hp and the 121F above it with 64.9 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelF4M2011correct
Power61.3 hp (42.9 kW)correct
Rated speed2,500 rpmcorrect
Torque184.4correct
Speed at max. torque1,700 rpmcorrect
Cylinders4correct
Displacement3,113.5 cm³correct
Coolant capacity12.1 lcorrect

Dimensions and weights

Wheelbase2,252.5correct
Ground clearance362.7correct
Unladen weight5,349.2 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
Forward gears2correct
Reverse gears2correct
Tyre size365/80 R20correct
System voltage12 Vcorrect

Working data

Pump flow65.9 l/mincorrect
Hydraulic oil capacity15.5 lcorrect
Fuel tank capacity99.9 lcorrect

Other data

Height2,795correct

Where this model stands

Power-to-weight ratio: 8 kW/t (43 kW / 5.3 t)

Stronger than 12% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case 221D have?

The Case 221D delivers 61.3 hp.

How much does the Case 221D weigh?

The unladen weight is 5,349 kg.

What engine does the Case 221D have?

4 cylinders, 3,114 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
