Start › Tractors › Case New Holland › TG series › TG 210

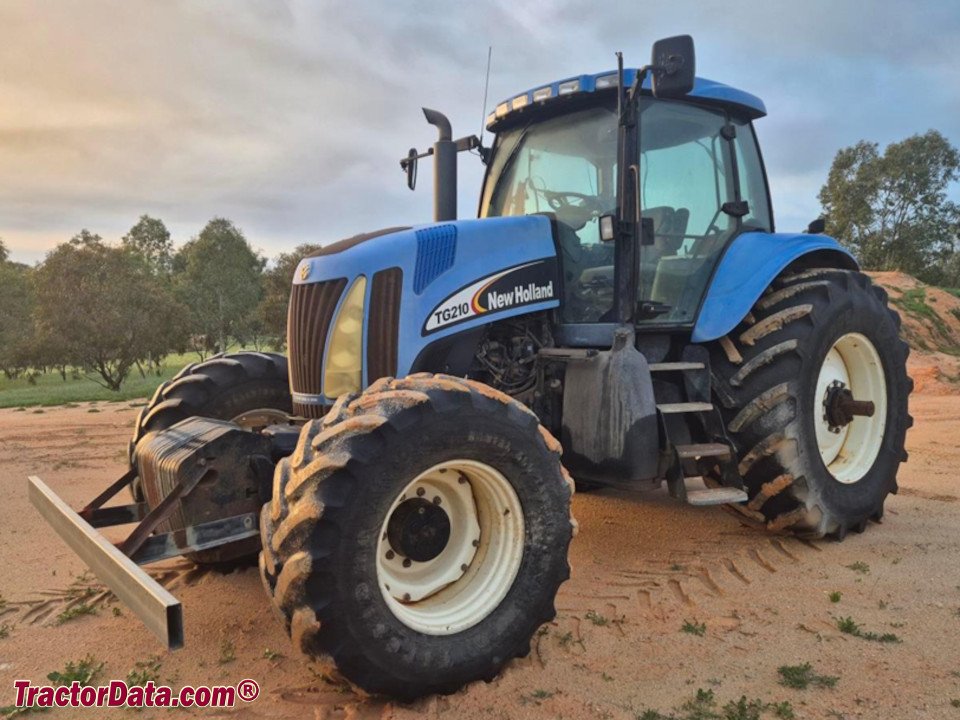

Case New Holland TG 210

Built: 2002–2005 · Series: TG-Baureihe

More machines from model year 2002

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TG series from Case New Holland includes the TG 210. Production: 2002–2005. The engine delivers 210 hp (154.5 kW), has 6 cylinders, with a displacement of 8,268 cm³. Rated speed is 2,200 rpm. The machine is 5,775 mm long, 3,048 mm wide and 3,175 mm high. The unladen weight is 9,283 kg. The wheelbase measures 3,078 mm. Ground clearance is 350 mm. Top speed is 40 km/h. Transmission: 18 V/4 R or 24 V/6 R. The engine is water-cooled. Tyres: front 420/90 R 30 AS, rear 520/85 R 42 AS. The fuel is diesel. The bore measures 114 mm. The stroke is 135 mm. The compression ratio is 17:1. Construction: unit construction (no separate frame). The TG-Baureihe series covers 4 models. Rated output within it ranges from 210 to 283 hp; the TG 210 sits at the bottom of that range with 210 hp. Its immediate neighbours are the TG 230 above it with 231 hp. Unladen weight within it ranges from 9,231 to 9,643 kg; here the TG 210 sits at the bottom of that range with 9,283 kg. 84 Case New Holland models across 17 series are on record.

Case New Holland TG series – large tractors from Racine: TG 210 to TG 285, built 2002 to 2007, six-cylinders with 8.3-litre displacement and 155 to 208 kW

The TG series is a register name from the Case New Holland (CNH) era for large tractors built from 2002 to 2007 at the American plant in Racine, Wisconsin. The four models TG 210, TG 230, TG 255 and TG 285 are staggered by rising power through their type number and carry the same six-cylinder diesel engine with 8.3 litres of displacement.

Read on 3 more paragraphs

The register lists 4 versions with 154.5 to 208.1 kW from the shared six-cylinder with 8,268 cm³ displacement. Unladen weights range from 9,231 to 9,643 kg at a uniform length of 5,775 mm and uniform width of 3,048 mm, heights from 3,175 to 3,270 mm; the rated speed is uniformly 2,200 rpm.

With outputs up to 208 kW, the TG series counts among the large field tractors for farms with high draft-power needs, competing with comparable series from John Deere, Fendt and Massey Ferguson of the same era. It is used mainly for tillage, sowing, transport work and powering trailed harvesting machinery.

When buying used, the operating hours on the six-cylinder, the condition of the lift hydraulics and PTO, the tightness of turbocharger and cooling system, and wear on the front axle and tyres all matter. Spare parts run through the Case IH and New Holland dealer network. It is also worth checking the on-board electronics, cab mounting and seat suspension, and tyre tread depth.

Sources: SpecCodex register, model data: Case New Holland TG-Baureihe, New Holland Agriculture (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	210 hp (154.5 kW)correct
Rated speed	2,200 rpmcorrect
Cylinders	6correct
Displacement	8,268 cm³correct
Bore	114 mmcorrect
Stroke	135 mmcorrect
Compression ratio	17correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	5,775 mmcorrect
Width	3,048 mmcorrect
Height	3,175 mmcorrect
Wheelbase	3,078 mmcorrect
Ground clearance	350 mmcorrect
Unladen weight	9,283 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	18 V/4 R or 24 V/6 Rcorrect
Front tyres	420/90 R 30 AScorrect
Rear tyres	520/85 R 42 AScorrect
Top speed	40 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 16.6 kW/t (154 kW / 9.3 t)

Power class: Heavy (> 180 hp)

Stronger than 92% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case New Holland TG 210 have?

The Case New Holland TG 210 delivers 210 hp.

How much does the Case New Holland TG 210 weigh?

The unladen weight is 9,283 kg.

What engine does the Case New Holland TG 210 have?

6 cylinders, 8,268 cm³ displacement, Diesel.

How fast does the Case New Holland TG 210 go?

Top speed is 40 km/h.

What are the dimensions of the Case New Holland TG 210?

5,775 mm × 3,048 mm × 3,175 mm.

When was the Case New Holland TG 210 built?

Production years: 2002–2005.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
