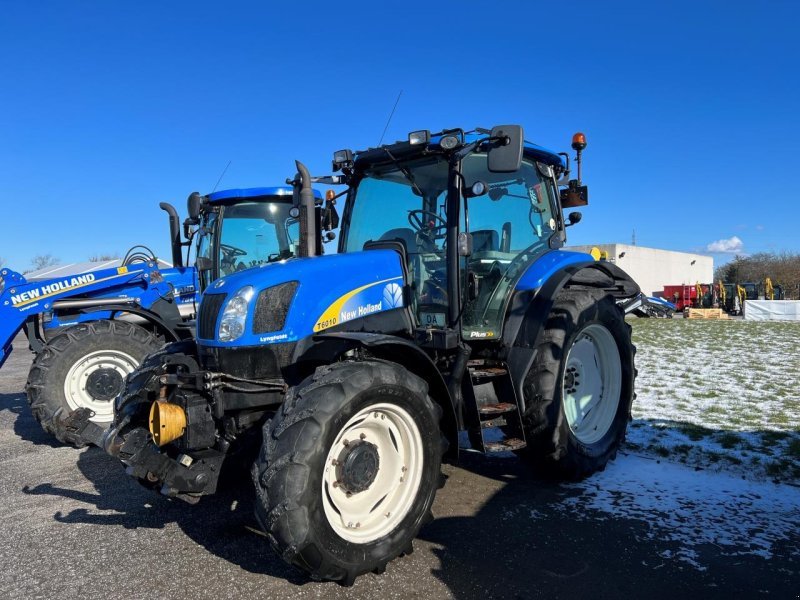

Case New Holland T 6010 Plus
Built: 2007–2012 · Series: T 6000 er-Plus-Baureihe
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland T6000 Plus (2007–2012) – the middle equipment line of the T6000 range from Basildon: T6010 to T6070 Plus, the number as power step, Range Command and power boost
Plus was the middle of the three equipment lines in which New Holland offered the T6000 range from 2007 to 2012 – between Delta with mechanical transmission and Elite with full specification the version with Range Command semi-powershift, engine power boost, electronic linkage control and mechanically suspended cab, built in Basildon, England. The type logic: T marks the tractor ranges of the blue programme, 6 the mid-range series, the following digits the power step – T6010 about 101 hp and T6020 about 112 hp with four-cylinder, T6030 117 hp, T6050 125 hp and T6070 141 hp with six-cylinder – Plus the line. The engines are FPT's NEF range: the four-cylinder of 4.5 litres in the T6010 and T6020, the six-cylinder of 6.7 litres in the others, at 2,200 rpm, with common-rail injection and power boost for PTO and transport work, which the register notes with diesel and biodiesel as fuel.
Read on 3 more paragraphs
The register lists 5 versions with 74.3 to 103.7 kW from four- and six-cylinders of 4,485 to 6,728 cm³, torque from 410 to 663 Nm, unladen weights from 5,060 to 6,030 kg, a length of 4,950 mm, a width of 2,280 mm and a height of 2,925 mm.
The Plus models were the best-selling line of the T6000 – the version for farms that wanted powershift but not the Elite's electronics; their successors are the T6 with Electro Command from 2012.
On used tractors, operating hours, engine and common-rail injection, Range Command transmission (powershift clutches, calibration), hydraulics and electronics, cab and loader mounting and parts supply through CNH count.
Sources: SpecCodex register, model data: New Holland T6000 Plus, New Holland Agriculture (Hersteller, Basildon)
Technical data
Engine
| Fuel | Diesel/Biodieselcorrect |
|---|---|
| Power | 101 hp (74.3 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 410 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,485 cm³correct |
| Bore | 104 mmcorrect |
| Stroke | 132 mmcorrect |
| Compression ratio | 17.5correct |
| Injection pressure | 260 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,950 mmcorrect |
|---|---|
| Width | 2,280 mmcorrect |
| Height | 2,925 mmcorrect |
| Wheelbase | 2,652 mmcorrect |
| Ground clearance | 478 mmcorrect |
| Unladen weight | 5,060 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24 V/24 R, 16 V/16 R and 17 V/16 Rcorrect |
| Front tyres | 480/65 R 28 AScorrect |
| Rear tyres | 600/65 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 14.7 kW/t (74 kW / 5.1 t)
Power class: Large (100–180 hp)
Stronger than 67% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case New Holland T 6010 Plus have?
The Case New Holland T 6010 Plus delivers 101 hp.
How much does the Case New Holland T 6010 Plus weigh?
The unladen weight is 5,060 kg.
What engine does the Case New Holland T 6010 Plus have?
4 cylinders, 4,485 cm³ displacement, Diesel/Biodiesel.
How fast does the Case New Holland T 6010 Plus go?
Top speed is 40 km/h.
What are the dimensions of the Case New Holland T 6010 Plus?
4,950 mm × 2,280 mm × 2,925 mm.
When was the Case New Holland T 6010 Plus built?
Production years: 2007–2012.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
