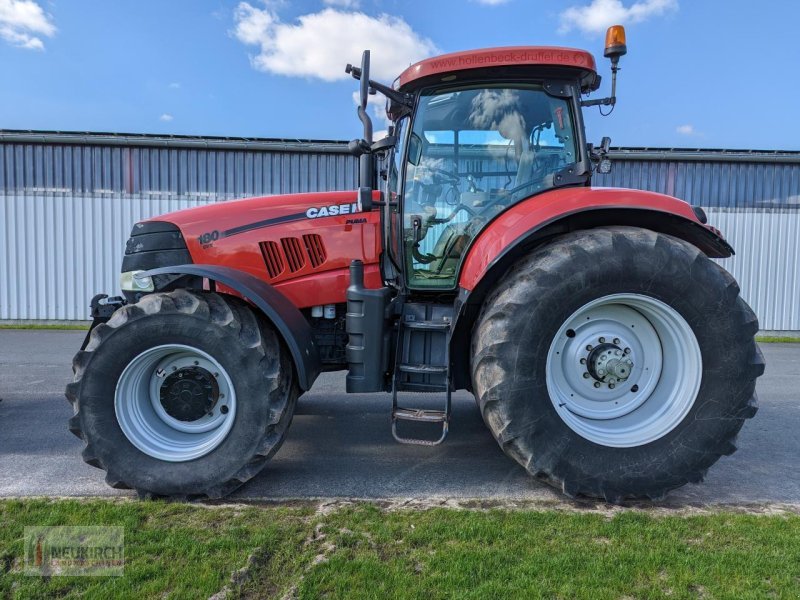

Case IH PUMA CVX 180
Built: 2009–2012 · Series: PUMA CVX
More machines from model year 2009
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Puma CVX 180: multi-purpose tractor with a 6,750cc six-cylinder diesel, 160 kW (215 hp), a continuously variable transmission and 50 km/h top speed, built 2009 to 2012
Case IH is the agricultural brand of CNH Industrial, tracing back to the 1985 merger of the Case Corporation with International Harvester's agricultural tractor business. The Puma range covers the brand's large multi-purpose tractors; the CVX suffix marks the versions fitted with a continuously variable transmission.
Read on 3 more paragraphs
The Puma CVX 180 carries a water-cooled six-cylinder diesel engine of 6,750 cm³, producing 160 kW (215 hp) at 1,800 rpm. Power runs through a continuously variable transmission which, in this version, is rated for 50 km/h but can be reduced to a lower top speed. The tyres are 540/65 R30 at the front and 650/65 R42 at the rear.
With 160 kW and a continuously variable transmission, the Puma CVX 180 ranks among the powerful multi-purpose tractors designed to combine heavy tillage, trailer work at 50 km/h and precise, load-independent forward speed for drilling or spraying work; the stepless transmission allows travel speed to be matched to the power required without a gear change.
When buying a Puma CVX used, the condition of the continuously variable transmission matters most, since repairs to it are costlier than to a conventional gearbox, along with the service history for oil and hydraulic fluid changes. Also worth checking are the tyres in the sizes noted above, the tightness of the cooling system on the large six-cylinder engine, and the function of the transmission electronics.
Sources: SpecCodex-Register: Kennwerte des Modells Case IH Puma CVX 180, Case IH (manufacturer)
Technical data
Engine
| Power | 215 hp (160 kW)correct |
|---|---|
| Rated speed | 1,800 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,750 cm³correct |
| Cooling | water-cooledcorrect |
Drivetrain and chassis
| Gearbox | Stufenloses 50kmh Getriebe, reduz. Möglichcorrect |
|---|---|
| Front tyres | 540/65 R30correct |
| Rear tyres | 650/65 R42correct |
| Top speed | 50 km/hcorrect |
Frequently asked questions
How much power does the Case IH PUMA CVX 180 have?
The Case IH PUMA CVX 180 delivers 215 hp.
What engine does the Case IH PUMA CVX 180 have?
6 cylinders, 6,750 cm³ displacement.
How fast does the Case IH PUMA CVX 180 go?
Top speed is 50 km/h.
When was the Case IH PUMA CVX 180 built?
Production years: 2009–2012.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
