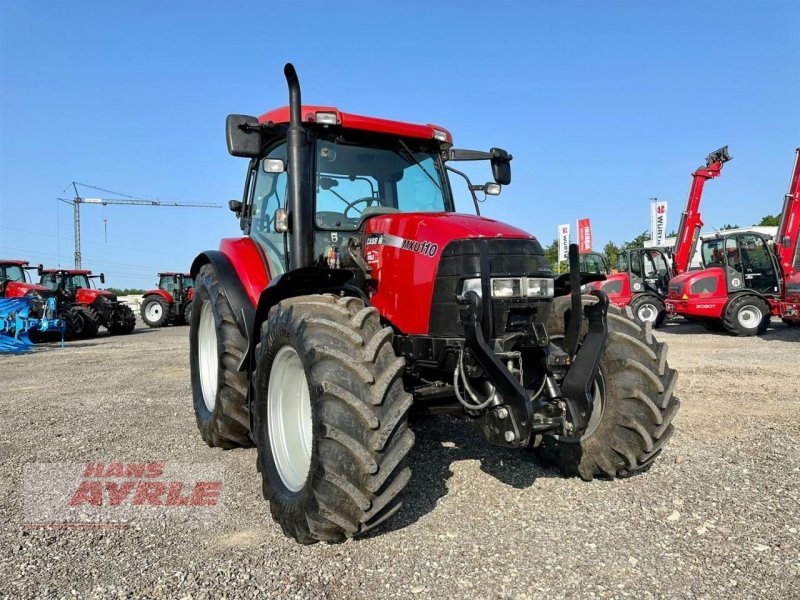

Case IH MXU 110 MAXXUM
Built: 2004–2006 · Series: MXU
More machines from model year 2004
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH MXU Maxxum – Mid Series Before the Puma, 2003 to 2006, with Four- and Six-Cylinder Engines, 73.5 to 119 kW and Operating Weight from 4,674 to 5,473 kg
Alongside the larger MXM series, Case IH offered the MXU series as a mid-range Maxxum class from 2003 to 2006. According to the register, output of the recorded models ranges from 73.5 to 119 kW, using four- and six-cylinder engines with displacement from 4,485 to 6,728 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 4,674 to 5,473 kg, wheelbase from 2,412 to 2,652 mm, and top speed of the listed models is 40 km/h.
The MXU series covered the segment between the more compact JX models and the larger MXM series in the Case IH range, aimed at medium arable and mixed farms. For a used MXU model, distinguishing the four- and six-cylinder versions matters, as weight and displacement differ accordingly.
With rated outputs from 73.5 to 119 kW, the MXU series falls within ISO 730 Category II to III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute for medium-duty to heavy implements. Case IH remains part of the CNH Industrial group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing Case IH parts network, even though the MXU itself has since been replaced in the Case IH line-up by newer, technically quite different designs, which makes planning for the long-term upkeep of an existing MXU somewhat easier.
Sources: SpecCodex register, model data: Case IH MXU Maxxum, Case IH
Technical data
Engine
| Fuel | Diesel/RMEcorrect |
|---|---|
| Power | 110 hp (80.9 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,485 cm³correct |
| Bore | 104 mmcorrect |
| Stroke | 132 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,265 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Height | 2,860 mmcorrect |
| Wheelbase | 2,412 mmcorrect |
| Ground clearance | 356 mmcorrect |
| Unladen weight | 5,188 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16 V/16 R, 17 V/16 R and 24 V/24 Rcorrect |
| Front tyres | 480/65 R 28 AScorrect |
| Rear tyres | 600/65 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.6 kW/t (81 kW / 5.2 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH MXU 110 MAXXUM have?
The Case IH MXU 110 MAXXUM delivers 110 hp.
How much does the Case IH MXU 110 MAXXUM weigh?
The unladen weight is 5,188 kg.
What engine does the Case IH MXU 110 MAXXUM have?
4 cylinders, 4,485 cm³ displacement, Diesel/RME.
How fast does the Case IH MXU 110 MAXXUM go?
Top speed is 40 km/h.
What are the dimensions of the Case IH MXU 110 MAXXUM?
4,265 mm × 2,550 mm × 2,860 mm.
When was the Case IH MXU 110 MAXXUM built?
Production years: 2004–2006.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
