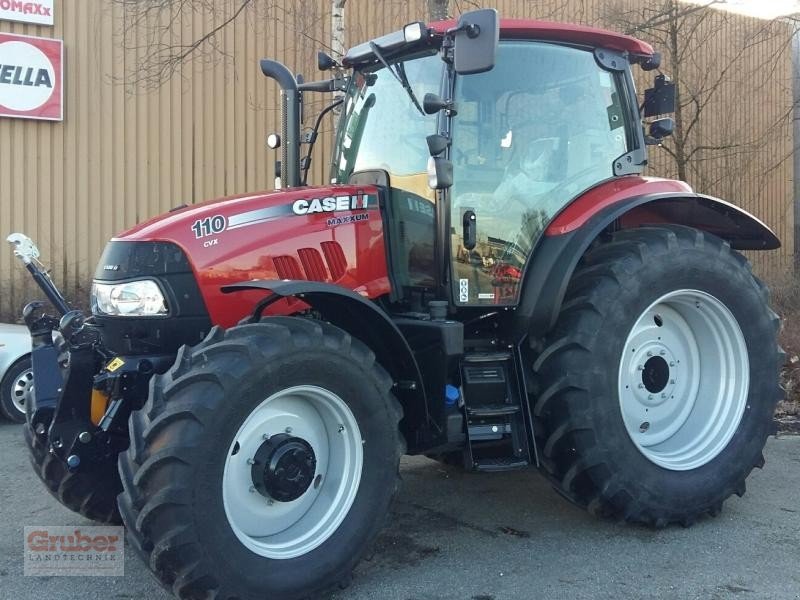

Case IH MAXXUM 110 CVX

Built: 2014 · Series: MAXXUM CVX

More machines from model year 2014

Source: http://www.technikboerse.com/fr/view/nouvelle-machine/tracte

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the MAXXUM 110 CVX, Case IH offers a model from the MAXXUM CVX series. Production: 2014. The engine delivers 110 hp (81 kW), has 4 cylinders, with a displacement of 4,485 cm³. Torque is 498 Nm. Rated speed is 2,200 rpm. The machine is 4,307 mm long, 2,205 mm wide and 2,200 mm high. The unladen weight is 4,990 kg. The wheelbase measures 2,402 mm. Ground clearance is 480 mm. Top speed is 50 km/h. Transmission: continuously variable. The engine is water-cooled. Tyres: front 480/65 R28, rear 600/65 R38. The fuel is diesel. Construction: standard tractor. Rated output across the Case IH range ranges from 31.4 to 500 hp; the MAXXUM 110 CVX sits in the lower part of that range with 110 hp. Its immediate neighbours are the 5240 (DT) below it with 108 hp and the Maxxum 100 Pro above it with 111.5 hp. Rated output across the Case IH range ranges from 36 to 500 hp; here the MAXXUM 110 CVX sits in the lower part of that range with 110 hp. 1222 Case IH models across 76 series are on record.

Case IH MAXXUM 110 CVX: field tractor with a stepless CVX transmission, a water-cooled 4,485cc four-cylinder diesel and 81 kW of power

Case IH continues MAXXUM as an established series in the mid power range; the brand's CVX designation stands for a stepless transmission that keeps engine speed in the economical range independent of driving speed.

Read on 3 more paragraphs

The MAXXUM 110 CVX carries a water-cooled four-cylinder diesel engine with 4,485 cc of displacement, producing 81 kW (110 hp) at 2,200 rpm and delivering 498 Nm of torque. At 4,307 mm long, 2,205 mm wide and with a 2,402 mm wheelbase, the machine weighs 4,990 kg; overall height is 2,200 mm and top speed reaches 50 km/h.

The stepless CVX transmission allows any driving speed to be reached independent of engine speed, saving fuel especially during varying towing work and haulage. At a top speed of 50 km/h, the MAXXUM 110 CVX falls into the German licence category T, which covers vehicles up to 60 km/h, making it suited to longer road runs between field and farm as well.

When buying a used MAXXUM 110 CVX, the condition of the stepless transmission matters, since repairing damage to the CVX gearbox is more involved than with a classic manual gearbox. Also worth checking are the clutch, the tightness of the cooling system and hydraulics, and brake condition given the comparatively high top speed of 50 km/h. It is also worth asking for the CVX gearbox's service history and checking the level and condition of the transmission oil.

Sources: SpecCodex-Register: Kennwerte des Modells Case IH MAXXUM 110 CVX, Case IH (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	110 hp (81 kW)correct
Rated speed	2,200 rpmcorrect
Torque	498 Nmcorrect
Cylinders	4correct
Displacement	4,485 cm³correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,307 mmcorrect
Width	2,205 mmcorrect
Height	2,200 mmcorrect
Wheelbase	2,402 mmcorrect
Ground clearance	480 mmcorrect
Unladen weight	4,990 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	continuously variablecorrect
Front tyres	480/65 R28correct
Rear tyres	600/65 R38correct
Top speed	50 km/hcorrect

Origin and approval

Construction	Standardschleppercorrect

Where this model stands

Power-to-weight ratio: 16.2 kW/t (81 kW / 5 t)

Power class: Large (100–180 hp)

Stronger than 71% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case IH MAXXUM 110 CVX have?

The Case IH MAXXUM 110 CVX delivers 110 hp.

How much does the Case IH MAXXUM 110 CVX weigh?

The unladen weight is 4,990 kg.

What engine does the Case IH MAXXUM 110 CVX have?

4 cylinders, 4,485 cm³ displacement, Diesel.

How fast does the Case IH MAXXUM 110 CVX go?

Top speed is 50 km/h.

What are the dimensions of the Case IH MAXXUM 110 CVX?

4,307 mm × 2,205 mm × 2,200 mm.

When was the Case IH MAXXUM 110 CVX built?

Production years: 2014.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
