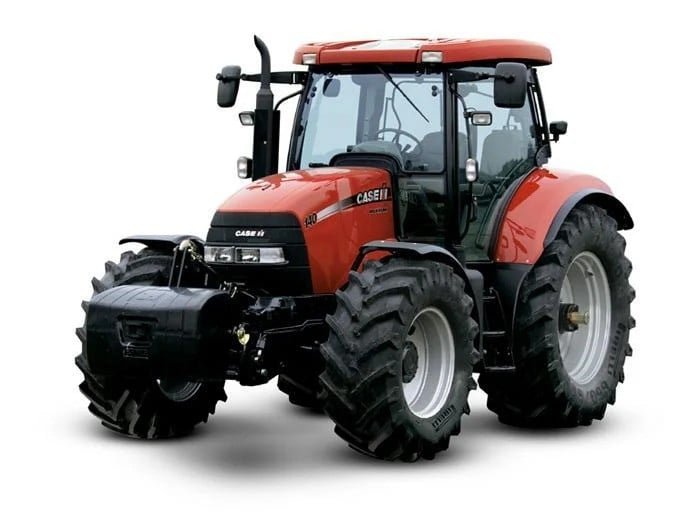

Case IH Maxxum 140 PRO 4WD
Series: Maxxum
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Case IH Maxxum 140 PRO belongs to the Case IH 4WD Tractor series. 141 hp (103.7 kW) is what the six-cylinder engine gets out of 4.5 litres. Rated power is reached at 2,200 rpm.
Within the range, rated power spans from 127 to 456 hp; with 141 hp, the Maxxum 140 PRO sits in the lower third. Directly alongside are the Maxxum 130 PRO with 132 hp below and the Magnum 290 with 288 hp above.
Technical data
Engine
| Power | 140.9 hp (103.7 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | turbocharged/aftercooledcorrect |
Drivetrain and chassis
| Gearbox type | semi powershift transmissioncorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
Working data
| Pump flow | 140.1 l/mincorrect |
|---|---|
| Fuel tank capacity | 176 lcorrect |
Other data
| Height | 2,898.6correct |
|---|
Frequently asked questions
How much power does the Case IH Maxxum 140 PRO have?
The Case IH Maxxum 140 PRO delivers 141 hp.
What engine does the Case IH Maxxum 140 PRO have?
6 cylinders, 4,502 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
