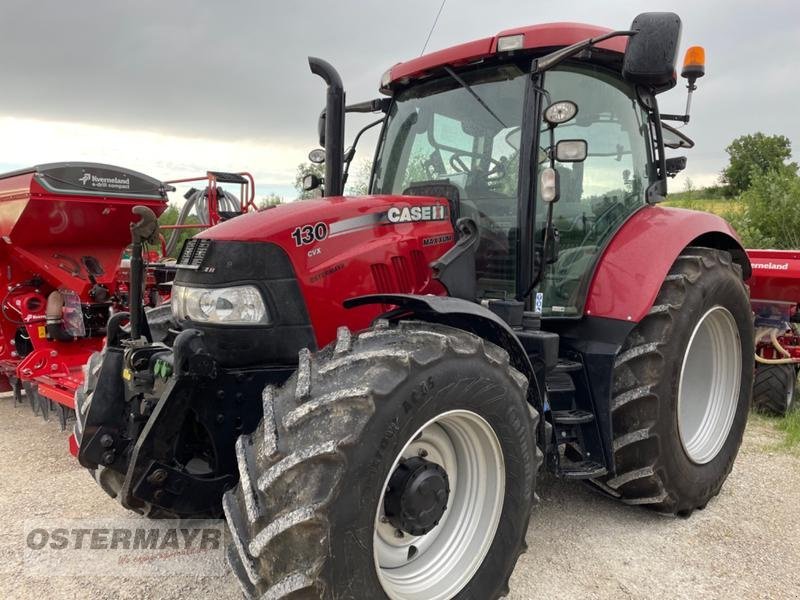

Case IH Maxxum 130 Pro MFWD
Series: Maxxum
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Case IH Maxxum 130 Pro belongs to the Case IH MFWD Tractor series. 132 hp (96.9 kW) is what the four-cylinder engine gets out of 4.5 litres. Rated power is reached at 2,200 rpm.
Unladen, it tips the scales at 4,820 kg. Wheelbase is 2.41 m.
Within the range, rated power spans from 60.8 to 141 hp; with 132 hp, the Maxxum 130 Pro sits at the top. Directly alongside are the Maxxum 125 Pro with 127 hp below and the Maxxum 140 Pro with 141 hp above.
Technical data
Engine
| Power | 131.8 hp (96.9 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | Turbocharged, aftercooledcorrect |
Dimensions and weights
| Wheelbase | 2,414correct |
|---|---|
| Unladen weight | 4,819.9 kgcorrect |
Drivetrain and chassis
| Gearbox type | Semi powershift transmissioncorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
Working data
| Lifting capacity | 4,364 kgcorrect |
|---|---|
| Pump flow | 140.1 l/mincorrect |
| Fuel tank capacity | 176 lcorrect |
| PTO output | 110 hpcorrect |
Where this model stands
Power-to-weight ratio: 20.1 kW/t (97 kW / 4.8 t)
Power class: Large (100–180 hp)
Stronger than 79% of the tractors in the register — out of 15,105 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Maxxum 130 Pro have?
The Case IH Maxxum 130 Pro delivers 132 hp.
How much does the Case IH Maxxum 130 Pro weigh?
The unladen weight is 4,820 kg.
What engine does the Case IH Maxxum 130 Pro have?
4 cylinders, 4,502 cm³ displacement.
What is the PTO output of the Case IH Maxxum 130 Pro?
PTO output is 110 hp.
How much does the rear linkage of the Case IH Maxxum 130 Pro lift?
The rear linkage lifts 4,364 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
