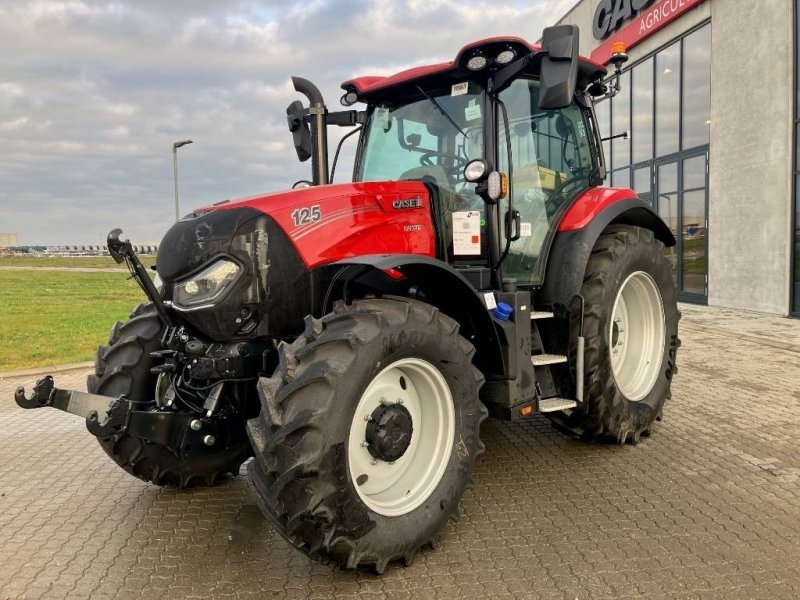

Case IH Maxxum 125 PRO 4WD
Series: Maxxum
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Case IH Maxxum 125 PRO belongs to the Maxxum series. 127 hp (93.2 kW) is what the six-cylinder engine gets out of 6.8 litres. Rated output is reached at 2,200 rpm, so it works in the lower rev range.
Within the range, rated power spans from 90 to 145 hp; with 127 hp, the Maxxum 125 PRO sits in the mid-field. Directly alongside are the 5150 MAXXUM with 125 hp below and the Maxxum 130 PRO with 132 hp above.
Technical data
Engine
| Power | 126.7 hp (93.2 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,751.5 cm³correct |
| Aspiration | turbocharged/aftercooledcorrect |
Drivetrain and chassis
| Gearbox type | semi powershift transmissioncorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
Working data
| Pump flow | 140.1 l/mincorrect |
|---|---|
| Fuel tank capacity | 250.2 lcorrect |
Other data
| Height | 2,898.6correct |
|---|
Frequently asked questions
How much power does the Case IH Maxxum 125 PRO have?
The Case IH Maxxum 125 PRO delivers 127 hp.
What engine does the Case IH Maxxum 125 PRO have?
6 cylinders, 6,752 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
