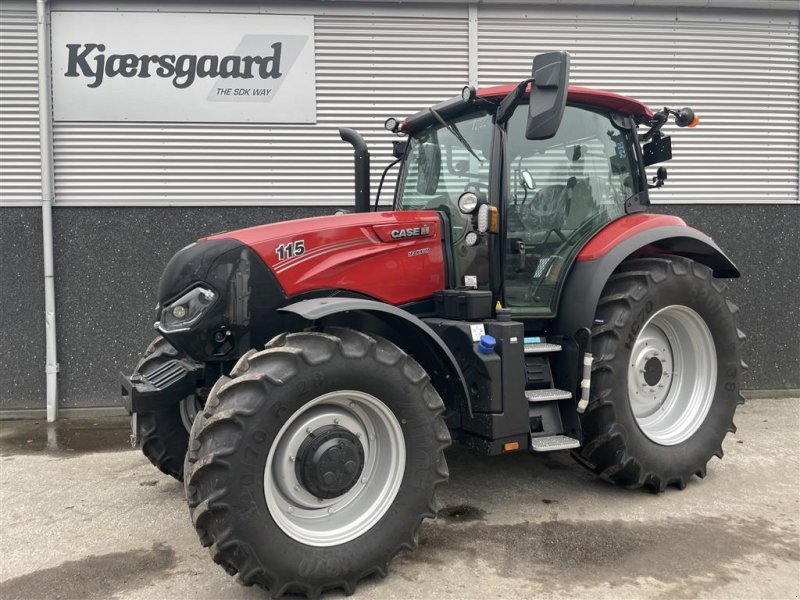

Case IH Maxxum 115 (4859.8 kg) MFWD
Series: Maxxum
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH Maxxum 115 is a tractor from the Case IH MFWD Tractor series. The six-cylinder engine, displacing 6.8 litres, produces 117 hp (85.8 kW). Rated power arrives at 2,200 rpm — the engine pulls from low down rather than needing to be revved.
Unladen, it tips the scales at 4,860 kg. Wheelbase is 2.66 m.
Within the range, rated power spans from 60.8 to 141 hp; with 117 hp, the Maxxum 115 sits in the upper third. Directly alongside are the Maxxum 110 with 112 hp below and the Maxxum 125 with 127 hp above.
Technical data
Engine
| Power | 116.6 hp (85.8 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,751.5 cm³correct |
| Aspiration | Turbocharged, aftercooledcorrect |
Dimensions and weights
| Wheelbase | 2,664correct |
|---|---|
| Unladen weight | 4,859.8 kgcorrect |
Drivetrain and chassis
| Gearbox type | Synchrocorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
Working data
| Lifting capacity | 3,406 kgcorrect |
|---|---|
| Pump flow | 102.6 l/mincorrect |
| Fuel tank capacity | 250.2 lcorrect |
| PTO output | 95 hpcorrect |
Where this model stands
Power-to-weight ratio: 17.7 kW/t (86 kW / 4.9 t)
Power class: Large (100–180 hp)
Stronger than 74% of the tractors in the register — out of 14,914 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Maxxum 115 have?
The Case IH Maxxum 115 delivers 117 hp.
How much does the Case IH Maxxum 115 weigh?
The unladen weight is 4,860 kg.
What engine does the Case IH Maxxum 115 have?
6 cylinders, 6,752 cm³ displacement.
What is the PTO output of the Case IH Maxxum 115?
PTO output is 95 hp.
How much does the rear linkage of the Case IH Maxxum 115 lift?
The rear linkage lifts 3,406 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
