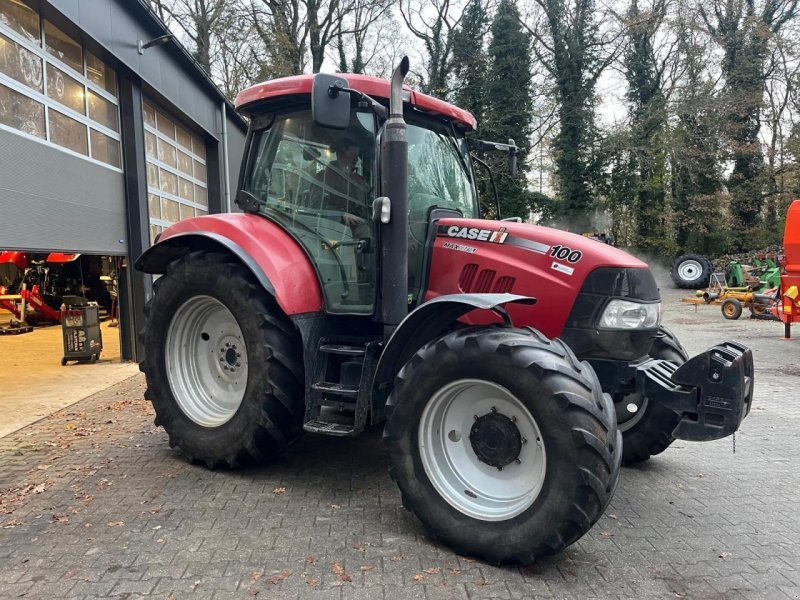

Case IH Maxxum 100 Pro MFWD
Series: Maxxum
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Case IH Maxxum 100 Pro belongs to the Case IH MFWD Tractor series. 112 hp (82 kW) is what the four-cylinder engine gets out of 4.5 litres. Rated power is reached at 2,200 rpm.
Empty, it weighs 4,820 kg. Wheelbase is 2.41 m.
Within the range, rated power spans from 60.8 to 141 hp; with 112 hp, the Maxxum 100 Pro sits in the upper third. Directly alongside are the Farmall 105U with 106 hp below and the Maxxum 115 with 117 hp above.
Technical data
Engine
| Power | 111.5 hp (82 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | Turbocharged, aftercooledcorrect |
Dimensions and weights
| Wheelbase | 2,414correct |
|---|---|
| Unladen weight | 4,819.9 kgcorrect |
Drivetrain and chassis
| Gearbox type | Semi powershift transmissioncorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
Working data
| Pump flow | 140.1 l/mincorrect |
|---|---|
| Fuel tank capacity | 176 lcorrect |
Where this model stands
Power-to-weight ratio: 17 kW/t (82 kW / 4.8 t)
Power class: Large (100–180 hp)
Stronger than 72% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Maxxum 100 Pro have?
The Case IH Maxxum 100 Pro delivers 112 hp.
How much does the Case IH Maxxum 100 Pro weigh?
The unladen weight is 4,820 kg.
What engine does the Case IH Maxxum 100 Pro have?
4 cylinders, 4,502 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
