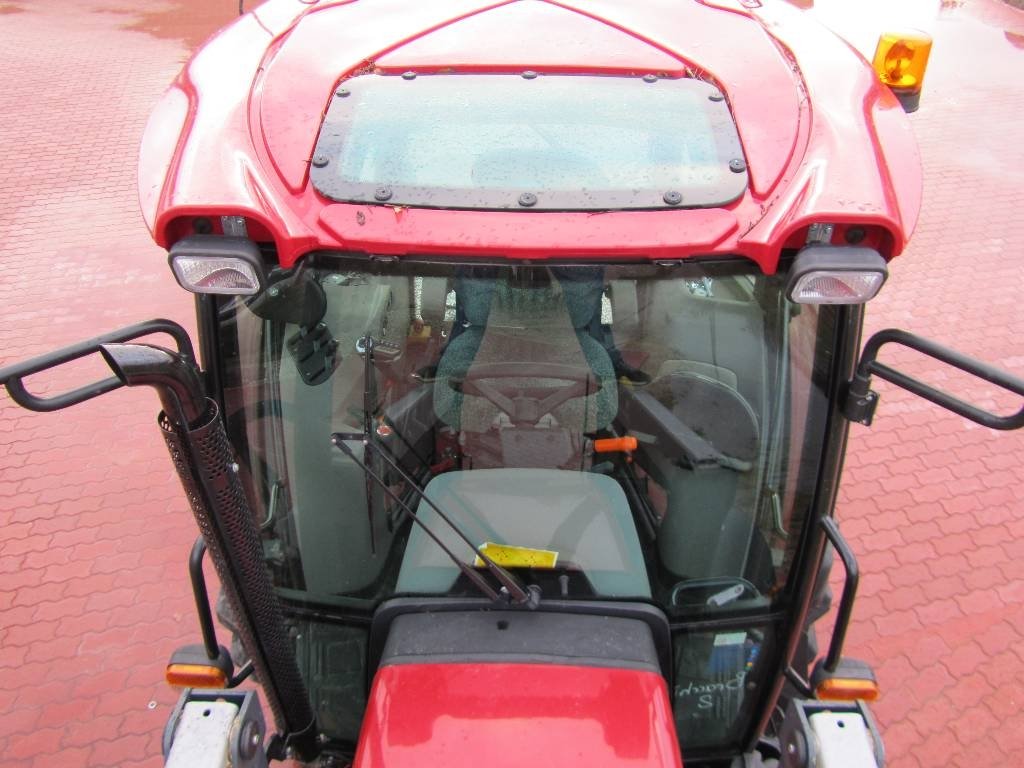

Case IH Compact Farmall 35A
Built: 2016 · Series: Compact Farmall A Series
More machines from model year 2016
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Compact Farmall 35A: compact tractor with a 1,496cc three-cylinder diesel, 27 kW and 820 kg of front hydraulic lift capacity
Case IH carries on the Farmall name from International Harvester's history and now uses it for its line of compact tractors. Within that line, the Compact Farmall A Series forms the entry class for smaller acreages, municipal work and hobby holdings, aimed at buyers who need a small, manoeuvrable machine rather than a full-sized field tractor.
Read on 3 more paragraphs
The Compact Farmall 35A carries a three-cylinder diesel engine with 1,496 cc of displacement, producing 27 kW (36 hp) at 2,600 rpm. At 3,074 mm long, 1,689 mm wide and with a 1,715 mm wheelbase, the machine weighs 1,391 kg with a 28-litre fuel tank; front hydraulic lift capacity reaches 820 kg.
With three cylinders, just under 1.5 litres of displacement and only 1.4 tonnes of weight, the Farmall 35A belongs to the class of compact tractors used for grounds maintenance, small yard tasks and work with front- or rear-mounted implements on limited acreage. Lift capacity of 820 kg suits light mounted implements, not heavy agricultural towing work.
When buying a used Compact Farmall 35A, the condition of the front hydraulics and their connections matters, since compact tractors of this class are often used with front loaders or sweepers. Also worth checking are the clutch, the tightness of the cooling system, and tyre condition, since these small machines often run on paved surfaces with increased tyre wear. The three-point linkage bushings are another common wear point worth a look.
Sources: SpecCodex-Register: Kennwerte des Modells Case IH Compact Farmall 35A, Case IH (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 36 hp (27 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,496 cm³correct |
Dimensions and weights
| Length | 3,074 mmcorrect |
|---|---|
| Width | 1,689 mmcorrect |
| Height | 2,227 mmcorrect |
| Wheelbase | 1,715 mmcorrect |
| Unladen weight | 1,391 kgcorrect |
Working data
| Lifting capacity | 820 kgcorrect |
|---|---|
| Fuel tank capacity | 28 lcorrect |
Where this model stands
Power-to-weight ratio: 19.4 kW/t (27 kW / 1.4 t)
Power class: Compact (< 40 hp)
Stronger than 22% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Compact Farmall 35A have?
The Case IH Compact Farmall 35A delivers 36 hp.
How much does the Case IH Compact Farmall 35A weigh?
The unladen weight is 1,391 kg.
What engine does the Case IH Compact Farmall 35A have?
3 cylinders, 1,496 cm³ displacement, Diesel.
How much does the rear linkage of the Case IH Compact Farmall 35A lift?
The rear linkage lifts 820 kg.
What are the dimensions of the Case IH Compact Farmall 35A?
3,074 mm × 1,689 mm × 2,227 mm.
When was the Case IH Compact Farmall 35A built?
Production years: 2016.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: Wikibooks Traktorenlexikon (CC BY-SA 4.0) (retrieved August 2026) · How we check the data
