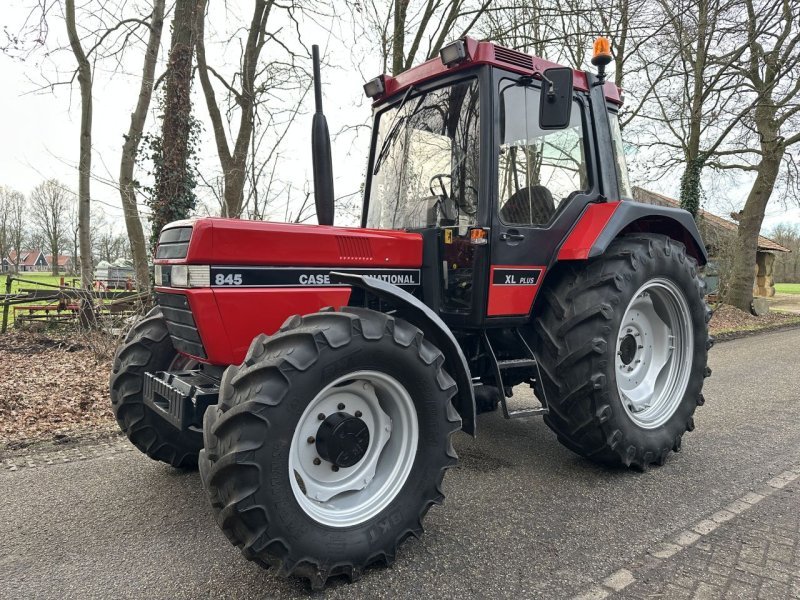

Case IH 845 XL (A) – specifications
Built: 1990–1996 · Series: B-Familie
The Case IH 845 XL (A) is a model in the B-Familie series. Production: 1990–1996. The engine delivers 80 hp (58.8 kW), has 4 cylinders, with a displacement of 4,389 cm³. Torque is 296 Nm. Rated speed is 2,300 rpm. The machine is 3,680 mm long, 2,050 mm wide and 2,670 mm high. The unladen weight is 3,660 kg. The wheelbase measures 2,390 mm. Ground clearance is 484 mm. Top speed is 30 km/h. Transmission: 16 V/8 R. The engine is water-cooled. Tyres: front 7.50-18 ASF (A: 16.9 R 24 AS), rear 16.9 R 34 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 139.7 mm. Maximum torque is reached at 1,300 rpm. Construction: unit construction (no separate frame). Rated output across the Case IH range ranges from 31.4 to 500 hp; the 845 XL (A) sits at the bottom of that range with 80 hp. Its immediate neighbours are the Quantum 75C below it with 78 hp and the JX 1080 U (A) above it with 82 hp. Rated output across the Case IH range ranges from 23.1 to 373 kW; here the 845 XL (A) sits at the bottom of that range with 58.8 kW. 1222 Case IH models across 76 series are on record.
Data for the version built 1990–1996 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1990
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH 845 XL (A): field tractor with a water-cooled 4,389cc four-cylinder diesel, 58.8 kW of power and 296 Nm of torque at 2,300 rpm
Case IH was formed in 1985 from the merger of J.I. Case and International Harvester's agricultural equipment division. The B family covered the mid power range through the 1990s, with the XL designation marking the somewhat more powerful, better equipped variant within a series.
Read on 3 more paragraphs
The 845 XL (A) carries a water-cooled four-cylinder diesel engine with 4,389 cc of displacement, producing 58.8 kW (80 hp) at 2,300 rpm and delivering 296 Nm of torque. At 3,680 mm long, 2,050 mm wide and with a 2,390 mm wheelbase, the machine weighs 3,660 kg; overall height is 2,670 mm and top speed is 30 km/h.
With four cylinders, 4.4 litres of displacement and a weight just under 3.7 tonnes, the 845 XL belongs to the class of medium-heavy to heavy field tractors used for ploughing, cultivating and haulage on larger farms. Torque of 296 Nm allows towing work even at lower engine speed, which reduces fuel consumption in continuous operation and eases strain on the drivetrain.
When buying a used 845 XL, the condition of the clutch and the injection pump seals matters, since these parts take particular strain under sustained load at this power level. Also worth checking are the tightness of the cooling system and hydraulics, and corrosion on the frame and mudguards, which is common on machines of this build year. It is also worth inspecting the brakes and the clutch discs.
Sources: SpecCodex-Register: Kennwerte des Modells Case IH 845 XL (A), Case IH (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 80 hp (58.8 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 296 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,389 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 139.7 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,680 mmcorrect |
|---|---|
| Width | 2,050 mmcorrect |
| Height | 2,670 mmcorrect |
| Wheelbase | 2,390 mmcorrect |
| Ground clearance | 484 mmcorrect |
| Unladen weight | 3,660 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16 V/8 Rcorrect |
| Front tyres | 7.50-18 ASF (A: 16.9 R 24 AS)correct |
| Rear tyres | 16.9 R 34 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 16.1 kW/t (59 kW / 3.7 t)
Power class: Universal (40–100 hp)
Stronger than 54% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
