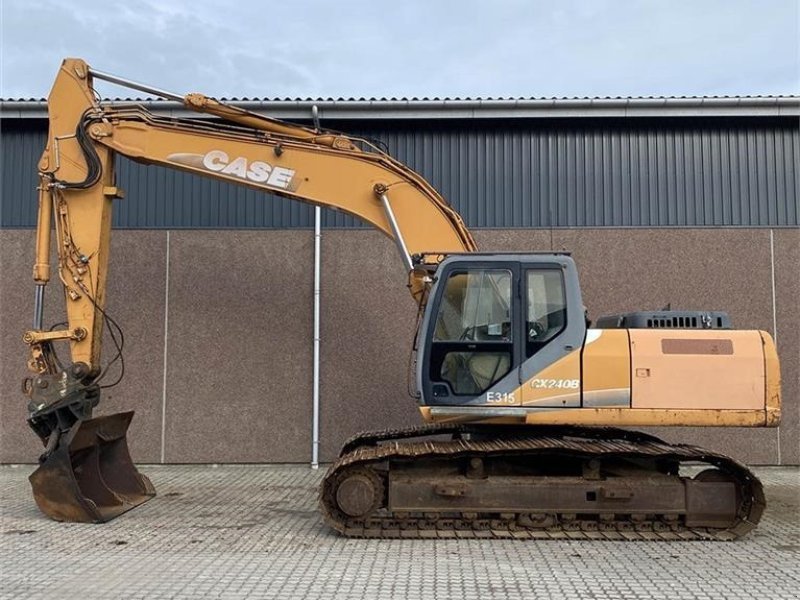

Case CX240 Long Reach
Series: Case Hydraulic Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case excavators: from the 9000 series to the CX line in one bucket
The "Case Hydraulic Excavator" bucket combines 56 crawler excavators from two technically separate generations: the older 9000 series (examples 9010B through 9060B) and the modern CX line (such as CX130, CX135). Case fielded the B-model 9000-series machines from the late 1990s onward, then progressively replaced them with the CX line, which brought reworked hydraulics and cleaner engines.
Read on 3 more paragraphs
The CX range has kept growing since: in 2017 Case introduced the CX750D, which it describes as the largest and most powerful machine in its excavator line. The smaller CX models in this bucket, such as the CX130 and CX135, sit in the mid-market segment, while the 9000-series predecessors are now purely used machines with no factory backing.
Technically the register spans a wide range: 65 to 396 kW of engine power, 12,272 to 81,000 kg operating weight, 4- to 6-cylinder engines, displacement from 2998 to 15,700 cm³, and torque from 349 to 2250 Nm — from a compact site excavator to a heavy mass-excavation machine.
Buying used, the condition of the track rollers and chains says a lot about how a machine was worked: rocky ground and trenching wear them down far faster than plain earthmoving. On the older 9000-series models, also check parts availability for the hydraulic pump and control valve block, since that line is no longer in production.
Sources: Kennwerte der Modelle Case Hydraulic Excavator, Case Construction Equipment (Wikipedia)
Technical data
Engine
| Engine model | 6TAA-5904correct |
|---|---|
| Power | 182.5 hp (129 kW)correct |
| Rated speed | 2,150 rpmcorrect |
| Torque | 625correct |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,883 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 27.3 lcorrect |
| Engine oil capacity | 24.2 lcorrect |
Dimensions and weights
| Ground clearance | 460.2correct |
|---|---|
| Unladen weight | 27,473.2 kgcorrect |
Working data
| Pump flow | 212.4 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 225.2 lcorrect |
| Hydraulic pressure | 343 barcorrect |
| Fuel tank capacity | 340.7 lcorrect |
Other data
| Cab height | 3,020.6correct |
|---|---|
| System voltage | 24 Vcorrect |
More machines with this engine (6TAA-5904, 5)
Where this model stands
Power-to-weight ratio: 4.7 kW/t (129 kW / 27.5 t)
Stronger than 63% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case CX240 Long Reach have?
The Case CX240 Long Reach delivers 182 hp.
How much does the Case CX240 Long Reach weigh?
The unladen weight is 27,473 kg.
What engine does the Case CX240 Long Reach have?
6 cylinders, 5,883 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
