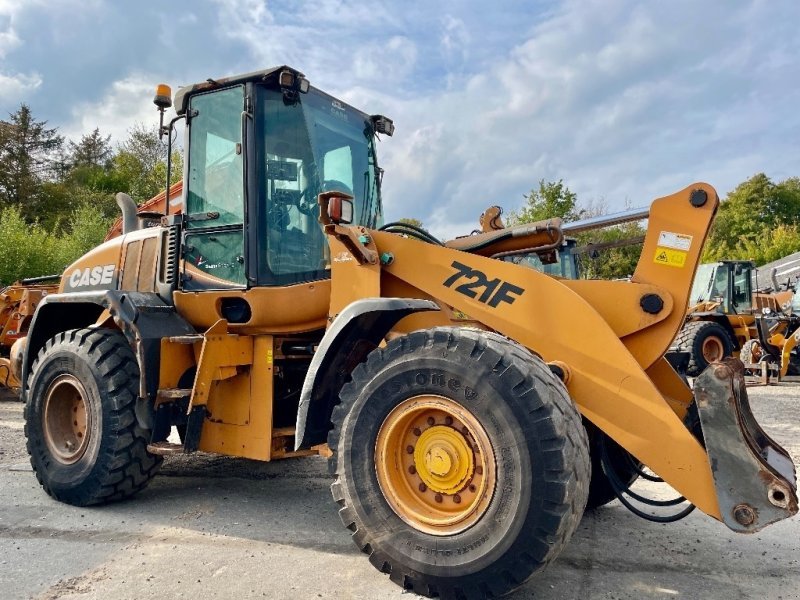

Case 721F

Series: Case Wheel Loader

Source: https://www.technikboerse.com/gebraucht/radlader-255/case-ih

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case Wheel Loader series from Case includes the 721F. The engine delivers 197.2 hp (133 kW), has 6 cylinders, with a displacement of 6,735.1 cm³. Torque is 913.8 Nm. Rated speed is 2,000 rpm. The unladen weight is 14,291.8 kg. The wheelbase measures 3,255.3 mm. Ground clearance is 365.8 mm. The tank holds 246.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,300 rpm. The pump delivers 120.4 l/min. The hydraulic tank holds 177.9 litres. The cooling system holds 28.8 litres. The electrical system runs on 24 V. The engine fitted is the FPT F4HFE613T. The Case Wheel Loader series covers 71 models. Rated output within it ranges from 55 to 359.9 hp; the 721F sits in the middle of that range with 197.2 hp. Its immediate neighbours are the 721EXT below it with 184.5 hp and the 721FXR above it with 197.7 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelFPT F4HFE613Tcorrect
Power197.2 hp (133 kW)correct
Rated speed2,000 rpmcorrect
Torque913.8correct
Speed at max. torque1,300 rpmcorrect
Cylinders6correct
Displacement6,735.1 cm³correct
Aspirationturbochargedcorrect
Coolant capacity28.8 lcorrect

Dimensions and weights

Wheelbase3,255.3correct
Ground clearance365.8correct
Unladen weight14,291.8 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears4correct
Reverse gears3correct
System voltage24 Vcorrect

Working data

Pump flow120.4 l/mincorrect
Hydraulic oil capacity177.9 lcorrect
Fuel tank capacity246.1 lcorrect

Other data

Height3,386.3correct

Where this model stands

Power-to-weight ratio: 9.3 kW/t (133 kW / 14.3 t)

Stronger than 68% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case 721F have?

The Case 721F delivers 197 hp.

How much does the Case 721F weigh?

The unladen weight is 14,292 kg.

What engine does the Case 721F have?

6 cylinders, 6,735 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
