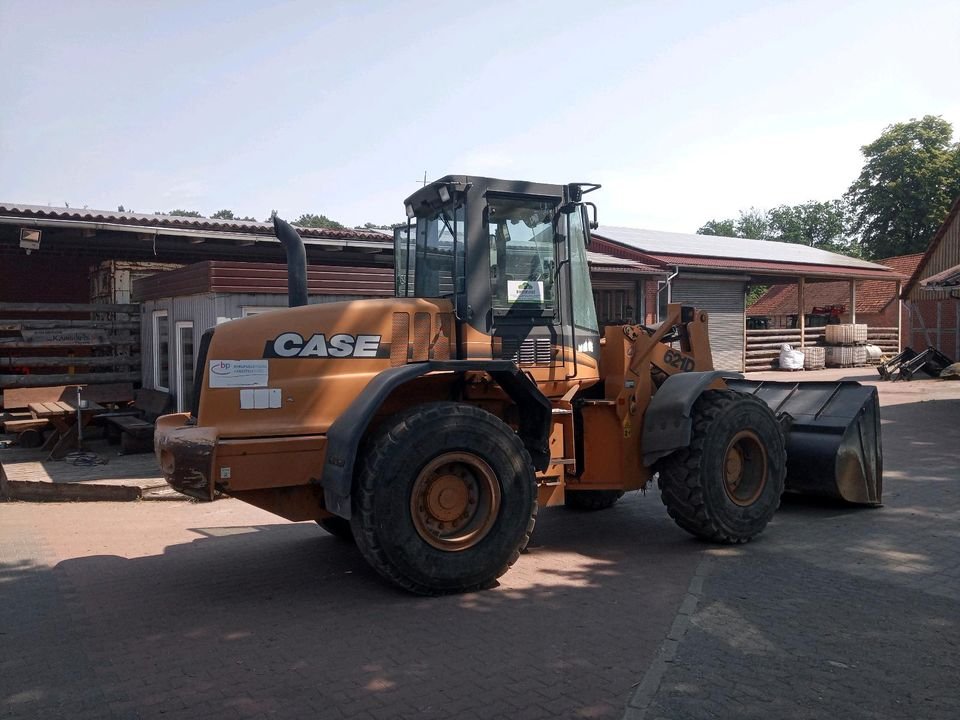

Case 621DXR

Series: Case Wheel Loader

Source: https://www.kleinanzeigen.de/s-anzeige/radlader-case-621d-bj

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case Wheel Loader series from Case includes the 621DXR. The engine delivers 148 hp (101.4 kW), has 6 cylinders, with a displacement of 6,702.3 cm³. Torque is 671.1 Nm. Rated speed is 2,000 rpm. The unladen weight is 11,958.5 kg. The wheelbase measures 2,901.7 mm. Ground clearance is 475.5 mm. The tank holds 189.3 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,200 rpm. The pump delivers 171.1 l/min. The hydraulic tank holds 113.9 litres. The cooling system holds 24.2 litres. The electrical system runs on 24 V. The engine fitted is the Family III 668TA/M2. Tyre size: 20,5x25 L3. The Case Wheel Loader series covers 71 models. Rated output within it ranges from 55 to 359.9 hp; the 621DXR sits in the lower part of that range with 148 hp. Its immediate neighbours are the 521G below it with 144 hp and the 621D above it with 150.1 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelFamily III 668TA/M2correct
Power148 hp (101.4 kW)correct
Rated speed2,000 rpmcorrect
Torque671.1correct
Speed at max. torque1,200 rpmcorrect
Cylinders6correct
Displacement6,702.3 cm³correct
Aspirationturbocharged and air to air cooledcorrect
Coolant capacity24.2 lcorrect

Dimensions and weights

Wheelbase2,901.7correct
Ground clearance475.5correct
Unladen weight11,958.5 kgcorrect

Drivetrain and chassis

Gearbox type4F/3R proportional w/ electronic control module torque sensing autoshift/manual gearboxcorrect
Forward gears4correct
Reverse gears3correct
Tyre size20.5x25 L3correct
System voltage24 Vcorrect

Working data

Pump flow171.1 l/mincorrect
Hydraulic oil capacity113.9 lcorrect
Fuel tank capacity189.3 lcorrect

Other data

Height3,307.1correct

Where this model stands

Power-to-weight ratio: 8.5 kW/t (101 kW / 12 t)

Stronger than 52% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case 621DXR have?

The Case 621DXR delivers 148 hp.

How much does the Case 621DXR weigh?

The unladen weight is 11,958 kg.

What engine does the Case 621DXR have?

6 cylinders, 6,702 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
