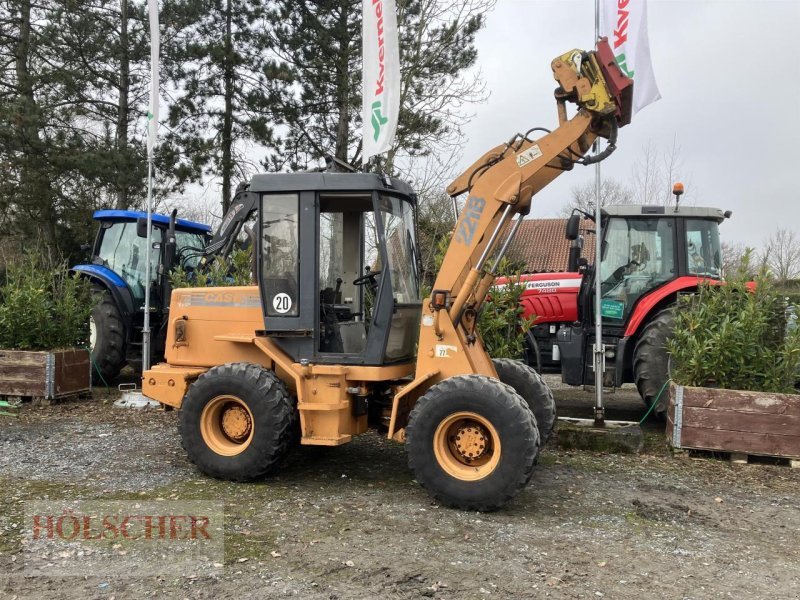

Case 221E

Series: Case Wheel Loader

Source: https://www.technikboerse.at/gebraucht/radlader-255/case-ih-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case 221E belongs to the Case Wheel Loader series. The engine delivers 60.8 hp (44 kW), has 4 cylinders, with a displacement of 3,113.5 cm³. Torque is 177.6 Nm. Rated speed is 2,500 rpm. The unladen weight is 5,419.1 kg. The wheelbase measures 2,350 mm. Ground clearance is 329.2 mm. The tank holds 98.4 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,700 rpm. The pump delivers 70 l/min. The hydraulic tank holds 67 litres. The electrical system runs on 12 V. The engine fitted is the F4M2011. Tier 2 certified. Tyre size: 365/80 R20 EM SPT9. The Case Wheel Loader series covers 71 models. Rated output within it ranges from 55 to 359.9 hp; the 221E sits at the bottom of that range with 60.8 hp. Its immediate neighbours are the 121E below it with 59.8 hp and the 221D above it with 61.3 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine model	F4M2011, Tier 2 certifiedcorrect
Power	60.8 hp (44 kW)correct
Rated speed	2,500 rpmcorrect
Torque	177.6correct
Speed at max. torque	1,700 rpmcorrect
Cylinders	4correct
Displacement	3,113.5 cm³correct

Dimensions and weights

Wheelbase	2,350correct
Ground clearance	329.2correct
Unladen weight	5,419.1 kgcorrect

Drivetrain and chassis

Gearbox type	hydrostatic transmission transmissioncorrect
Forward gears	2correct
Reverse gears	2correct
Tyre size	365/80 R20 EM SPT9correct
System voltage	12 Vcorrect

Working data

Pump flow	70 l/mincorrect
Hydraulic oil capacity	67 lcorrect
Fuel tank capacity	98.4 lcorrect

Other data

Height	2,795correct

Where this model stands

Power-to-weight ratio: 8.1 kW/t (44 kW / 5.4 t)

Stronger than 12% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case 221E have?

The Case 221E delivers 60.8 hp.

How much does the Case 221E weigh?

The unladen weight is 5,419 kg.

What engine does the Case 221E have?

4 cylinders, 3,114 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
