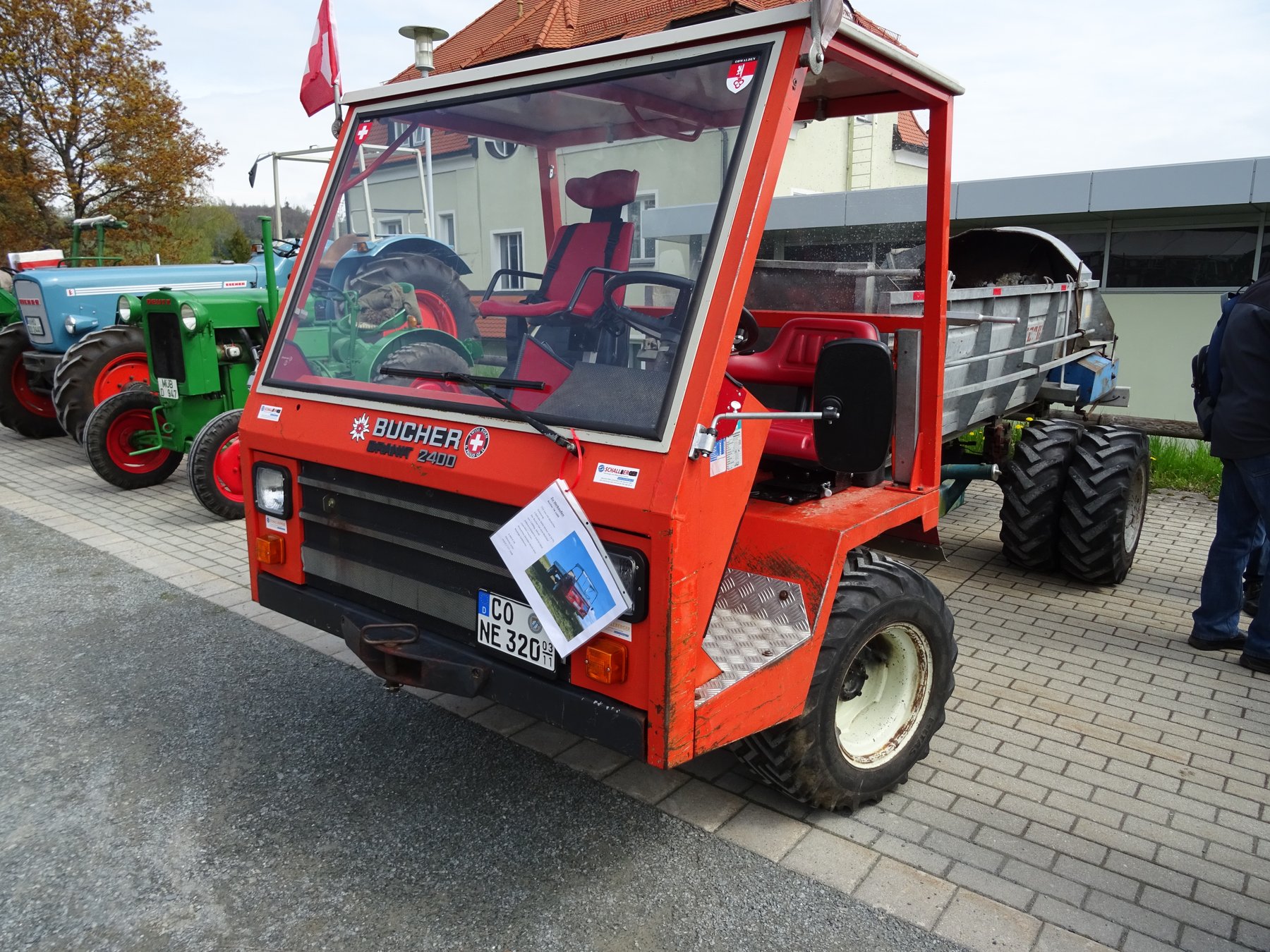

Bucher Guyer Niederwenningen (ZH) TR 2200

Q: How much power does the Bucher Guyer Niederwenningen (ZH) TR 2200 have?

The Bucher Guyer Niederwenningen (ZH) TR 2200 delivers 11 hp.

Q: What engine does the Bucher Guyer Niederwenningen (ZH) TR 2200 have?

1 cylinders, 472 cm³ displacement, Diesel.

Q: What are the dimensions of the Bucher Guyer Niederwenningen (ZH) TR 2200?

4,900 mm × 1,500 mm × 1,330 mm.

Built: 1967 to approx. 1900s · Series: TR

More machines from model year 1967

Source: commons.wikimedia.org

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TR 2200 from Bucher Guyer Niederwenningen (ZH) is part of the TR series. Production: 1967–19??. The engine delivers 11 hp (8.1 kW), has 1 cylinder, with a displacement of 472 cm³. Rated speed is 3,000 rpm. The machine is 4,900 mm long, 1,500 mm wide and 1,330 mm high. The unladen weight is 1,070 kg. Top speed is 20 km/h. Transmission: 6 V 2 R. The engine is air-cooled. Tyres: front 6,50-16 8 PR, rear 10-15 6 PR. The fuel is diesel. The TR series covers 4 models. Rated output within it ranges from 6.7 to 22 hp; the TR 2200 sits in the lower part of that range with 11 hp. Its immediate neighbours are the TR 800 below it with 6.7 hp and the TR 2600 above it with 22 hp. Unladen weight within it ranges from 410 to 1,150 kg; here the TR 2200 sits at the top of that range with 1,070 kg. 5 Bucher Guyer Niederwenningen (ZH) models across 2 series are on record.

Bucher-Guyer TR – the transporters from Niederweningen (canton of Zurich): TR 800 to TR 2600 for Swiss mountain farming, 5 to 16 kW

The TR series denotes the small transporters of the Swiss maker Bucher-Guyer from Niederweningen in the canton of Zurich, whose farm-equipment heritage today belongs to Bucher Industries. The TR 800, TR 2100, TR 2200 and TR 2600 are one- to two-cylinder vehicles of low weight and low build height, used as the transporter class in Swiss mountain farming for moving materials on steep terrain.

Read on 3 more paragraphs

The register lists here 4 versions with 4.9 to 16.2 kW from one- to two-cylinder engines of 258 to 1,144 cm³ displacement, unladen weights from 410 to 1,150 kg, lengths from 2,860 to 4,900 mm, widths from 1,310 to 1,550 mm and heights from 850 to 1,400 mm, at rated speeds of 3,000 to 3,400 rpm; the fuels recorded are petrol and diesel.

The TR transporters supplemented the classic yard tractors in Swiss steep-slope farming and were used mainly in forage transport, viticulture and fruit growing, where manoeuvrability and a low centre of gravity mattered more than draft power, much as with other Swiss makers of mountain transporters.

Used, the TR transporters call for checking engine condition and the carburettor or injection pump, clutch and transmission, brakes on slopes, and the condition of the chassis and load platform; the frame and load-bed mounts are also worth checking. Parts are today offered mainly by Swiss farm-machinery specialists.

Sources: SpecCodex register, model data: Bucher-Guyer TR, Bucher Industries

Technical data

Engine

Fuel	dieselcorrect
Power	11 hp (8.1 kW)correct
Rated speed	3,000 rpmcorrect
Cylinders	1correct
Displacement	472 cm³correct
Cooling	air-cooledcorrect

Dimensions and weights

Length	4,900 mmcorrect
Width	1,500 mmcorrect
Height	1,330 mmcorrect
Unladen weight	1,070 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	6 V 2 Rcorrect
Front tyres	6, 50-16 8 PRcorrect
Rear tyres	10-15 6 PRcorrect
Top speed	20 km/hcorrect

Origin and approval

Construction	Rahmenbauweise, Vorder- und Hinterachse verdrehbarcorrect

Where this model stands

Power-to-weight ratio: 7.6 kW/t (8 kW / 1.1 t)

Power class: Compact (< 40 hp)

Stronger than 1% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Bucher Guyer Niederwenningen (ZH) TR 2200 have?

The Bucher Guyer Niederwenningen (ZH) TR 2200 delivers 11 hp.

How much does the Bucher Guyer Niederwenningen (ZH) TR 2200 weigh?

The unladen weight is 1,070 kg.

What engine does the Bucher Guyer Niederwenningen (ZH) TR 2200 have?

1 cylinders, 472 cm³ displacement, Diesel.

How fast does the Bucher Guyer Niederwenningen (ZH) TR 2200 go?

Top speed is 20 km/h.

What are the dimensions of the Bucher Guyer Niederwenningen (ZH) TR 2200?

4,900 mm × 1,500 mm × 1,330 mm.

When was the Bucher Guyer Niederwenningen (ZH) TR 2200 built?

Production years: 1967–19??.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
