Bucher Guyer B 1500
Built: 1955–1974 · Series: B
More machines from model year 1955
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

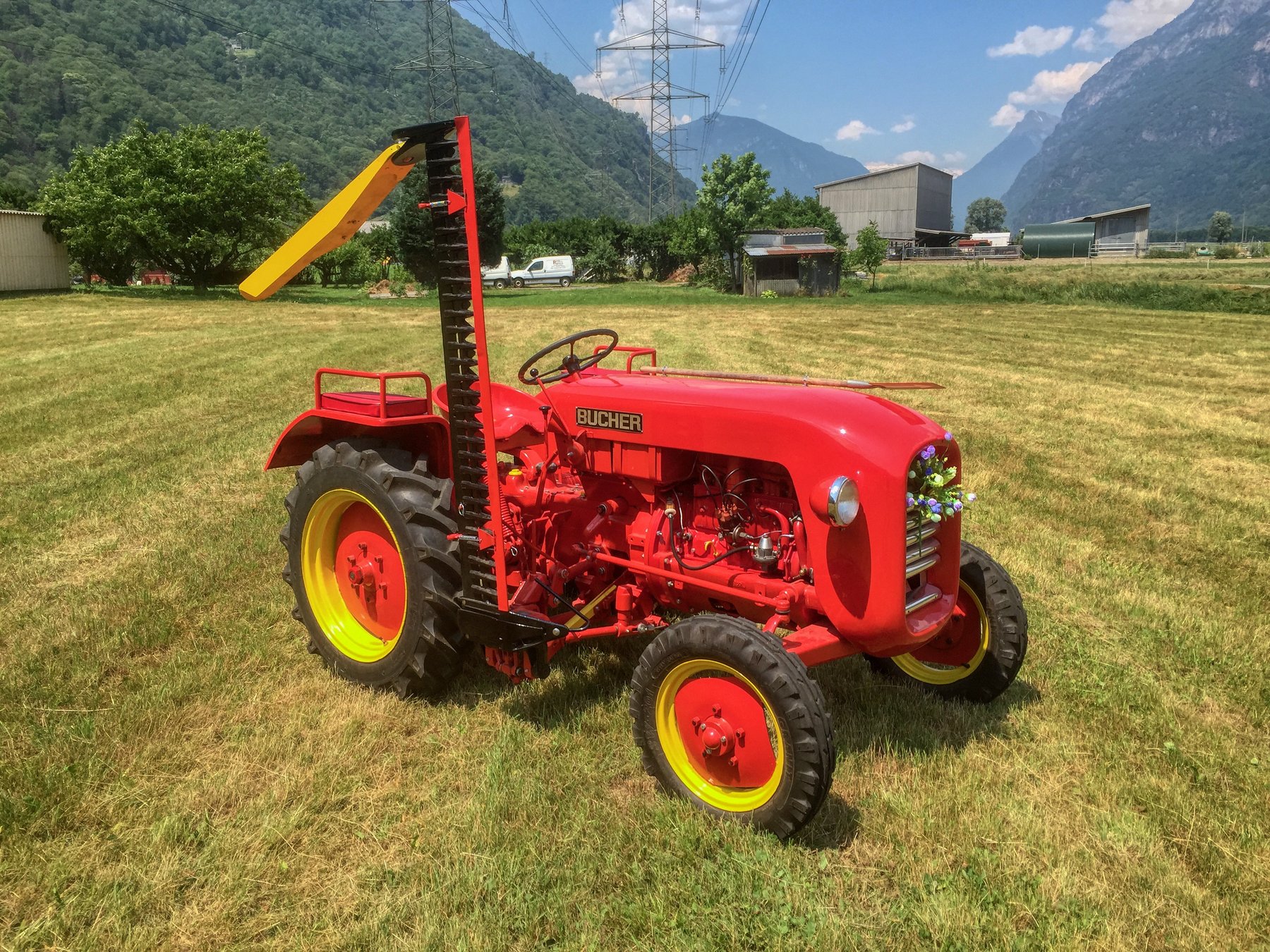

Bucher Guyer B 1500: Swiss compact tractor of the B range, four-cylinder petrol engine with 18.4 kW (25 hp), 1,193 kg unladen weight, built 1955 to 1974
Bucher Guyer, a Swiss agricultural-machinery maker based in Niederweningen in the canton of Zurich, built small tractors for the country's farms alongside its farm equipment, competing with brands such as Hürlimann and Meili. The B 1500 was built from 1955 to 1974.
Read on 3 more paragraphs
The B 1500 carries a water-cooled four-cylinder petrol engine of 1,488 cm³ displacement, producing 18.4 kW (25 hp) at 2,000 rpm and developing 96 Nm of torque – an engine of the light class typical of smaller Swiss farms. With an unladen weight of 1,193 kg, a wheelbase of 1,650 mm, a length of 2,510 mm, a width of 1,520 mm and a height of 1,400 mm, it reaches a top speed of 20 km/h.
At 20 km/h the B 1500 falls within today's driving licence category L up to 40 km/h. The petrol engine was still common in smaller tractors of this power class at the time, before diesel engines took over the light class too in the following decades; water cooling allowed steadier full-load running than air-cooled designs of the period.
When buying a carburettor engine of this age second-hand, the ignition system and carburettor, the condition of the cooling system and water pump, and rust on the radiator and sheet-metal parts matter most. Spare parts for a small tractor of this Swiss marque are today only obtainable through specialist collectors and vintage-vehicle clubs.
Sources: SpecCodex-Register: Kennwerte des Modells Bucher Guyer B 1500
Technical data
Engine
| Fuel | petrolcorrect |
|---|---|
| Power | 25 hp (18.4 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 96 Nmcorrect |
| Speed at max. torque | 1,900 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,488 cm³correct |
| Bore | 80 mmcorrect |
| Stroke | 74 mmcorrect |
| Compression ratio | 6.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,510 mmcorrect |
|---|---|
| Width | 1,520 mmcorrect |
| Height | 1,400 mmcorrect |
| Wheelbase | 1,650 mmcorrect |
| Ground clearance | 410 mmcorrect |
| Unladen weight | 1,193 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6 V/1 Rcorrect |
| Front tyres | 5.00-16 ASFcorrect |
| Rear tyres | 9-24 AScorrect |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|
Where this model stands
Power-to-weight ratio: 15.4 kW/t (18 kW / 1.2 t)
Power class: Compact (< 40 hp)
Stronger than 12% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Bucher Guyer B 1500 have?
The Bucher Guyer B 1500 delivers 25 hp.
How much does the Bucher Guyer B 1500 weigh?
The unladen weight is 1,193 kg.
What engine does the Bucher Guyer B 1500 have?
4 cylinders, 1,488 cm³ displacement, Benzin.
How fast does the Bucher Guyer B 1500 go?
Top speed is 20 km/h.
What are the dimensions of the Bucher Guyer B 1500?
2,510 mm × 1,520 mm × 1,400 mm.
When was the Bucher Guyer B 1500 built?
Production years: 1955–1974.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
