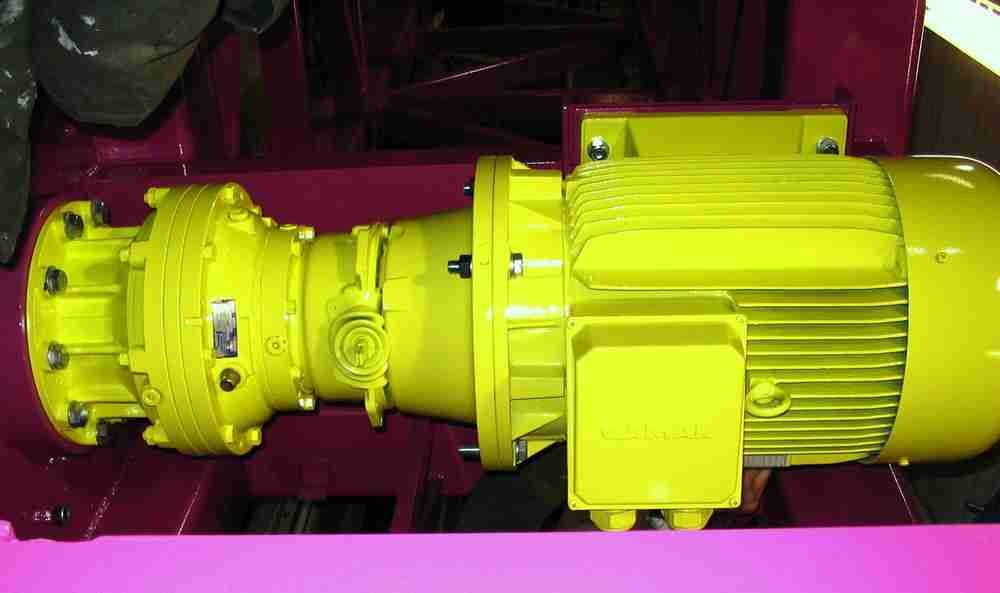

Brevini Power Transmissions 3EL080M4D

Series: Other models

Source: powertransmissionworld.com

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Brevini Power Transmissions 3EL080M4D is a three-phase induction motor. The rated output is 0.75 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 80 M in foot-mounted form. The protection class is IP55. The efficiency is 82.5 per cent at full load, 82.8 per cent at 75 per cent load and 80.8 per cent at half load. The motor weighs 11.6 kg. At full load it delivers 4.97 Nm. The mounting arrangement to IEC 60034-7 is B35. The motor is built in Turkey. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Brevini Power Transmissions range ranges from 0.75 to 22 kW; the 3EL080M4D sits at the bottom of that range with 0.75 kW. Its immediate neighbours are the 3EL090S4C above it with 1.1 kW. 14 Brevini Power Transmissions models are on record.

Brevini Power Transmissions – other models: the collective page of MEPS-registered three-phase motors made in Turkey outside the named ranges, frame sizes 80 to 180, 0.75 to 22 kW, 4- to 6-pole

This page gathers the Brevini Power Transmissions three-phase motors the Australian energy-efficiency register could not assign to a named range. All 14 motors listed here come from manufacture in Turkey. Model designations such as 3EL100L4D or 3EG180L4D combine a range code (EL, EG) with the IEC frame size (100, 180), the build length (S, M, L) and the pole-count suffix; the trailing letter distinguishes versions with a different shaft-end form.

Read on 3 more paragraphs

The register lists here 14 versions with 0.75 to 22 kW, four- to six-pole, full-load efficiencies from 82.5 to 92.7% and at 75% load from 82.8 to 93%. Frame sizes run from 80 to 180, protection is mostly IP55/IP56, alongside IP66; testing consistently followed AS/NZS 1359.5:2004, mostly with test method B, with no motor reaching a documented High Efficiency classification.

Brevini Power Transmissions stands for drive technology from the Italian gearbox-building tradition, with manufacture in Turkey for the European and Australia-Pacific markets; there the motors chiefly complement gearboxes and planetary drives into complete drivetrains for conveyors, agitators and industrial plant.

When buying used, bearing condition and a checked insulation resistance of the winding, the condition of shaft, key and fan cover, a legible nameplate with frame size, pole count and protection rating, and on the IP66 versions the tightness of the terminal box and shaft lead-through all matter; spares run through the specialist drive-technology trade.

Sources: SpecCodex register, model data: Brevini Power Transmissions (weitere Modelle, MEPS-Registrierungen)

Technical data

Engine

Rated output0.75 kWcorrect

Dimensions and weights

Weight11.6 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection classIP55correct
Frame size80 M (foot)correct
Mounting (IEC 60034-7)B35correct
Efficiency at full load82.5 %correct
Efficiency at 75 % load82.8 %correct
Efficiency at half load80.8 %correct

Origin and approval

Country of manufactureTurkeycorrect

Other data

Standard appliedAS/NZS 1359.5:2004correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Brevini Power Transmissions 3EL080M4D have?

The Brevini Power Transmissions 3EL080M4D delivers 0.8 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
