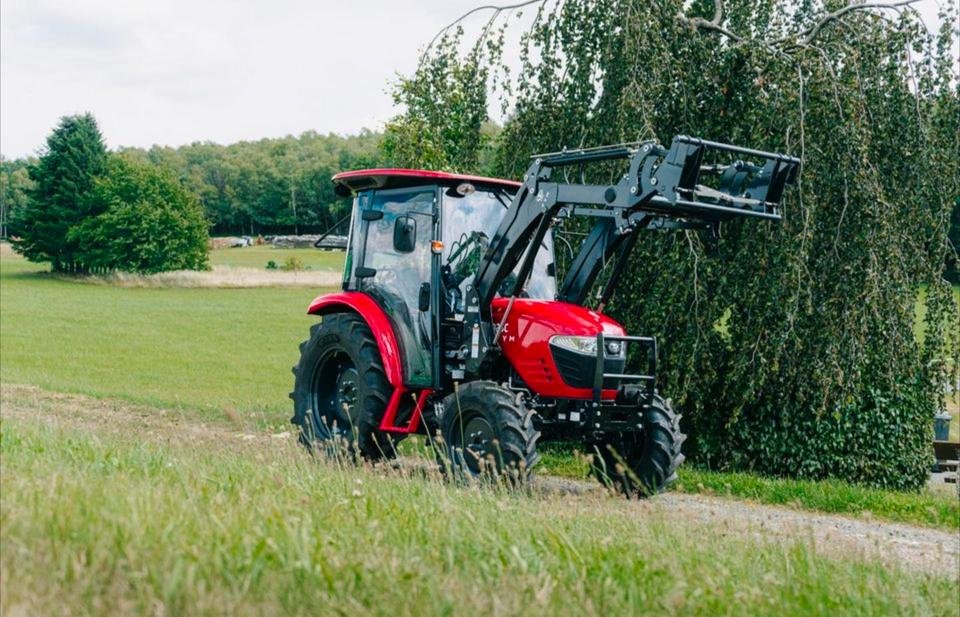

Branson 5530R 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Branson 5530R belongs to the Branson 4WD Tractor series. Under the bonnet works a four-cylinder engine displacing 2.3 litres, producing 56 hp (35 kW). Rated power is reached at 2,600 rpm.
Unladen, it tips the scales at 2,309 kg.
Within the range, rated power spans from 29.4 to 65.9 hp; with 55.8 hp, the 5530R sits at the top. Directly alongside are the 4720h with 47.7 hp below and the 6530 with 65.9 hp above.
Technical data
Engine
| Engine model | A2300T2-ATCcorrect |
|---|---|
| Power | 55.8 hp (35 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,287.6 cm³correct |
Dimensions and weights
| Unladen weight | 2,308.8 kgcorrect |
|---|
Drivetrain and chassis
| Gearbox type | synchromesh gearboxcorrect |
|---|---|
| Forward gears | 24correct |
| Reverse gears | 24correct |
| Tyre size | front: 11.2-20, rear:14.9-30correct |
| System voltage | 12 Vcorrect |
Working data
| Fuel tank capacity | 90.8 lcorrect |
|---|
Other data
| Height | 2,490.2correct |
|---|
Where this model stands
Power-to-weight ratio: 15.2 kW/t (35 kW / 2.3 t)
Power class: Universal (40–100 hp)
Stronger than 33% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Branson 5530R have?
The Branson 5530R delivers 55.8 hp.
How much does the Branson 5530R weigh?
The unladen weight is 2,309 kg.
What engine does the Branson 5530R have?
4 cylinders, 2,288 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
