Bomag BW216DH4BVC – specifications
Series: Other models
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

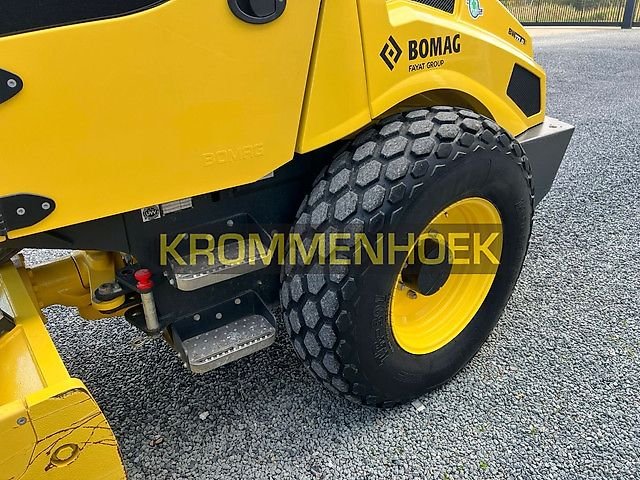

The Bomag BW216DH4BVC is a Compaction equipment from Bomag. The engine is rated at 114 kW.
Empty, it weighs 16,170 kg.
Within the range, rated power spans from 56 to 147 kW; with 114 kW, the BW216DH4BVC sits in the mid-field. Directly alongside are the BW212D3 with 90 kW below and the BW219DH4 with 147 kW above.
Bomag – other models: rollers from Boppard for soil and asphalt compaction, four- and six-cylinder diesel engines, 56 to 147 kW, 8,870 to 20,930 kg operating weight
Bomag, headquartered in Boppard on the Rhine, ranks among the leading makers of compaction equipment and is part of the French Fayat Group. This collective page lists BW-series rollers outside the independently maintained main ranges, from smaller tandem rollers such as the BW177D4 to heavy single-drum rollers such as the BW219DH4 for earthworks and road building.
Read on 4 more paragraphs
The register lists here 6 versions with 56 to 147.1 kW, operating weights from 8,870 to 20,930 kg, lengths from 4,910 to 6,340 mm and widths from 1,840 to 2,300 mm; they are powered by Deutz diesel engines of the BF4M and BF6M families.
Rollers of this class are used in earthworks, road and path construction and the compaction of embankments and dams; the range from lighter to heavy single-drum rollers lets construction firms and rental fleets provide the right machine for different soil types and compaction tasks.
Rollers of this kind compact through static dead weight or additionally through a dynamic vibration system, whose eccentric weights generate a centrifugal force that multiplies ground pressure; amplitude and frequency are matched to soil type and layer thickness. The drum is smooth for asphalt and granular soils, fitted with padfoot lugs for cohesive, clayey soils, which are broken up and keyed together in the process, or built as a pneumatic-tyre roller for the finish compaction of asphalt and mixed soils. Modern rollers often carry a measuring system that records the compaction level across the whole area while driving.
On used examples, the condition of the drum or shell and its bearings, the function of the vibration and, on some models, oscillation system, the condition of the Deutz diesel engine, the tightness of the hydraulics and rust on the frame all matter; spare parts and service run through the Bomag dealer network.
Sources: SpecCodex register, model data: Bomag Pozostałe modele, Bomag
Technical data
Engine
| Engine model | BF 4 M 1013ECcorrect |
|---|---|
| Power | 114 kWcorrect |
Dimensions and weights
| Length | 6,130 mmcorrect |
|---|---|
| Width | 2,300 mmcorrect |
| Unladen weight | 16,170 kgcorrect |
Working data
| Fuel tank capacity | 340.3 lcorrect |
|---|
Where this model stands
Power-to-weight ratio: 7.1 kW/t (114 kW / 16.2 t)
Stronger than 51% of the compaction equipment in the register — out of 219 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Bomag BW216DH4BVC have?
The Bomag BW216DH4BVC delivers 114 kW.
How much does the Bomag BW216DH4BVC weigh?
The unladen weight is 16,170 kg.
What are the dimensions of the Bomag BW216DH4BVC?
6,130 mm × 2,300 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 6 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
