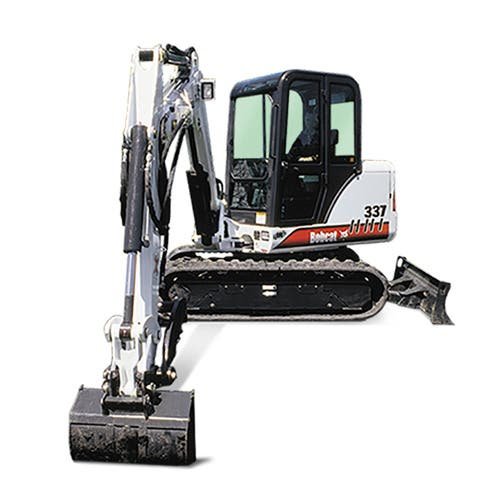

Bobcat 337 Long Arm – specifications

Series: Bobcat Midi Excavator

Build year not documented · Data origin: Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 337 Long Arm, Bobcat offers a model from the Bobcat Midi Excavator series. The engine delivers 48.7 hp (35.8 kW). Rated speed is 2,500 rpm. The unladen weight is 5,288.9 kg. The pump delivers 75.7 l/min. The engine fitted is the V2003-M-DI-TE2B. The Bobcat Midi Excavator series covers 8 models. Rated output within it ranges from 48.6 to 74 hp; the 337 Long Arm sits at the bottom of that range with 48.7 hp. Its immediate neighbours are the 341 below it with 48.6 hp and the 435 Long Arm above it with 49.7 hp. Unladen weight within it ranges from 4,788 to 8,607.8 kg; here the 337 Long Arm sits at the bottom of that range with 5,288.9 kg. 314 Bobcat models across 36 series are on record.

Bobcat midi excavators 337 to E85 – the 4.8 to 8.6 tonne class of the skid-steer inventor: 337 to 442 as the range of the 2000s, E63 and E85 as E range from 2010, Long Arm as boom variant

Bobcat's midi excavators complement the minis upward: machines of 4.8 to 8.6 tonnes for sewer work, demolition and rental that Bobcat has sourced since the 1990s at first from the partnership with Kubota and since 2007, under Doosan, from its own development at the Pontchâteau plant in France. The type logic shows two generations: the three-digit 337, 341, 435 and 442 of the 2000s order the size in ascending order, with Long Arm and Standard Arm as boom variants; the E range from 2010 gives the weight class in hundreds of kilograms in the number – E63 about 6.3 t, E85 about 8.5 t. The engines come from Kubota (V2003 of 2.0 litres in the 300s) and Deutz (BF4M 2011 of 3.2 litres in the 400s), four-cylinders at 2,100 to 2,500 rpm; the E models carry Kubota and Doosan engines to emission stage IV.

Read on 3 more paragraphs

The register lists 8 versions with 35.7 to 54.4 kW from four-cylinders of 2,001 to 3,210 cm³ and operating weights from 4,788 to 8,608 kg.

In the midi class Bobcat is a mid-sized supplier behind Kubota, Takeuchi, Yanmar and Caterpillar but strongly represented in rental fleets because skid steer and excavator come from the same dealer; the E85 is the brand's largest excavator.

On used machines, operating hours, play in boom, stick and offset-boom bearings, the condition of undercarriage and rubber tracks, leak-free cylinders and swivel joint and parts supply through the Bobcat network, Kubota and Deutz count.

Sources: SpecCodex register, model data: Bobcat Midibagger, Bobcat (Doosan Bobcat, Hersteller)

Technical data

Engine

Engine model	V2003-M-DI-TE2Bcorrect
Power	48.7 hp (35.8 kW)correct
Rated speed	2,500 rpmcorrect

Dimensions and weights

Unladen weight	5,288.9 kgcorrect

Working data

Pump flow	75.7 l/mincorrect

Other data

Cab height	2,508.5 mmcorrect

More machines with this engine (V2003-M-DI-TE2B, 2)

Where this model stands

Power-to-weight ratio: 6.8 kW/t (36 kW / 5.3 t)

Stronger than 6% of the excavators & compaction in the register — out of 1,650 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Bobcat 337 Long Arm have?

The Bobcat 337 Long Arm delivers 48.7 hp.

How much does the Bobcat 337 Long Arm weigh?

The unladen weight is 5,289 kg.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
