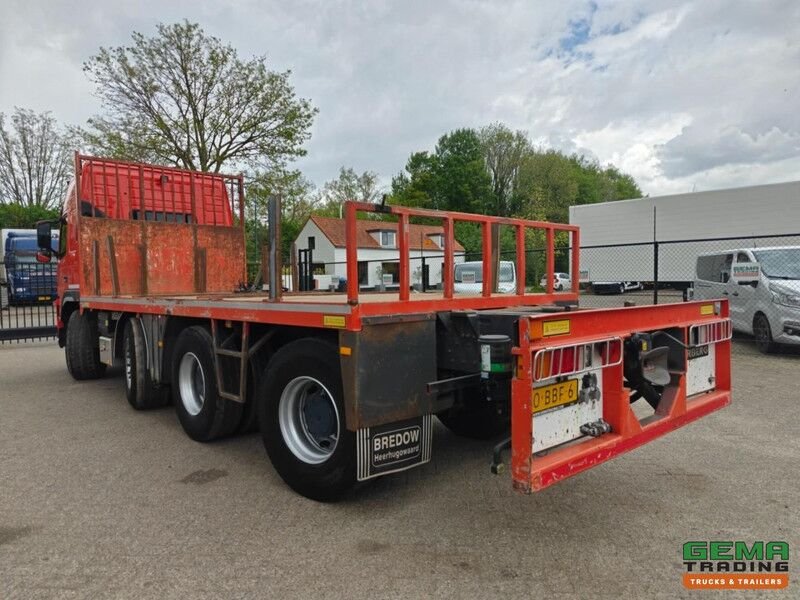

Terberg FM1850-T – specifications
Built: 1999–2002 · Series: Other models
Data for the version built 1999–2002 · Data origin: Official register · sources
More machines from model year 1999
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Terberg – other models: the collective page of Dutch special-purpose trucks outside the named ranges, from YT-range terminal tractors to heavy ballasted tractors of the F and FM ranges, 279 to 397 kW
This page gathers the Terberg commercial vehicles the register could not assign to a named range – special-purpose vehicles from the Dutch maker that has specialised since the 1970s in terminal tractors, airport vehicles and heavy-duty vehicles built on third-party chassis and engines. The type codes in the register follow different ranges: F, FL and FM mark heavy, mostly all-wheel-drive tractors and chassis for heavy haulage and special bodies, N a lighter range, SF tractor units, YT the terminal tractors (yard tractors) developed for port and logistics terminals, which shunt containers between quay and warehouse. The number after the letter code gives roughly the drive or drawbar-load class, WDG and T suffixes gearbox and body variants.
Read on 3 more paragraphs
The register lists here 55 versions with sparsely recorded power figures of 279 to 397 kW from four- to six-cylinders of 3,908 to 12,777 cm³, unladen weights from 4,630 to 62,700 kg, gross weights from 5,550 to 64,000 kg and widths from 2,090 to 3,000 mm.
Terberg is the world market leader in terminal tractors for ports and logistics centres and additionally supplies airports, mining operations and heavy-haulage firms with special chassis built on components from Volvo, DAF, Scania or Cummins; the high unladen weight of some versions comes from ballasting for maximum drawbar pull at low speed.
On used terminal tractors, operating hours and the condition of the fifth-wheel lifting device count, on heavy-haulage tractors the frame, transfer case and axles, and generally the engine and gearbox condition of the bought-in drivetrain components; parts run through Terberg itself and the respective engine and gearbox makers.
Sources: SpecCodex register, model data: Terberg (weitere Modelle), Terberg (manufacturer)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| FM1850- T | 1999-2012 | 294 | — | Official register |
| ● FM1850-T | 1999–2002 | 294 | — | Official register |
Technical data
Engine
| Power | 294 kWcorrect |
|---|---|
| Displacement | 12,100 cm³correct |
Dimensions and weights
| Length | 9,285 mmcorrect |
|---|---|
| Width | 2,545 mmcorrect |
| Unladen weight | 22,925 kgcorrect |
| Gross vehicle weight | 48,500 kgcorrect |
Frequently asked questions
How much power does the Terberg FM1850-T have?
The Terberg FM1850-T delivers 294 kW.
How much does the Terberg FM1850-T weigh?
The unladen weight is 22,925 kg.
What is the gross vehicle weight of the Terberg FM1850-T?
48,500 kg.
What engine does the Terberg FM1850-T have?
12,100 cm³ displacement.
What are the dimensions of the Terberg FM1850-T?
9,285 mm × 2,545 mm.
When was the Terberg FM1850-T built?
Production years: 1999–2002.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 7 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
