Zemmler Massen MS 1000-034
Built: 2022 · Series: Other models
More machines from model year 2022
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Zemmler Massen – other models: the collective page for the MS 1000 and MS1600 trommel screens outside the named series, mobile screening plants rated at 1,900 to 7,200 kg gross weight

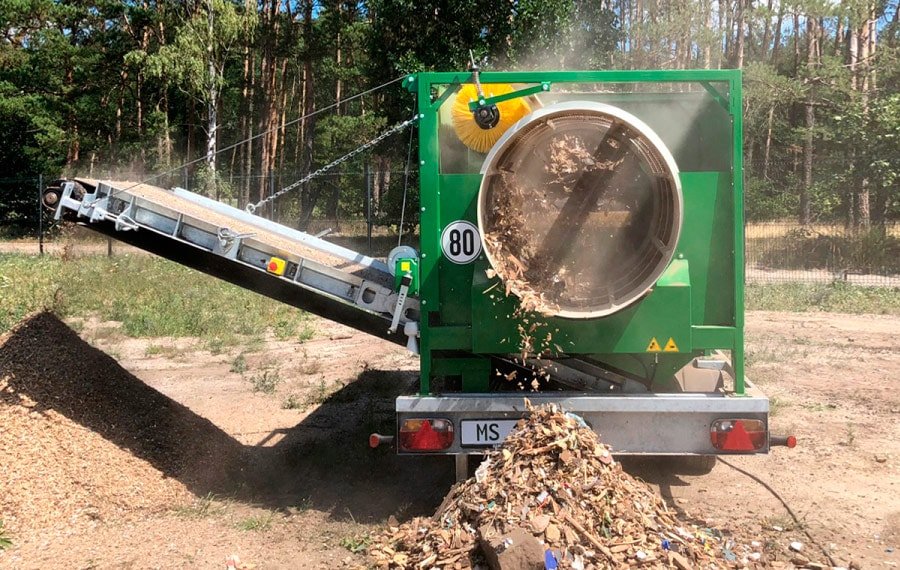

This page gathers Zemmler Massen models not assigned to a named series – mobile trommel screening plants of the MS 1000 and MS 1600 series throughout, as the model names Trommelsiebanlage (German for drum screening plant), Trommelzeef (the Dutch equivalent) and Multiscreen MS 1000 show directly. The number after MS 1000 marks individual build variants and model years of the same base machine, while MS 1600 denotes the larger screening drum of the series.
Read on 3 more paragraphs
The register lists 18 versions here with unladen weights from 1,640 to 7,170 kg and gross weights from 1,900 to 7,200 kg. Lengths range from 4,860 to 8,780 mm, widths from 1,760 to 2,420 mm.
Unlike ordinary load trailers, these chassis carry the screening technology itself: drive, drum and discharge belts are permanently mounted on the chassis, which is why unladen weight and gross weight sit close together on many versions. Such mobile screening plants work in composting, earthmoving and recycling, where material needs to be graded on site rather than hauled to a stationary plant.
When buying used, assess the condition of the screening drum and its rubber suspension, wear on the discharge belts and drive chains, the hydraulics for folding and support functions, and the frame and axles of the transport chassis. Drive-engine hours and corrosion at the material discharge point also belong on the checklist; screen and wear parts are usually supplied by the manufacturer itself.
Sources: Kennwerte der Modelle Zemmler Massen (weitere Modelle)
Technical data
Dimensions and weights
| Width | 1,950 mmcorrect |
|---|---|
| Wheelbase | 3,590 mmcorrect |
| Unladen weight | 1,740 kgcorrect |
| Gross vehicle weight | 2,100 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Zemmler Massen MS 1000-034 weigh?
The unladen weight is 1,740 kg.
What is the gross vehicle weight of the Zemmler Massen MS 1000-034?
2,100 kg.
Up to what speed is the Zemmler Massen MS 1000-034 approved?
Approved up to 100 km/h.
When was the Zemmler Massen MS 1000-034 built?
Production years: 2022.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
