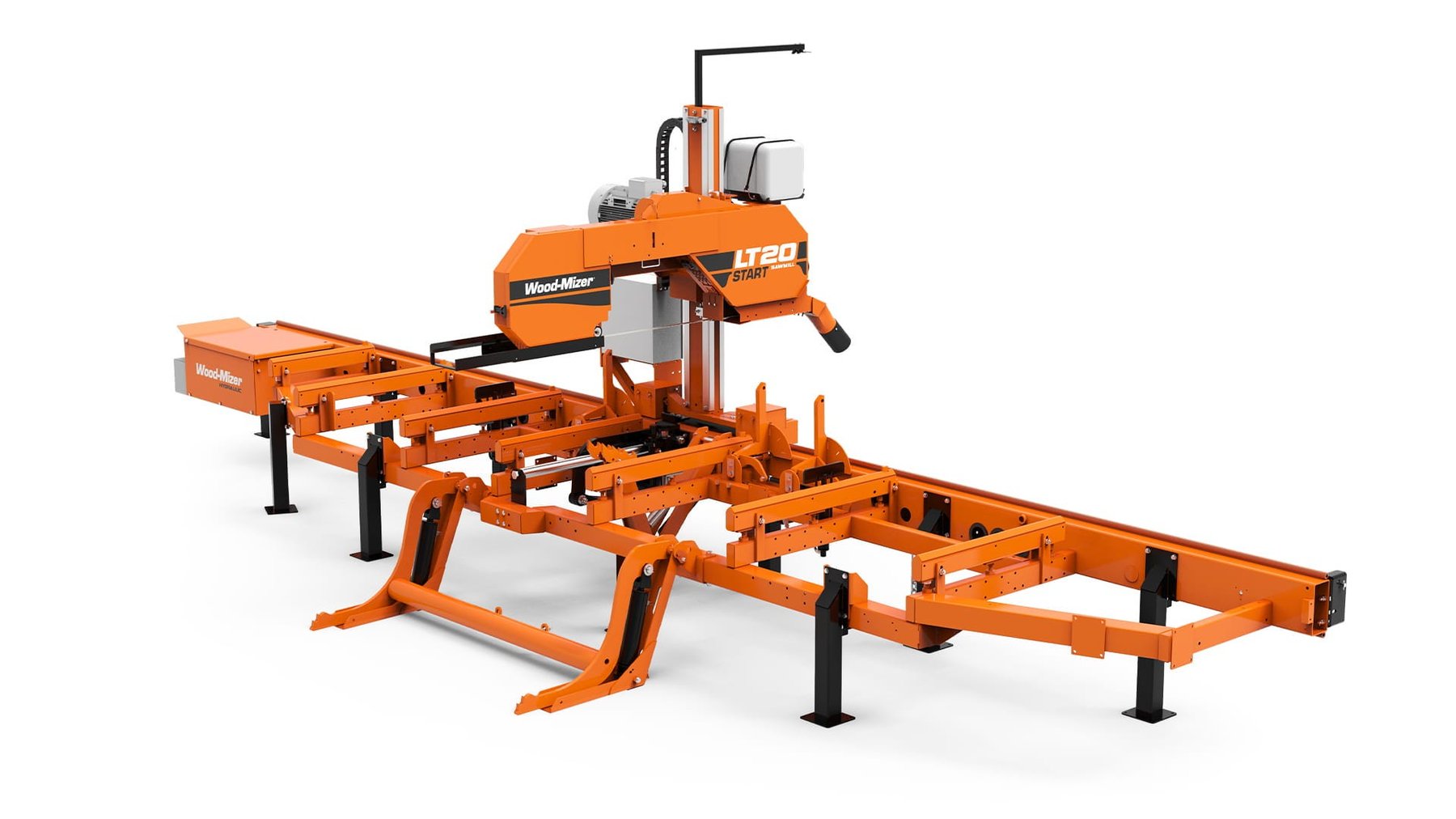

Wood Mizer LT20MD22SDH3
Built: 2017 · Series: Other models
More machines from model year 2017
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Wood-Mizer Trailers – other models: the collective page for portable sawmills on trailer chassis outside the LT15 to LT70 series, 1,164 to 3,238 kg unladen weight, up to 3,500 kg gross weight
This page gathers sawmill trailers from the American brand Wood-Mizer that are not assigned to any of the register's named series. Wood-Mizer builds portable band sawmills permanently mounted on a trailer chassis, allowing them to operate directly at the logging site or at a customer's premises. The type names LT15, LT20, LT40 and LT70 denote ascending sizes of the sawmill unit, supplemented by codes for head variant and extra equipment such as MD, ME or HD and the blade length in inches.
Read on 3 more paragraphs
The register lists 31 versions with an unladen weight of 1,164 to 3,238 kg and a gross weight of 1,300 to 3,500 kg. Widths range from 1,950 to 2,430 mm and lengths from 8,350 to 8,780 mm.
Trailer-mounted sawmills of this kind are used by forestry operations, sawmills and independent contract sawyers who cut logs into lumber directly on site rather than hauling them to a stationary mill. Wood-Mizer is among the best-known makers of portable band sawmills worldwide and competes with other manufacturers of trailer and stationary bandmills.
When buying used, check the saw head rail and guide rollers for wear and alignment, as well as the engine or hydraulic drive, tensioning mechanism and blade condition. The trailer chassis itself needs the usual checks of axle, brakes, tyres and lighting, plus the condition of the outriggers and levelling jacks used when setting up the machine. Spare parts such as blades, guide rollers and drive belts are supplied by Wood-Mizer through its own dealer network.
Sources: Kennwerte der Modelle Wood-Mizer (weitere Modelle), Wood-Mizer
Technical data
Dimensions and weights
| Width | 2,200 mmcorrect |
|---|---|
| Wheelbase | 5,390 mmcorrect |
| Unladen weight | 1,950 kgcorrect |
| Gross vehicle weight | 2,100 kgcorrect |
Drivetrain and chassis
| Top speed | 80 km/hcorrect |
|---|
Frequently asked questions
How much does the Wood Mizer LT20MD22SDH3 weigh?
The unladen weight is 1,950 kg.
What is the gross vehicle weight of the Wood Mizer LT20MD22SDH3?
2,100 kg.
Up to what speed is the Wood Mizer LT20MD22SDH3 approved?
Approved up to 80 km/h.
When was the Wood Mizer LT20MD22SDH3 built?
Production years: 2017.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
