Tiger Trailers LTD – specifications

Built: 2015 · Series: Other models

Data for the version built 2015 · Data origin: Official register · sources

More machines from model year 2015

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

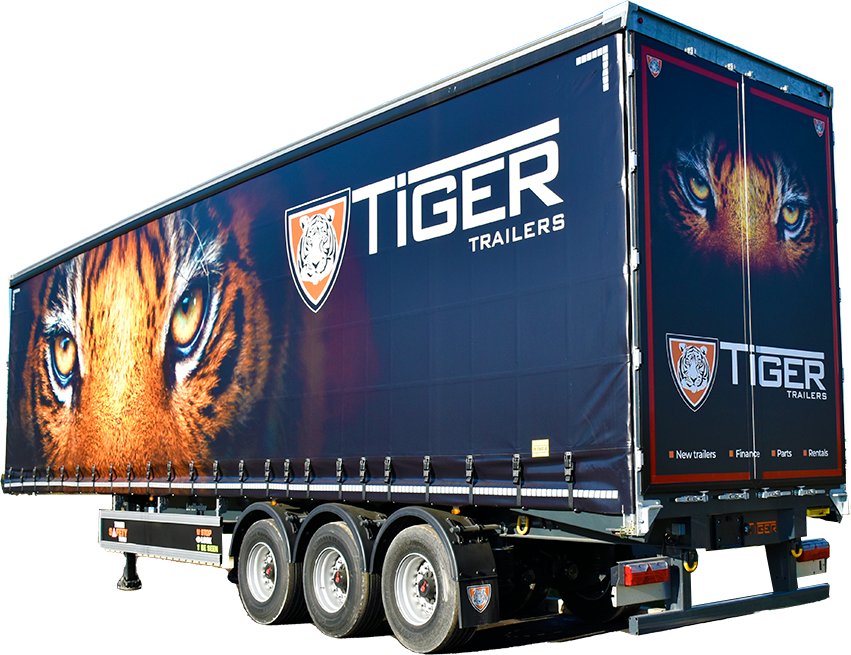

TIGER TRAILERS LTD comes from the manufacturer Tiger Trailers. According to the available register data, the vehicle dates from 2015. The trailer is 13,700 mm long and 2,550 mm wide. Its kerb weight comes to 10,960 kg. The permitted gross weight is 39,000 kg. The wheelbase measures 9,110 mm. Top speed is 100 km/h. It runs on 12 wheels. The Dutch vehicle register lists 2 examples of this model.

Tiger Trailers – British semi-trailers from Winsford: unladen weights from 6,520 to 10,960 kg, gross weights from 29,000 to 39,000 kg, length around 13,600 mm

Tiger Trailers, based in Winsford, Cheshire, builds semi-trailers for the British haulage market. This page gathers the versions the register could not assign to a named range, including the three-axle Tri Axle Semi Trailer and the TTF12S.

Read on 3 more paragraphs

The register lists here 4 versions with unladen weights from 6,520 to 10,960 kg, gross weights from 29,000 to 39,000 kg and lengths from 13,600 to 13,700 mm at a constant width of 2,550 mm.

At a length of around 13.6 metres and gross weights of up to 39 tonnes, these semi-trailers match the standard size for tri-axle long-haul semi-trailers common in Britain and the EU; the span of unladen weights runs from lighter curtainsider to heavier box bodies. The British market differs little here from the EU norm, as these vehicles are also frequently used cross-border in Channel traffic.

On a used semi-trailer of this size, the frame and main beams, the condition of the axles and braking system, the kingpin and landing legs count, and on curtainsiders additionally the curtain and load straps, on box trailers the seals and the load-bed floor; spare parts run through the British commercial-vehicle parts network. When checking the papers, it is also worth comparing axle load, trailer class and registration date with the vehicle's actual condition, especially on older or heavily used examples.

Sources: SpecCodex register, model data: Tiger Trailers (weitere Modelle), Tiger Trailers (manufacturer)

Technical data

Dimensions and weights

Length13,700 mmcorrect
Width2,550 mmcorrect
Coupling-to-axle distance9,110 mmcorrect
Unladen weight10,960 kgcorrect
Gross vehicle weight39,000 kgcorrect

Drivetrain and chassis

Wheels12correct
Top speed100 km/hcorrect

Frequently asked questions

How much does the Tiger Trailers LTD weigh?

The unladen weight is 10,960 kg.

What is the gross vehicle weight of the Tiger Trailers LTD?

39,000 kg.

Up to what speed is the Tiger Trailers LTD approved?

Approved up to 100 km/h.

What are the dimensions of the Tiger Trailers LTD?

13,700 mm × 2,550 mm.

When was the Tiger Trailers LTD built?

Production years: 2015.

What to check before buying

  • Search the frame and welds at the axle mounts — that is where cracks start.
  • Check the brakes and the last inspection in the papers.
  • Work the gross weight against the towing vehicle before buying.
  • Compare the chassis number with the papers.
  • Look at the floor, cover or body from the inside — rust does not show from outside.

A general list for this type of machine — no substitute for an inspection or an appraiser.
