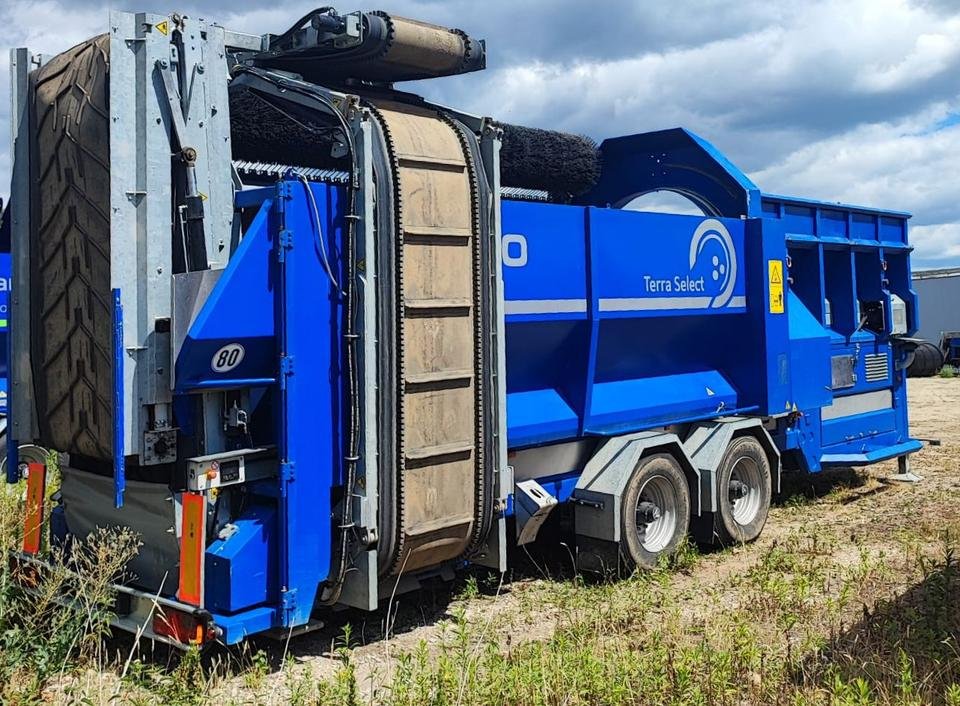

Terra Select - – specifications

Built: 2020–2021 · Series: Other models

Terra Select builds this trailer. According to the available register data, the recorded vehicles date from 2020 to 2021. Dimensions: 11,950 mm long and 2,550 mm wide. Its kerb weight comes to 18,680 kg. Fully loaded, it may not exceed 19,000 kg. Axle to axle, the wheelbase is 7,650 mm. It reaches up to 100 km/h. It runs on 4 wheels. According to the Dutch vehicle register, 2 examples of this model are on record.

Data for the version built 2020–2021 · Data origin: Official register · sources

More machines from model year 2020

Terra Select – other models: the collective page of trailers outside the named ranges, T4 to T7 and the TE and Star Select versions, 10,850 to 24,280 kg unladen weight, 12,000 to 25,000 kg gross weight

This page gathers the Terra Select trailers the register could not assign to a named range. The type scheme runs from T4 to T7 through the TE50 and TE60 versions to the Star Select S60 model; the letter T followed by a number forms the consistent base pattern of the range.

Read on 4 more paragraphs

The register lists here 16 versions with unladen weights from 10,850 to 24,280 kg, gross weights from 12,000 to 25,000 kg, lengths from 10,020 to 13,670 mm and widths from 2,550 to 2,950 mm.

Striking is the small difference between unladen weight and gross weight: on most models only around one to two tonnes of margin remains, markedly less than on classic transport trailers of the same size. This is typical of mobile working equipment, where the chassis itself counts towards the payload and takes on hardly any additional cargo.

With gross weights mostly above 10 tonnes, these trailers fall into EU class O4 and need an air brake system as well as driving licence category CE for towing; the connection to the carrier vehicle is usually made through a ring-type drawbar coupling rather than a fifth wheel, since these are towed working machines rather than classic semi-trailers.

On a used example of such a trailer, the condition of axles, braking system and chassis under the high self-load counts above all, rust on load-bearing parts, the condition of the drawbar and support leg, and the tyres relative to the actual axle load; spare parts in this vehicle class usually run through specialist suppliers.

Sources: SpecCodex register, model data: Terra Select

Technical data

Dimensions and weights

Length11,950 mmcorrect
Width2,550 mmcorrect
Coupling-to-axle distance7,650 mmcorrect
Unladen weight18,680 kgcorrect
Gross vehicle weight19,000 kgcorrect

Drivetrain and chassis

Wheels4correct
Top speed100 km/hcorrect

Frequently asked questions

How much does the Terra Select - weigh?

The unladen weight of the Terra Select - is 18,680 kg.

What is the gross vehicle weight of the Terra Select -?

The gross vehicle weight of the Terra Select - is 19,000 kg.

Up to what speed is the Terra Select - approved?

The Terra Select - is approved up to 100 km/h.

What are the dimensions of the Terra Select -?

Dimensions of the Terra Select -: length 11,950 mm, width 2,550 mm.

When was the Terra Select - built?

The Terra Select - was built from 2020 to 2021.

What to check before buying

  • Search the frame and welds at the axle mounts — that is where cracks start.
  • Check the brakes and the last inspection in the papers.
  • Work the gross weight against the towing vehicle before buying.
  • Compare the chassis number with the papers.
  • Look at the floor, cover or body from the inside — rust does not show from outside.

A general list for this type of machine — no substitute for an inspection or an appraiser.
