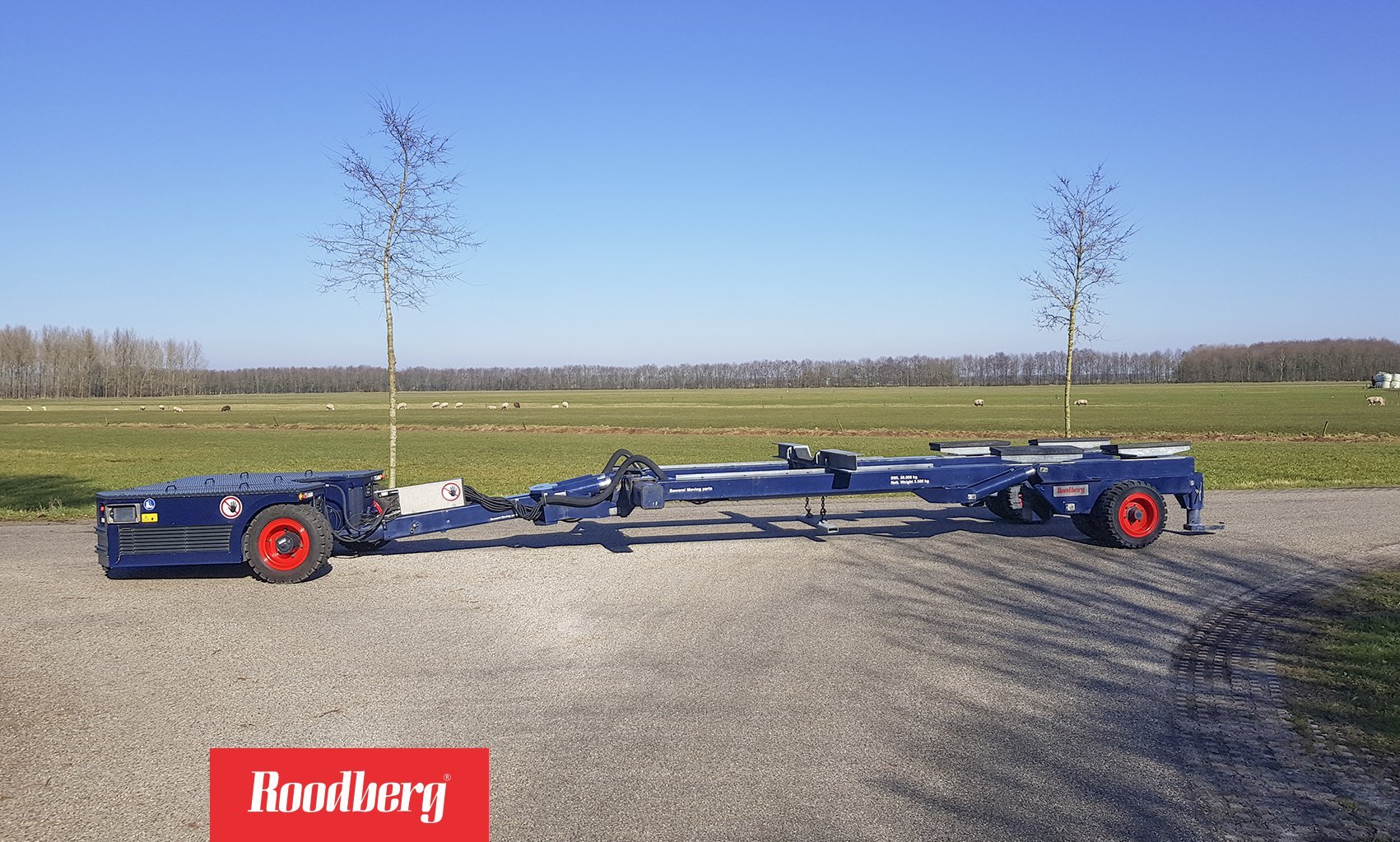

Roodberg 1502 – specifications

Built: 2010–2015 · Series: Other models

1502 comes from the manufacturer Roodberg. According to the available register data, the recorded vehicles date from 2010 to 2015. The trailer is 21,750 mm long and 2,770 mm wide. Its kerb weight comes to 77,620 kg. Fully loaded, it may not exceed 78,000 kg. Top speed is 100 km/h. The Dutch vehicle register lists 6 examples of this model.

Data for the version built 2010–2015 · Data origin: Official register · sources

More machines from model year 2010

Source: roodberg.de

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Roodberg – other models: the collective page of trailers outside the named ranges, from the MCS series to the SDL 3 and TURBINE, 2,380 to 77,620 kg unladen weight, up to 78,000 kg gross weight

This page gathers the Roodberg trailers the register could not assign to a named range. The type designations range from the MCS4030 and MCS4536 versions with several numberings (TRAILER 1 to 3, T1 to T3) through ODL 16 20 and SDL 3 to individual models such as FURIOSO, NORMAG NRC 750 T and TURBINE.

Read on 3 more paragraphs

The register lists here 17 versions with unladen weights from 2,380 to 77,620 kg and gross weights from 3,000 to 78,000 kg. Lengths range from 13,940 to 21,820 mm, widths from 2,400 to 2,840 mm.

The span runs from class O2 trailers to extremely heavy special transporters far above class O4 – long, multi-axle versions of the kind used for construction machinery, mobile plant and other bulky heavy loads. Such a wide spectrum from light to extremely heavy versions under one brand name is not unusual among smaller trailer builders who build one-off jobs for customers alongside series production.

On used trailers of this kind, the condition and play of the axles, the brake system across the whole length, cracks in the frame and ramps and hydraulic cylinders and lines particularly count on the heavy, long versions; on the lighter models, the drawbar, overrun brake and rust on the frame count. Spares are usually supplied by workshops specialising in heavy transport. Comparing the chassis number with the vehicle papers is also important, since conversions and special builds occur more often in such widely spread ranges.

Sources: SpecCodex register, model data: Roodberg (weitere Modelle)

Technical data

Dimensions and weights

Length21,750 mmcorrect
Width2,770 mmcorrect
Coupling-to-axle distance16,080 mmcorrect
Gross vehicle weight78,000 kgcorrect

Drivetrain and chassis

Top speed100 km/hcorrect

Frequently asked questions

What is the gross vehicle weight of the Roodberg 1502?

The gross vehicle weight of the Roodberg 1502 is 78,000 kg.

Up to what speed is the Roodberg 1502 approved?

The Roodberg 1502 is approved up to 100 km/h.

What are the dimensions of the Roodberg 1502?

Dimensions of the Roodberg 1502: length 21,750 mm, width 2,770 mm.

When was the Roodberg 1502 built?

The Roodberg 1502 was built from 2010 to 2015.

What to check before buying

  • Search the frame and welds at the axle mounts — that is where cracks start.
  • Check the brakes and the last inspection in the papers.
  • Work the gross weight against the towing vehicle before buying.
  • Compare the chassis number with the papers.
  • Look at the floor, cover or body from the inside — rust does not show from outside.

A general list for this type of machine — no substitute for an inspection or an appraiser.
